43984801TH Rev.1

61 /

Oki Data CONFIDENTIAL

3. Parts replacement

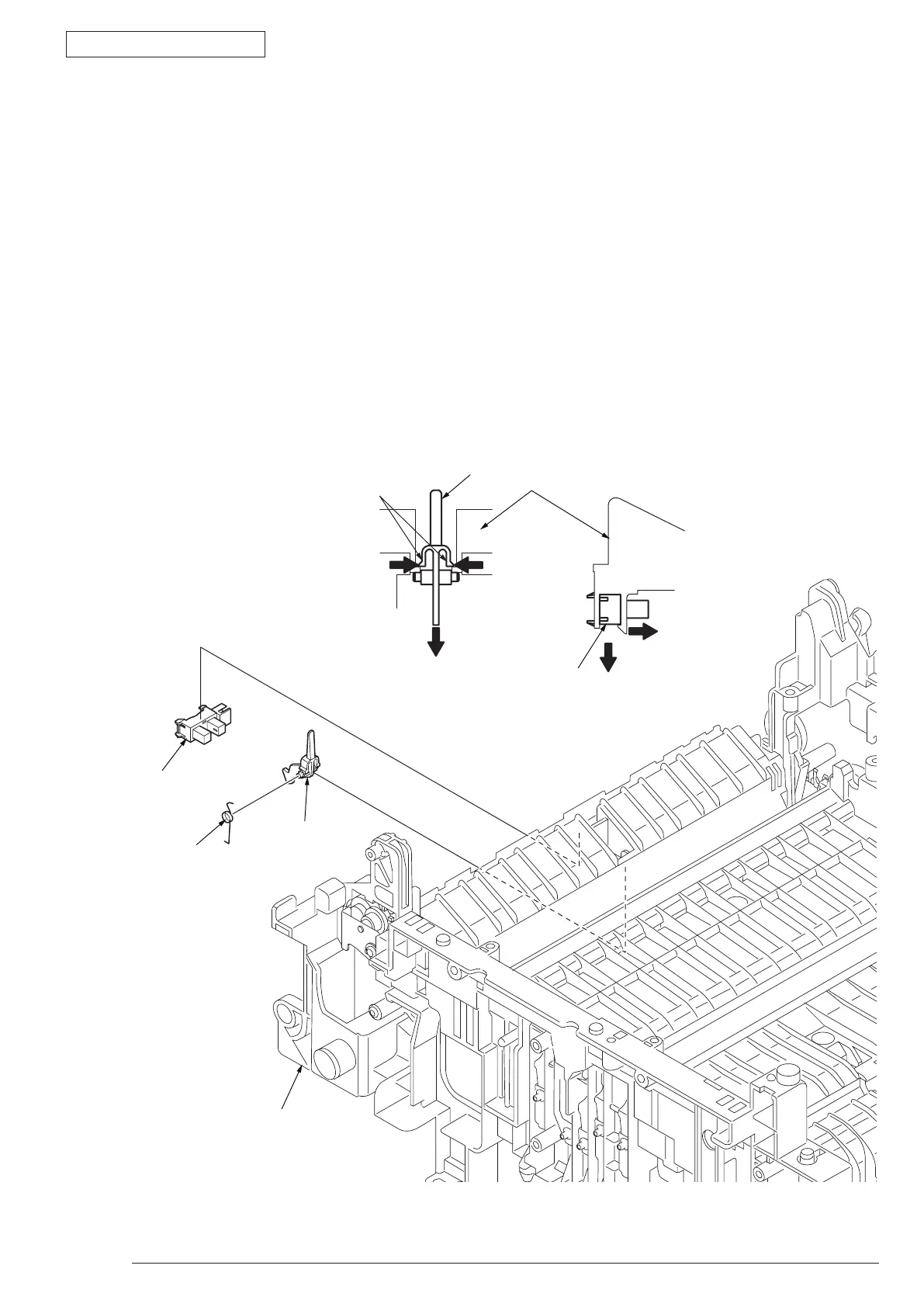

3.2.22 Lever-Eject-Sensor/Photo-Interrupter

(1) Open Rear-Cover-Assy.

(2) Open Stacker-Cover-Assy.

(3) Remove Frame-Assy-Lower. (Refer to 3.3.16)

(4) Press the clamp of Lever-Eject-Sensor

（

Exit

）❶

. Press Lever-Eject-Sensor

❶

as down direction and

remove it. While remove Lever-Eject-Sensor

❶

, beware of not to loss or break Spring-SNS

❷

(5) P

ress the claw of Frame-Assy-Lower as the arrow direction. Remove Photo-Interrupter

③

by down

direction.

) Installing is performed by the inverse procedure with removing.

(Note on removing / installing)

1. B

eware of not to touch the DC motor inattentively (Do not rotate motor).

❷

❶

③

❶

Frame-Assy-Lower

Clamp
