3. Parts replacement

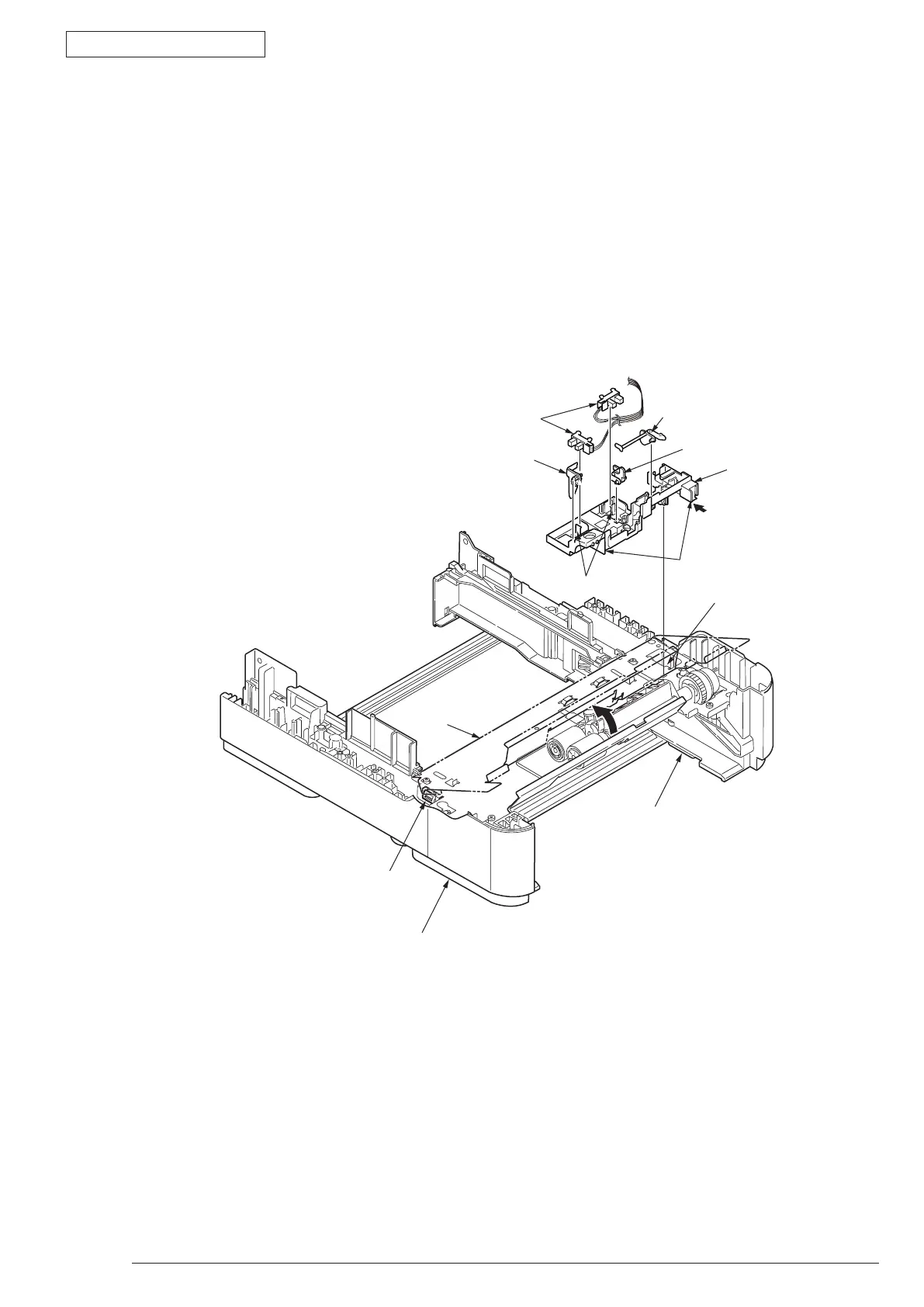

3.3.23 Lever-End/Lever-Duplex/Lever-Cassette/Gear-Assy-Clatch
(1) Remove Frame-Assy-Lower and PCB-Assy.
(2) Press claw
Ⓐ
by the arrow direction. Remove Holder-SNS
①．
(3) P
ress the clamp of Lever-End
②
by the up direction and then remove it.
(4) P
ress the clamp of Lever-Duplex
③
by the up direction and then remove it.
(5) P
ress the clamp of Lever-Cassette
④
by the up direction and then remove it.
(6) O
pen claw
Ⓑ
and remove Photo-Interrupter
❺．
(7) H
old up Plate-Base-Assy
⑥
from the claw of Guide-Cassette-L, Guide-Cassette-R and remove Plate-
Base-Assy
⑥
.
Claw B
Claw A
Claw
Claw
①
③
❺
②
④
⑥
Guide-Cassette-R
Guide-Cassette-L
