43984801TH Rev.1
32 /
Oki Data CONFIDENTIAL
3. Parts replacement
3.2 Parts layout
This section explains the main parts layout of the equipment.

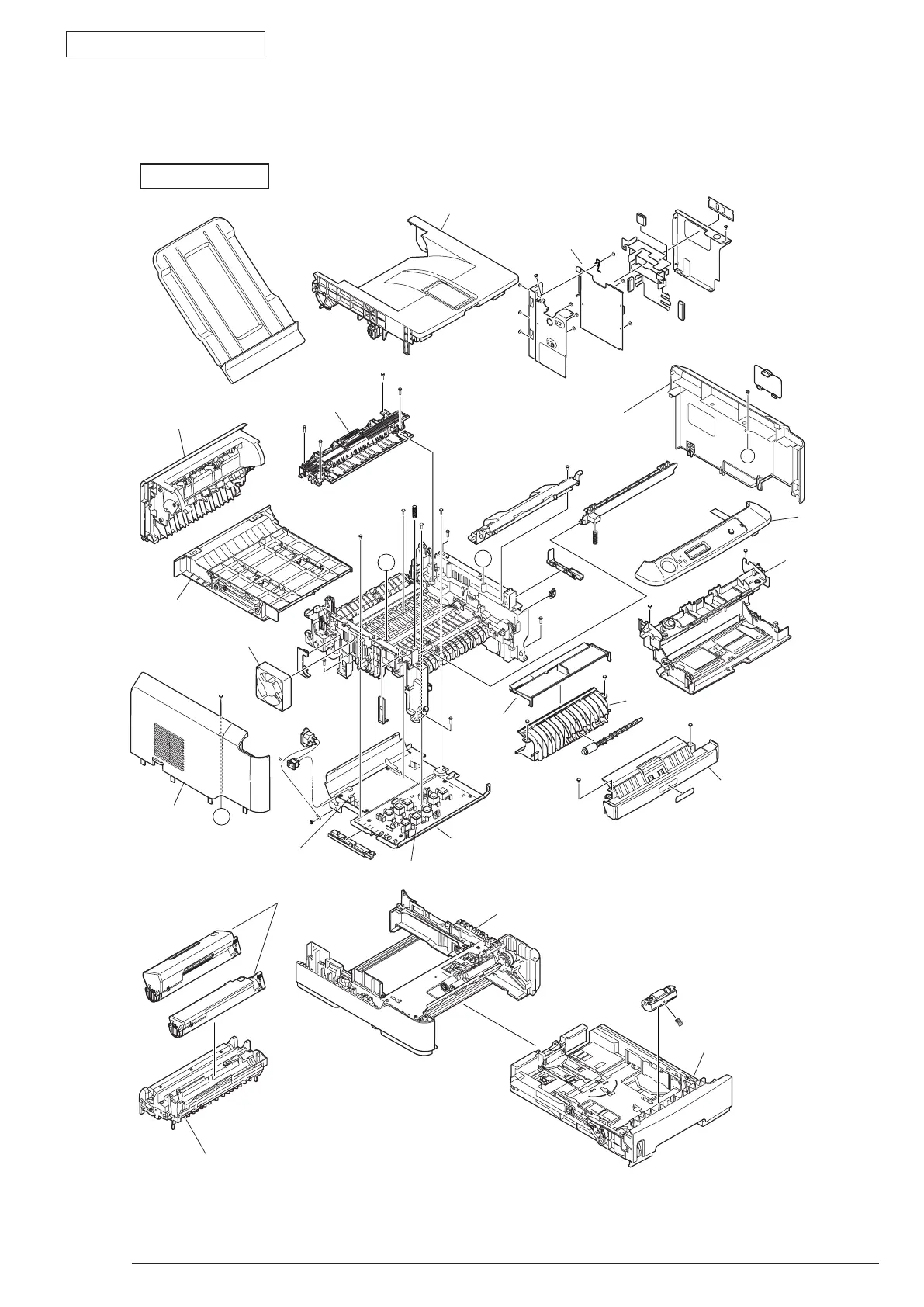

Figure 3-1
A
A
A’
A’
Stacker-Cover-Assy
Cover-Side-R
Cover-Side-L
Plate-Base-PCB
Plate-Assy-Base
Motor-Fan
Duplex
Rear-Cover-Assy
Fuser-Assy
OPE Cover-Assy
Guide-Paper-Duplex
Guide-
Paper-R
Manual-Assy
Front-Guide-Assy
CU board
Toner cartridge
Low voltage
power board
High voltage
power board
Paper cassette
Image drum cartridge
B410d/B410dn
