43984801TH Rev.1
39 /
Oki Data CONFIDENTIAL
3. Parts replacement

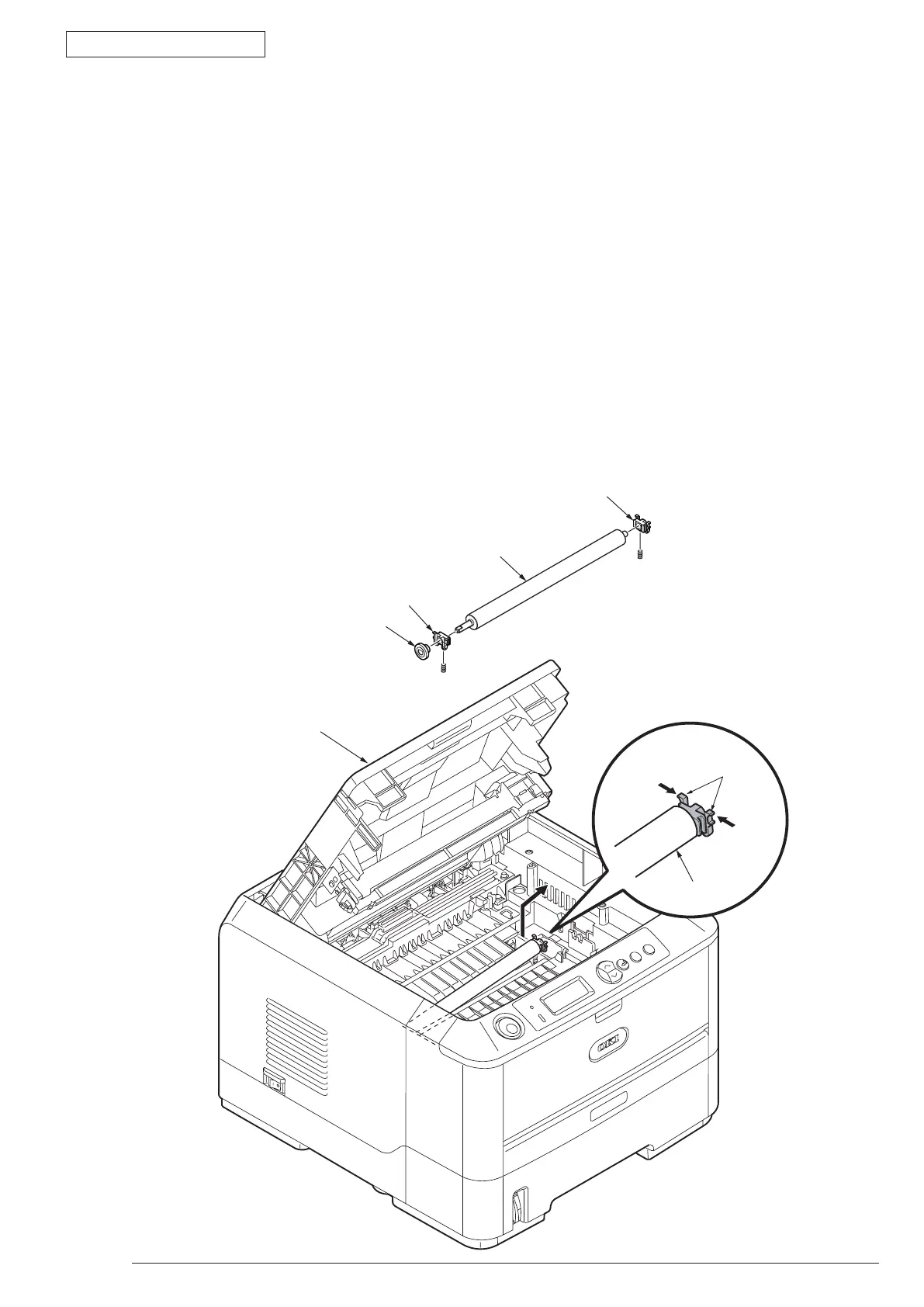

3.3.2 Roller-Transfer
(1) As the power switch shut off, unplug the AC power cord from the inlet of main unit.
(2) Open the Stack-Cover –Assy
(3) Remove latches in the 2 places of Gear-TR
③
and Bearing-TR
❶
on the conversing side. (Do not add
any unnecessary pressure while removing the latch.)
(4) S
lightly slide the Roller-transfer
❷
to the right side and remove the post on the top of gear from the
contact of Frame-Assy-Lower. Remove the latches on the 2 places of Gearing-TR
❶
of Gear.
(5) H
old the Bearing-TR
❶
on the both side, and then lift up the Roller-Transfer
❷
. (At this moment, Gear-
TR
③
is also removed.)
(6) I
nstalling is performed by the inverse procedure with removing.
(Note on removing / installing)
1. B
eware of not to touch the DC motor inattentively (Do not rotate motor).
2. While installing, pay attention to the up-and-down direction of Bearing-TR
❶．
3. O
perating carefully, not to touch Roller-Transfer
❷
surface.
Stacker-Cover-Assy
Latch
③
❶
②
❷
❶
To Next Page
