43984801TH Rev.1
47 /
Oki Data CONFIDENTIAL
3. Parts replacement

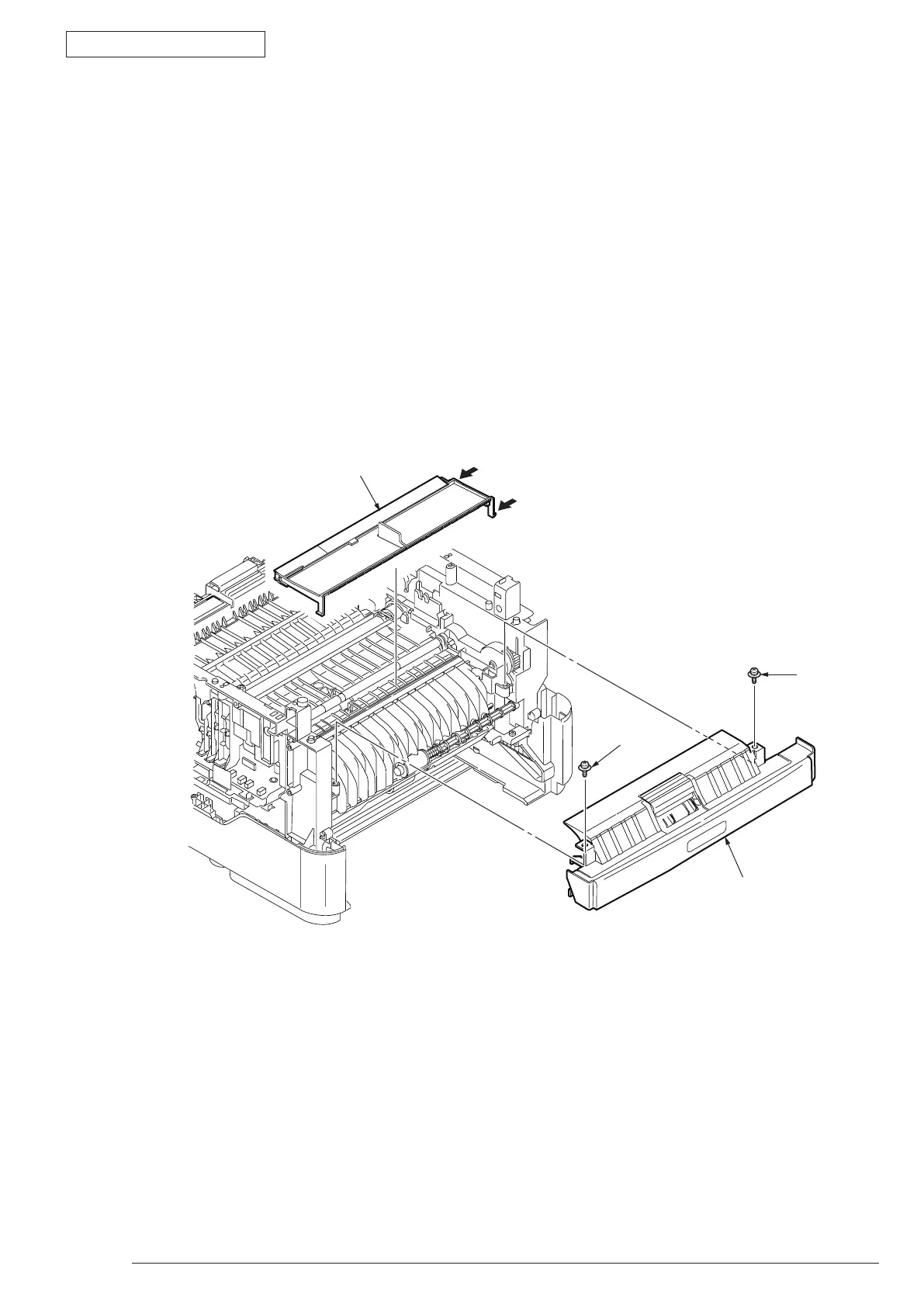

3.3.10 Front-Guide-Assy
(1) Open Rear-Cover-Assy.
(2) Open Stacker-Cover-Assy.
(3) Remove Cover-Side-R and Cover-Side-L. (Refer to 3.3.3/3.3.4)
(4) Remove OPE Cover-Assy. (Refer to 3.3.7)
(5) Remove MPT-Assy. (Refer to 3.3.9)
(6) Remove the clamp of claw by pushing by arrow direction, and then remove Cover-Paper-R
①
.
(7) R
emove the 2 screws (Black)
②
. Remove Front-Guide-Assy
③
.
(8) I
nstalling is performed by the inverse procedure with removing.
(Note on removing / installing)
1. B
eware of not to touch the DC motor inattentively (Do not rotate motor).
To Next Page
