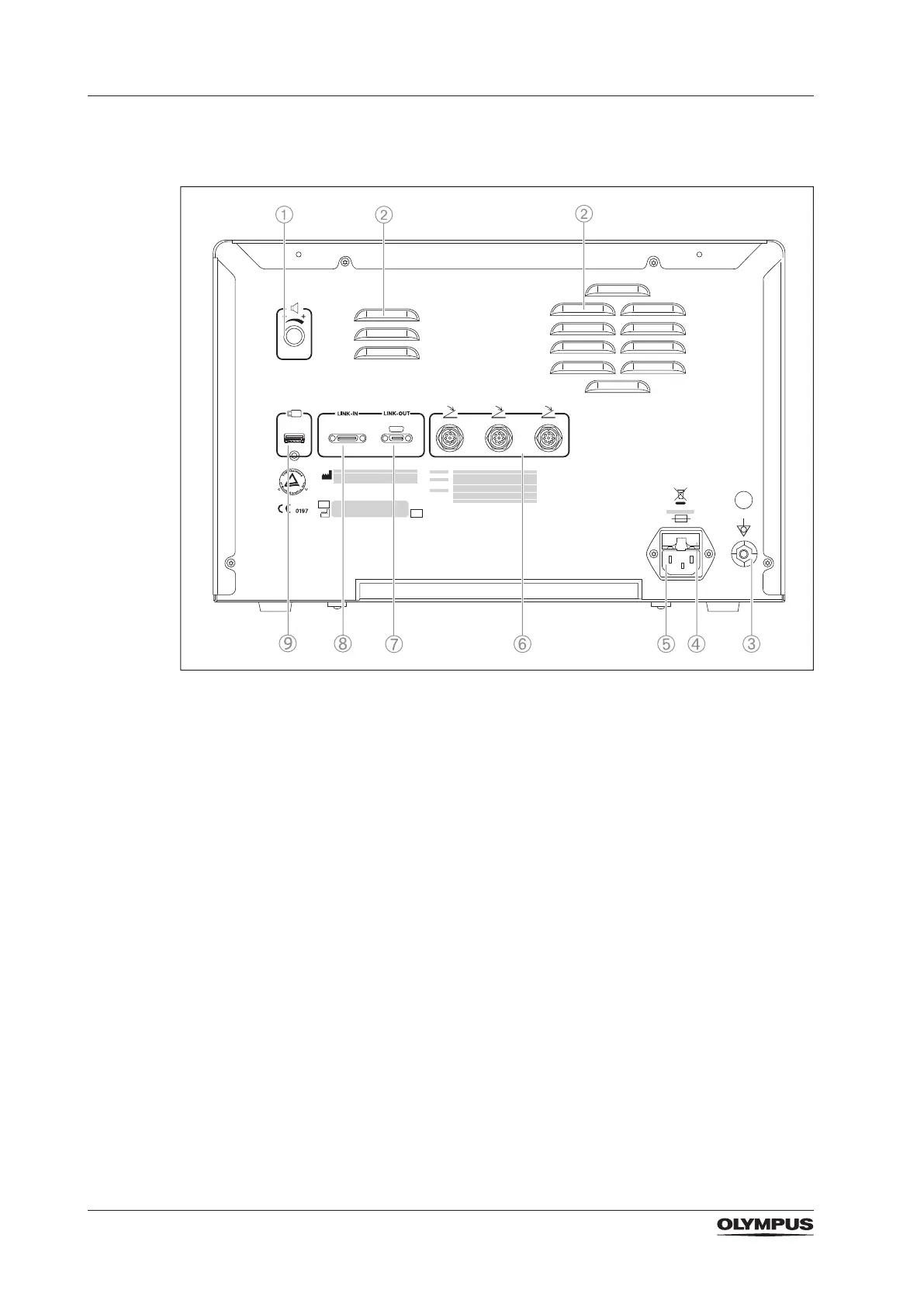

3.3.2 Rear panel
1) Volume control
To adjust the volume of the activation tone.
2) Ventilation slots
3) Potential equalization connector
To increase electrical safety by potential equalization
4) Fuse holder
Compartment for the replaceable fuses.
5) Power socket
To connect the ESG-410 to the mains electricity.
6) Foot switch sockets
To connect a compatible foot switch.
7) LINK-OUT socket
To connect a communication cable for peripheral equipment with a 14-pin plug.
8) LINK-IN socket
To connect a communication cable for peripheral equipment with a 26-pin plug.
9) USB socket
To connect a USB ash drive.
3.4 Operating elements on the touchscreen
The control buttons on the touchscreen are activated by tapping the corresponding part
on the screen with the nger tip. The home screen displays the selected settings for the
different output sockets. When tapping the pane for one of the output sockets the display
changes to the set screen.
