Chapter 5 Operation
109
VISERA VIDEO SYSTEM CENTER OTV-S7V
5.12 Remote control switches
The OTV-S7V’s functions can be controlled by the remote control switches on
the camera head or videoscope. The number of remote control switches
available depend on the camera head or videoscope being used (see Table 5.2).
Table 5.2
Remote control switches can be set by controlling the menu switches or
keyboard (optional).
1. Depress the menu switch “ ” for approximately 1 second or the “F1” key
on the keyboard to display the menu.
2. Depress the menu switches “ ” or “ ”, or the “///” key on the
keyboard to move the arrow “ ” to “SWITCH ASSIGNMENT” (see Figure
5.58).

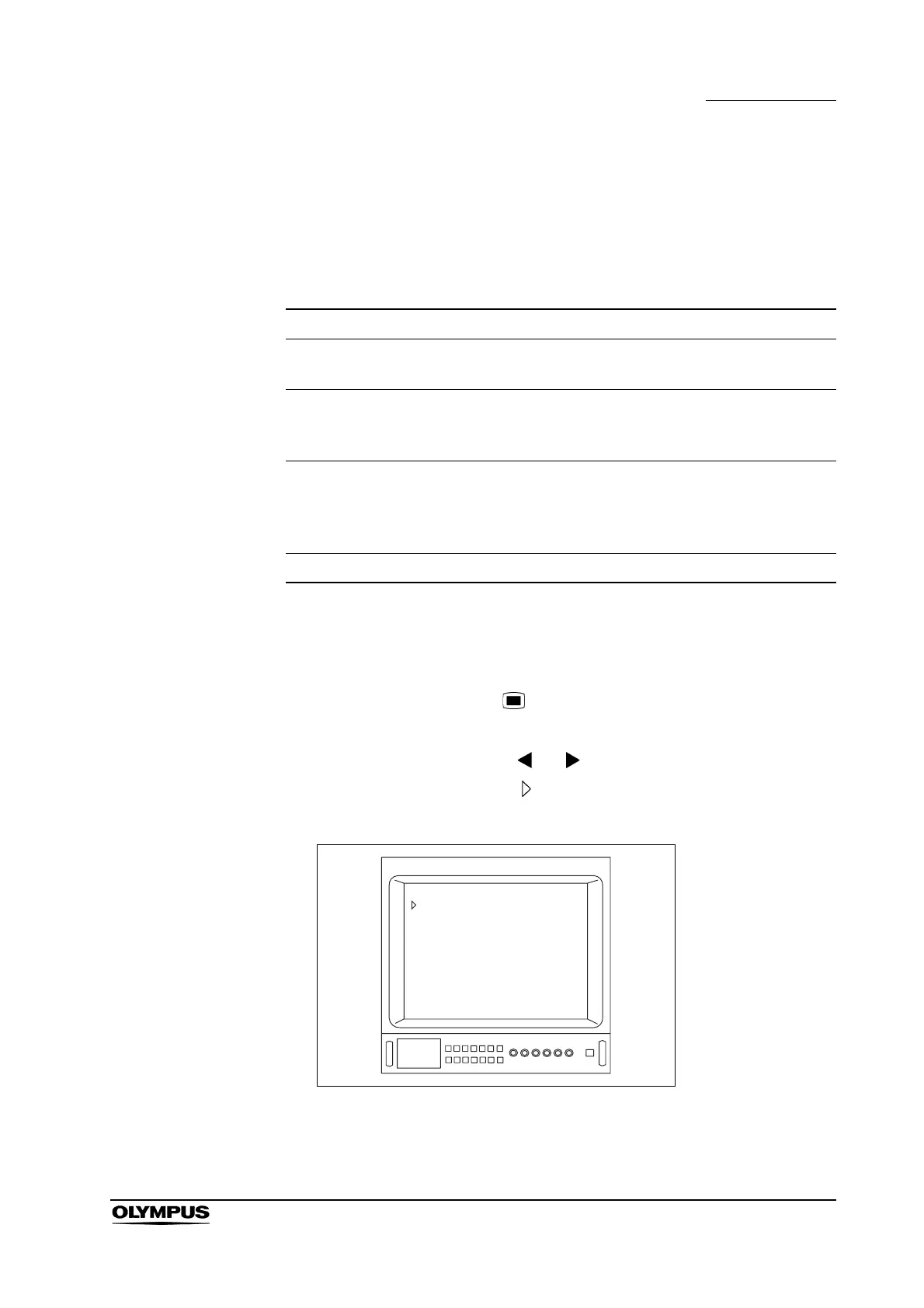

Figure 5.58
The number of remote control switches Camera head/videoscope models
0 OTV-S7H-1D-F08E, OTV-S7H-1D-L08E,
OTV-S7H-D-L08E
2 OTV-S7H-N, OTV-S7H-1N, OTV-S7H-1D,
OTV-S7H-NA, OTV-S7H-1NA, A500**A
series
3 OTV-S7H-NA-10E, OTV-S7H-1NA-10E,
OTV-S7H-NA-12E, OTV-S7H-1NA-12E,
OTV-S7H-NA-10Q, OTV-S7H-NA-12Q,
OTV-S7H-1NA-12Q, LTF-V3
4 ENF-V, CYF-V, CYF-VA, HYF-V
[MENU]
SWITCH ASSIGNMENT >>
FUNCTION CONTROL >>
B.O.D. CONTROL >>
PATIENT ID >>
DATE/TIME >>
PRESET >>
To Next Page
