Chapter 3 Installation and Connection
45
VISERA VIDEO SYSTEM CENTER OTV-S7V
3.10 Connection to the keyboard for OTV-S7V
MAJ-1124 (optional)
• Always turn OFF the OTV-S7V when connecting or
disconnecting the keyboard to or from the OTV-S7V.
Otherwise, the OTV-S7V will not receive input from the
keyboard.
• Keep the HF equipment and ancillary cords as far away as
possible from the keyboard. If placed too close, the OTV-S7V
will not receive input from the keyboard.
1. Turn the OTV-S7V OFF.
2. Connect the keyboard as shown in Figure 3.16.

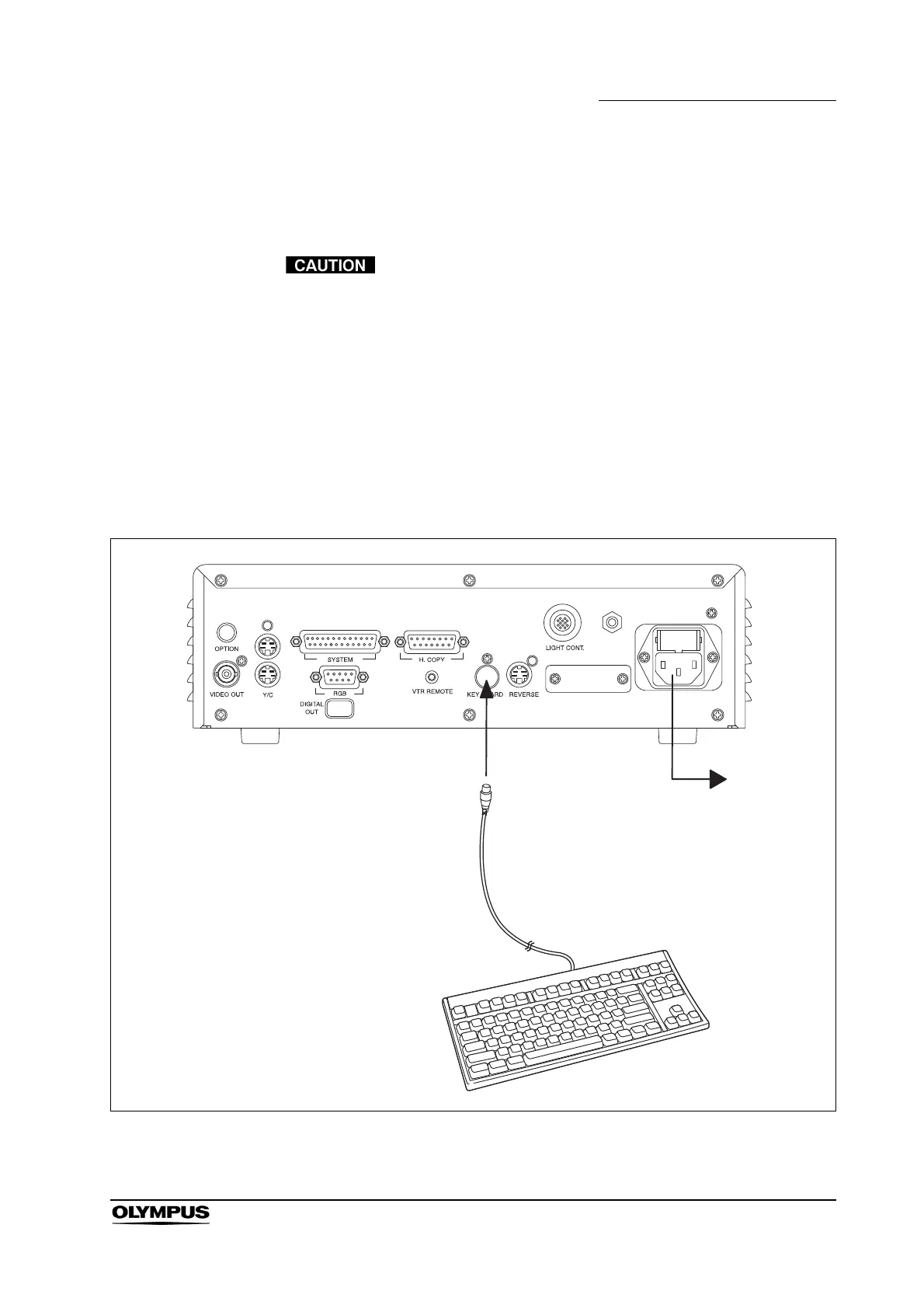

Figure 3.16
OTV-S7V
MAJ-1124
To wall mains outlet
