Chapter 3 Installation and Connection
VISERA VIDEO SYSTEM CENTER OTV-S7V
3.12 Connection to other imaging equipment (type C
only; see Section 2.5)

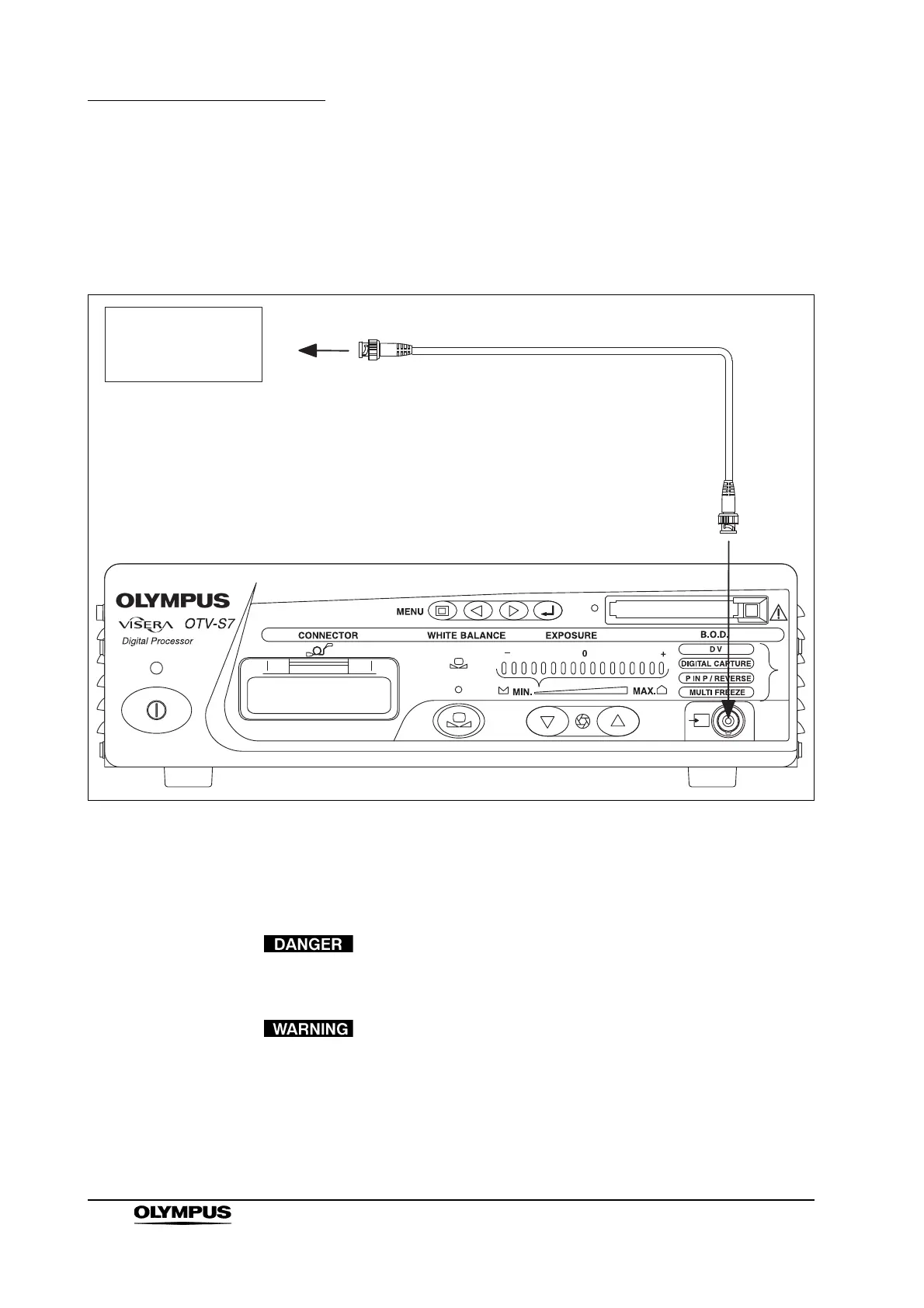

Connect other imaging equipment as shown in Figure 3.23.
Figure 3.23
3.13 Connection to a wall mains outlet
Only connect the OTV-S7V to a wall mains outlet. Failure to
do so may cause electric shock or fire.
• Secure the power cord so that it will not be accidentally
disconnected during the procedure. The endoscopic image
will disappear if the power cord is disconnected during use.
• Do not allow the power cord to become wet. A wet power
cord may cause electric shocks.
OTV-S7V
Output terminal
Ultrasonic
equipment, other
OTV, etc.
BNC cable (MB-677)
