Chapter 3 Installation and Connection
37
VISERA VIDEO SYSTEM CENTER OTV-S7V
3.6 Connection to EVIS monitor photo unit SCV-3
(not available in some countries)
1. Turn the OTV-S7V and SCV-3 OFF.
2. Connect the SCV cable and Y/C cable, BNC cable or RGB cable to the
SCV-3 as shown in Figure 3.8.
For details of connecting the video monitor and the OTV-S7V,
refer to Section 3.3, “Connection to a video monitor”.

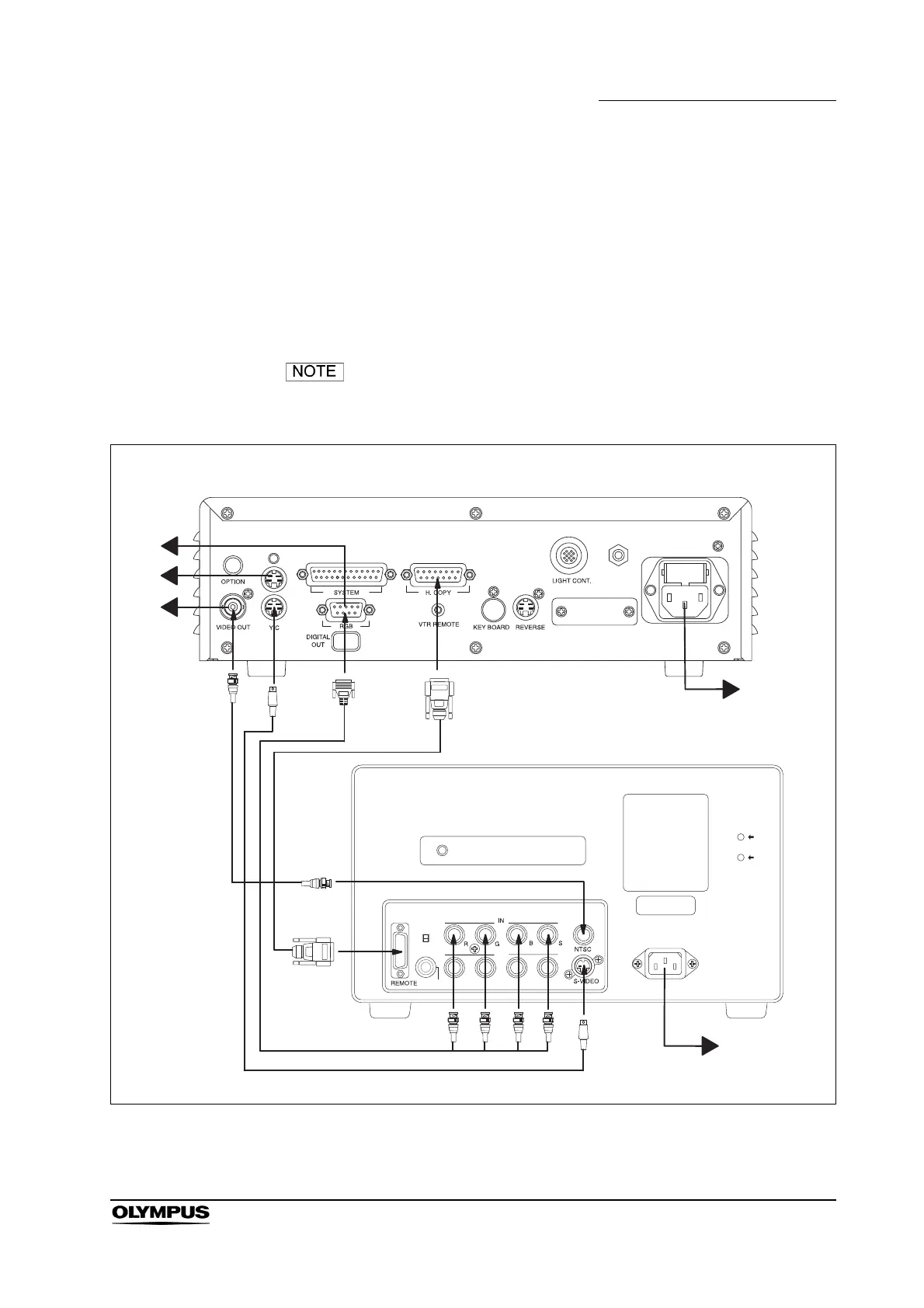

Figure 3.8
SCV-3
RG
B
S
To video
monitor
Y/C cable
(MH-985)
SCV cable (MH-986)
OTV-S7V
RGB cable (MH-984)
To wall mains
outlet
To wall mains
outlet
BNC cable
(MB-677)
