6 How to Use Operation Logs
6-12
NJ/NX-series Database Connection CPU Units User’s Manual (W527)
6-3-4 Starting Recording to Debug Log
You can start recording to the Debug Log by the following methods.
 Online operation from Sysmac Studio
 Executing a DB_ControlService (Control DB Connection Service) instruction
Start by Online Operation from Sysmac Studio

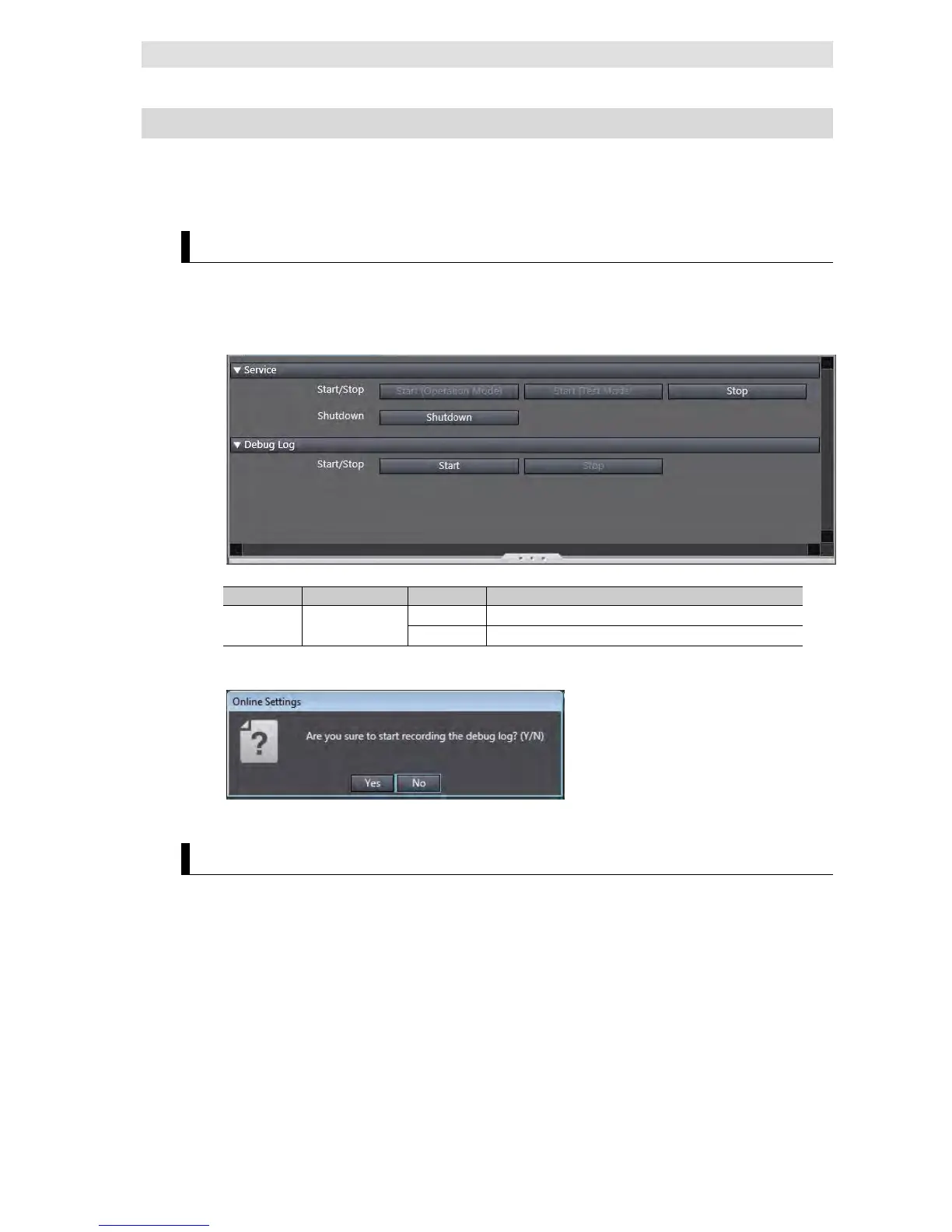

1. Right-click DB Connection Service Settings under Configurations and Setup - Host
Connection Settings - DB Connection in the Multiview Explorer and select Online Settings
from the menu.
The following Online Settings Tab Page is displayed.
You can start and stop recording to the Debug Log by clicking the following buttons.
Category
Item
Button
Operation
Debug Log Start/Stop Start Recording to the Debug Log is started.
Stop Recording to the Debug Log is stopped.
2. Click the Start Button.
A confirmation message is displayed.
3. Click the Yes Button.
Start by executing a DB_ControlService Instruction
Specify Start recording to Debug Log in the Cmd input variable of the DB_ControlService
(Control DB Connection Service) instruction and execute the instruction. Refer to Appendix DB
Connection Instructions for details of the instruction.
