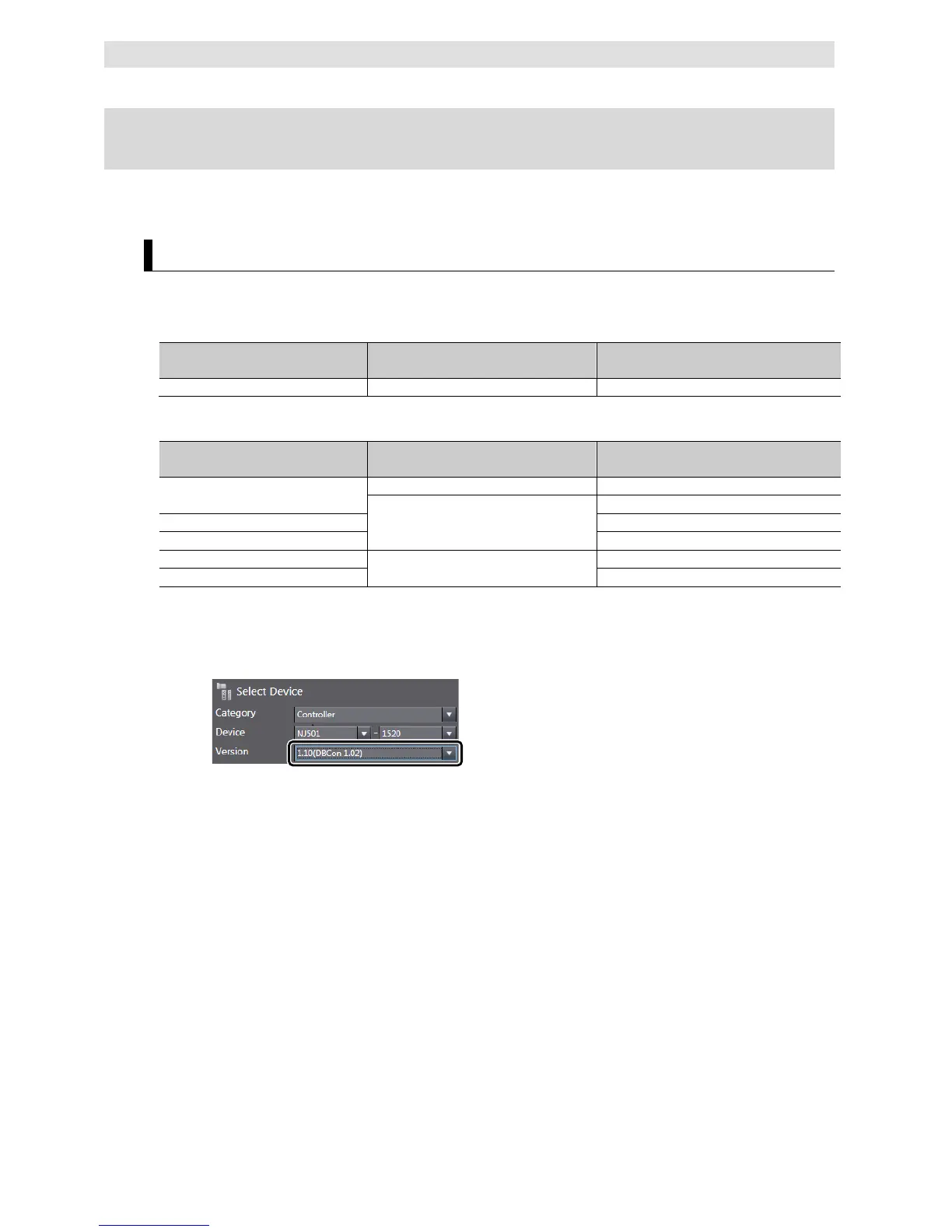

B-4-3 Actual Unit Version of CPU Unit and Unit Version Set in the Sysmac
Studio Project
The following table gives the relationship between the unit versions of CPU Units and the
corresponding Sysmac Studio versions.
Unit Versions and Corresponding Sysmac Studio Versions
The following table gives the relationship between the unit versions of CPU Units, the DB Connection
Service versions, and the Sysmac Studio versions that can set the unit versions.
 NX701-20
Unit version of CPU Unit DB Connection Service version Sysmac Studio version that can set the unit
version
1.16
1.03
1.21 or higher
 NJ501-20 or NJ101-20
Unit version of CPU Unit DB Connection Service version Sysmac Studio version that can set the unit
version
1.10
1.02
1.14 or higher
*1, *2
1.01
1.13 or higher
*1, *2
1.09
1.10 or higher
1.08
1.09 or higher
1.07
1.00
1.08 or higher
1.05
1.06 or higher
*1 When you set a unit version in Sysmac Studio version 1.14 or higher, a unit version and DB Connection
Service version are displayed in the Version box because more than one DB connection version exists for
the same unit version of the CPU Unit. For example, when you want to create a project for a CPU Unit with
unit version 1.10 with the DB Connection Service version 1.02, select 1.10 (DBCon 1.02) in the Version
box.
*2 Sysmac Studio version 1.14 or higher is required to use NJ101-20 Database Connection CPU Units.
NJ101-20 cannot be used with Sysmac Studio version 1.13 or lower.
