Operator’s Manual – OPTI CCA-TS2 1-7
1 INTRODUCTION
Next to the battery pack is the power connector
where you can connect the OPTI CCA-TS2 to an
external power supply (Fig. 1-11).
The power button is located on the left side of the
unit next to the power connector (Fig. 1-11).
NOTE: Topowerdownthesystem,holdthepower
buttoninfor2seconds.
The OPTI CCA-TS2 is equipped with a carrying
handle for easy transport, which can also be used as
a tilt stand to place the instrument at a convenient
viewing angle for the user.
• To extend the handle to carrying position, place
the analyzer on its back and position your
ngers in the cutouts on each side of the handle.
Push up until the handle is fully extended
(Fig. 1-12).
• To use the handle as a tilt stand, pull down the
handle (Fig. 1-13) and lock it in the lower
position (Fig. 1-14). Turn analyzer back to
original position (Fig. 1-15).

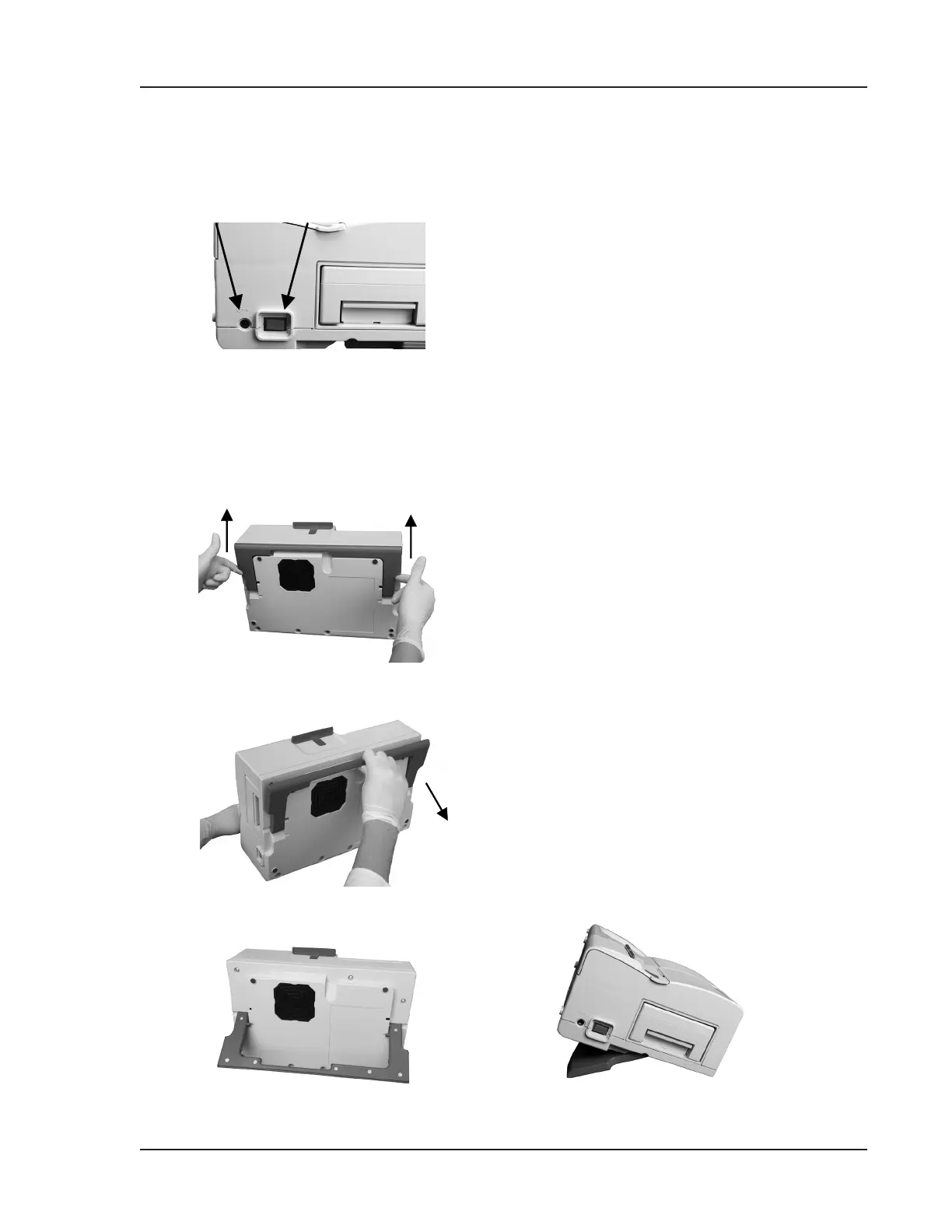

Fig. 1-12 Carrying Handle
Fig. 1-13 Pull down handle
Carrying Handle
Fig. 1-11 Power Connector and Power Button
Power Connector and
Power Button
Fig. 1-14 Tilt stand
Fig. 1-15 Tilt stand
