3 CUSTOMIZATION
3.2.4.6 Conguring Ethernet Settings
The <Ethernet> screen is used to congure
Ethernet settings required for discovery and set the
IP address if static.
1. In the main menu, select <System Manager>
and <Setup>.
2. In the <System Setup> menu, press the
<System> tab and then <Ethernet>
(Fig. 3-85).
3. The <System>Setup>Ethernet> menu will
appear (Fig. 3-86).
To set up Ethernet communication:
1. Connect the instrument to an active network.
2. In the main menu, select <System Manager>
Diagnostics>Tests>Ethernet>.
3. Verify that the test status is <Connected> and
that the displayed instrument IP address is valid
(not all zeros) (Fig. 3-87).

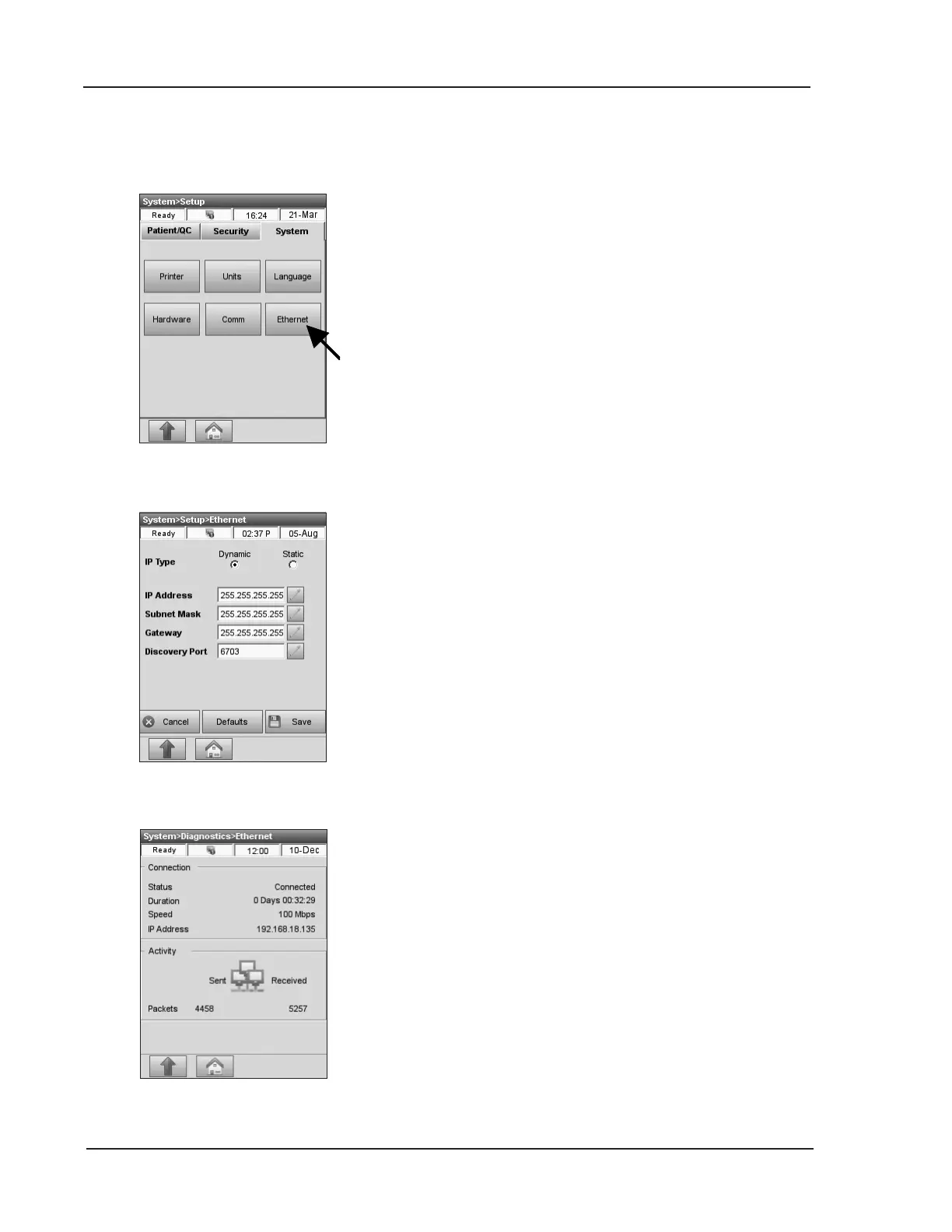

Fig. 3-85 Ethernet
Fig. 3-86 Ethernet Settings
Fig. 3-87 Ethernet Test
