DEN BY LAW, AND RENDERS THE VEHICLE NO LONGER CONFORMING TO
THE APPROVED TYPE AND DANGEROUS FOR RIDING.
03_35
03_36

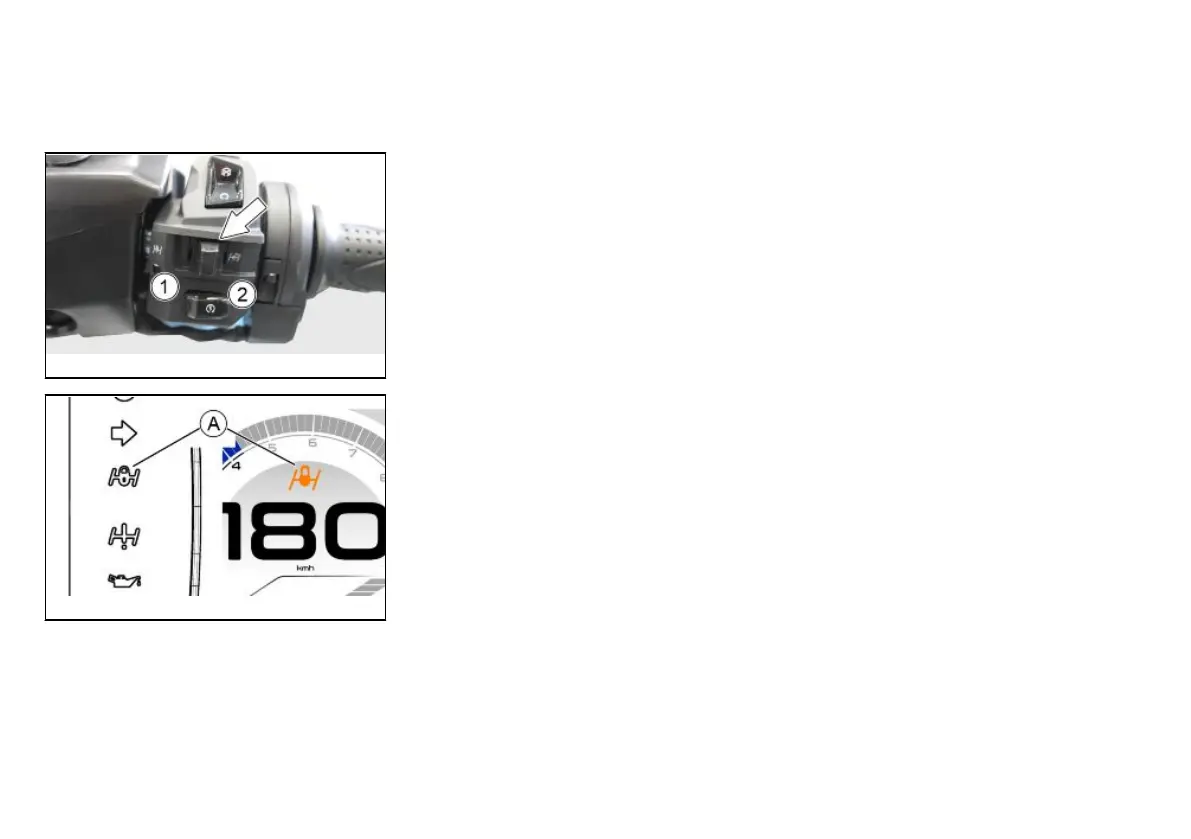

Suspension roll block system (03_35, 03_36, 03_37, 03_38,
03_39)
The front suspension block system allows the simple blockage of rolling of the vehicle
by moving the corresponding switch. The vehicle can be stopped without your feet
touching the ground.
Turning the starter switch to "ON", the warning light "A" (on the instrument cluster as
well as on the digital display) starts blinking, if the lock is deactivated. This means that
the system is enabled for activation.
Moving the switch to "1", a continuous sound alarm signals that the locking system is
engaged and, at the same time, the warning light "A" turns steadily on.
Moving the switch to "2" an intermittent sound alarm signals that the locking system
is disengaged and, at the same time, the warning light "A" starts flashing again. The
light "A" will turn off when you go into gear. This means that the lock is not enabled.
115
3 Use

PIAGGIO MP3 530 hpe Specifications

General

Displacement	530 cc
Fuel System	Electronic fuel injection
Transmission	CVT with torque server
Rear Brake	240 mm disc
ABS	Yes
Tire Size Front	110/70 - 13"
Tire Size Rear	140/70 - 14"
Width	800 mm
Seat Height	790 mm
Weight	280 kg
Engine Type	4-stroke, single-cylinder
Max Power	32.5 kW (44.2 HP) @ 7, 250 rpm
Max Torque	50 Nm at 5, 250 rpm
Cooling System	Liquid cooled
Front Suspension	Articulated quadrilateral
Front Brakes	Two 258 mm discs
Rear Suspension	Double shock absorber with adjustable preload
