PIAGGIO MP3 530 hpe User Manual

02_133
•

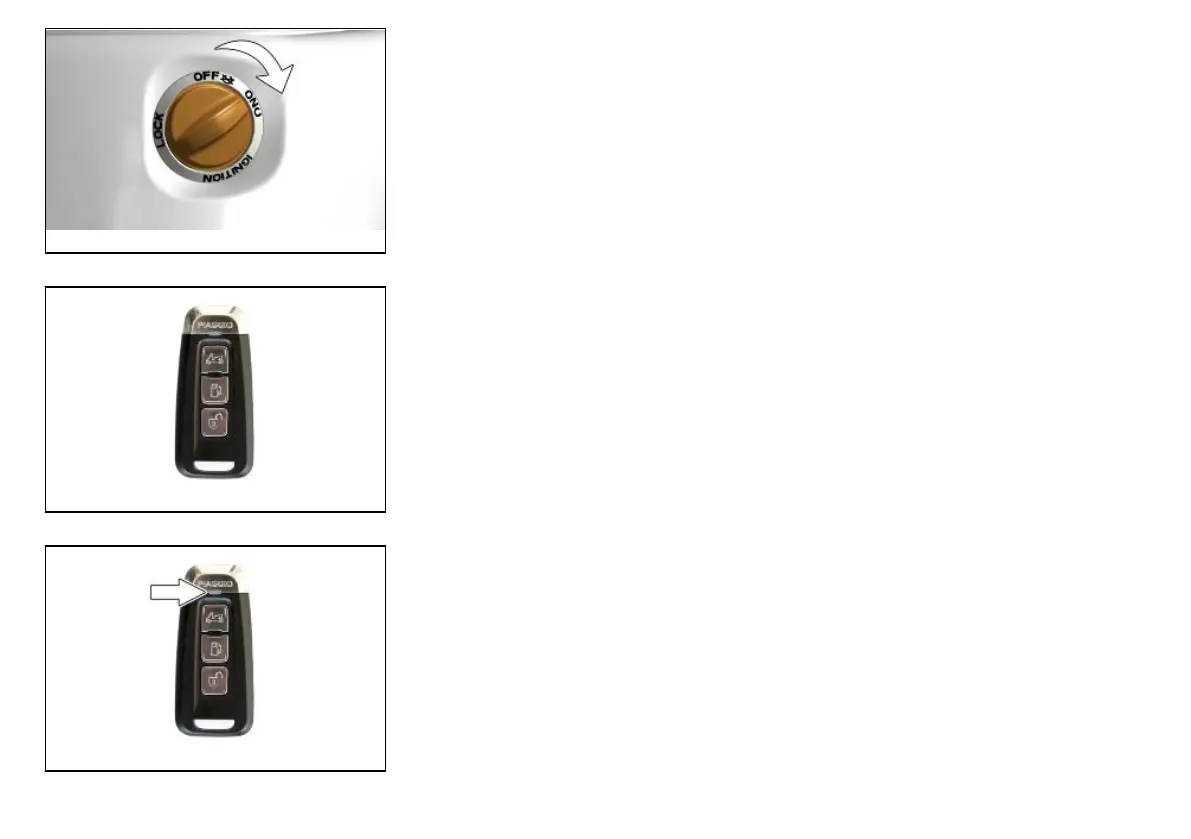

After a few seconds, the digital display will turn on and the IMMOBILIZER led
will start to flash;
•
Once the recognition has been completed, the IMMOBILIZER led will turn off
and it will be possible to remove the remote control from the position above
the top case; As indicated by the message on the digital display, turn the
ignition switch to the "ON" position.
02_134
Remote control programming (02_134)
To purchase and program new remote controls or if they are lost, contact an Author-
ised Service Centre.
02_135
Remote control battery replacement (02_135, 02_136, 02_137,
02_138, 02_139)
When the remote control LED flashes in green or red, the remote control battery level
is low. The battery must be replaced as soon as possible.
83
2 Vehicle

PIAGGIO MP3 530 hpe Specifications

General

Displacement	530 cc
Fuel System	Electronic fuel injection
Transmission	CVT with torque server
Rear Brake	240 mm disc
ABS	Yes
Tire Size Front	110/70 - 13"
Tire Size Rear	140/70 - 14"
Width	800 mm
Seat Height	790 mm
Weight	280 kg
Engine Type	4-stroke, single-cylinder
Max Power	32.5 kW (44.2 HP) @ 7, 250 rpm
Max Torque	50 Nm at 5, 250 rpm
Cooling System	Liquid cooled
Front Suspension	Articulated quadrilateral
Front Brakes	Two 258 mm discs
Rear Suspension	Double shock absorber with adjustable preload
