PIAGGIO MP3 530 hpe User Manual

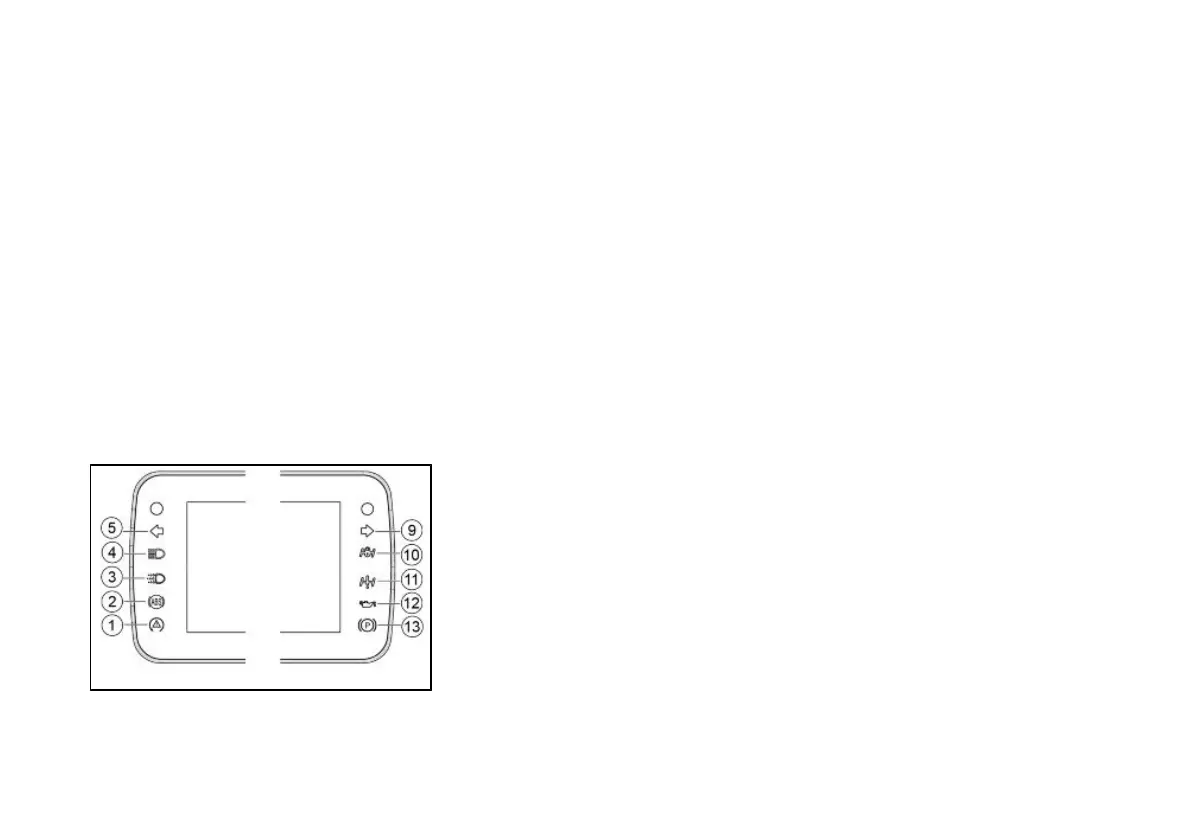

2 = ABS warning light
3 = D.R.L. (Daytime Running Lights) warning light on
4 = High beam warning light on
5 = Left turn signal indicator lamp
6 = Digital display light sensor
7 = Digital display
8 = Immobilizer LED
9 = Right turn signal indicator lamp
10 = Front suspension lock system warning light active
11 = Front suspension lock system malfunction warning light
12 = Low engine oil pressure warning lamp
13 = Parking brake indicator light
02_05
Indicator unit (02_05, 02_06)
The main warning lights on the analogue instrument panel are described below.
14
2 Vehicle

PIAGGIO MP3 530 hpe Specifications

General

Displacement	530 cc
Fuel System	Electronic fuel injection
Transmission	CVT with torque server
Rear Brake	240 mm disc
ABS	Yes
Tire Size Front	110/70 - 13"
Tire Size Rear	140/70 - 14"
Width	800 mm
Seat Height	790 mm
Weight	280 kg
Engine Type	4-stroke, single-cylinder
Max Power	32.5 kW (44.2 HP) @ 7, 250 rpm
Max Torque	50 Nm at 5, 250 rpm
Cooling System	Liquid cooled
Front Suspension	Articulated quadrilateral
Front Brakes	Two 258 mm discs
Rear Suspension	Double shock absorber with adjustable preload
