PIAGGIO MP3 530 hpe User Manual

CAUTION
RUNNING THE ENGINE WITH INSUFFICIENT LUBRICATION OR WITH INADE-
QUATE LUBRICANTS ACCELERATES THE WEAR AND TEAR OF THE MOVING
PARTS AND CAN CAUSE IRREPARABLE DAMAGE.
TOPPING UP THE ENGINE WITH AN EXCESSIVE AMOUNT OF OIL MAY CAUSE
MALFUNCTION AND/OR A DROP IN PERFORMANCE OF THE VEHICLE.
USING OILS OTHER THAN THOSE RECOMMENDED CAN SHORTEN THE LIFE
OF THE ENGINE.
CAUTION
USED OILS CONTAIN SUBSTANCES HARMFUL TO THE ENVIRONMENT. FOR
OIL REPLACEMENT, CONTACT ANY AUTHORISED SERVICE CENTRE AS THEY
ARE EQUIPPED TO DISPOSE OF USED OILS IN AN ENVIRONMENTALLY
FRIENDLY AND LEGAL WAY.

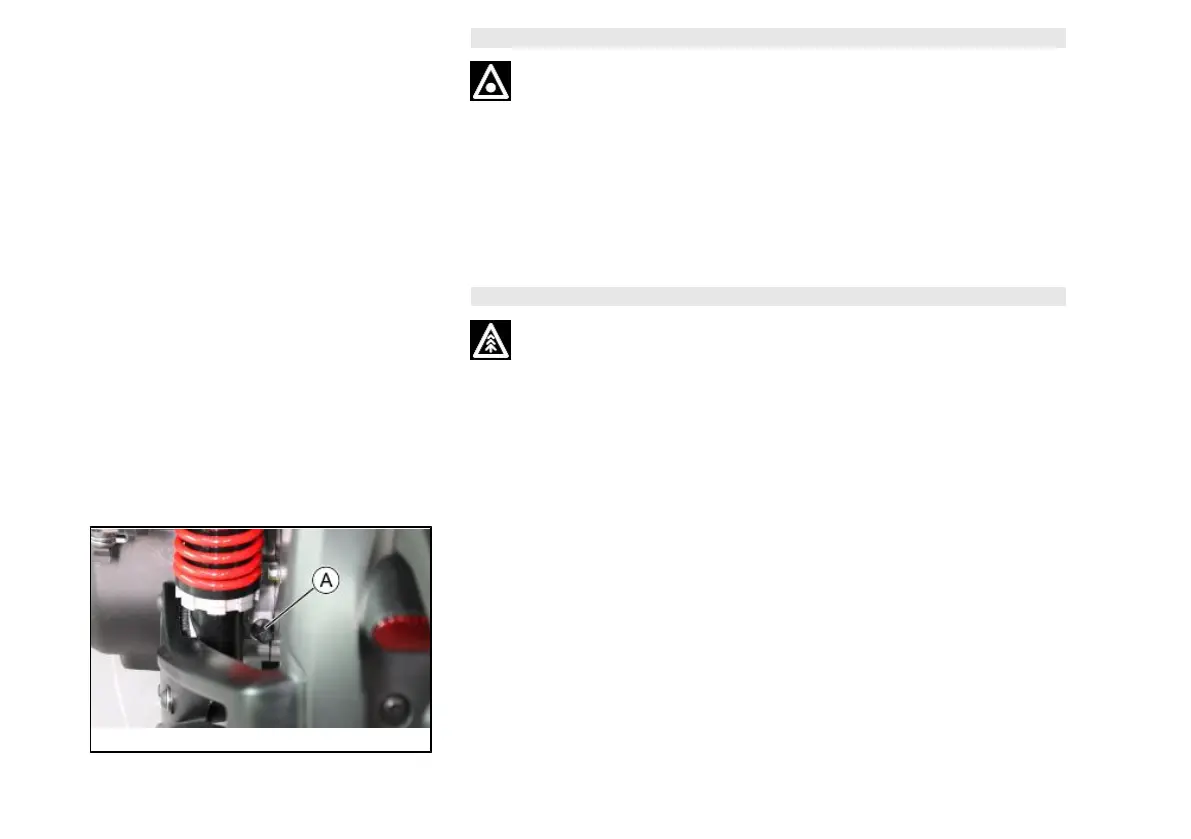

04_06
Hub oil level (04_06, 04_07, 04_08)
Check that the oil level in the hub is correct at the intervals specified in the scheduled
maintenance table.
Do the following in order to check the hub oil level:
1) Stand the vehicle on its stand on flat ground.
2) Unscrew the hub oil dipstick «A», dry it with a clean cloth and then reinsert it, and
screw it right down.
3) Extract the dipstick and check that the oil level is between the MIN and MAX marks,
as indicated in the figure; This level is the proper level, and should remain constant.
126
4 Maintenance

PIAGGIO MP3 530 hpe Specifications

General

Displacement	530 cc
Fuel System	Electronic fuel injection
Transmission	CVT with torque server
Rear Brake	240 mm disc
ABS	Yes
Tire Size Front	110/70 - 13"
Tire Size Rear	140/70 - 14"
Width	800 mm
Seat Height	790 mm
Weight	280 kg
Engine Type	4-stroke, single-cylinder
Max Power	32.5 kW (44.2 HP) @ 7, 250 rpm
Max Torque	50 Nm at 5, 250 rpm
Cooling System	Liquid cooled
Front Suspension	Articulated quadrilateral
Front Brakes	Two 258 mm discs
Rear Suspension	Double shock absorber with adjustable preload
