PIAGGIO MP3 530 hpe User Manual

02_94

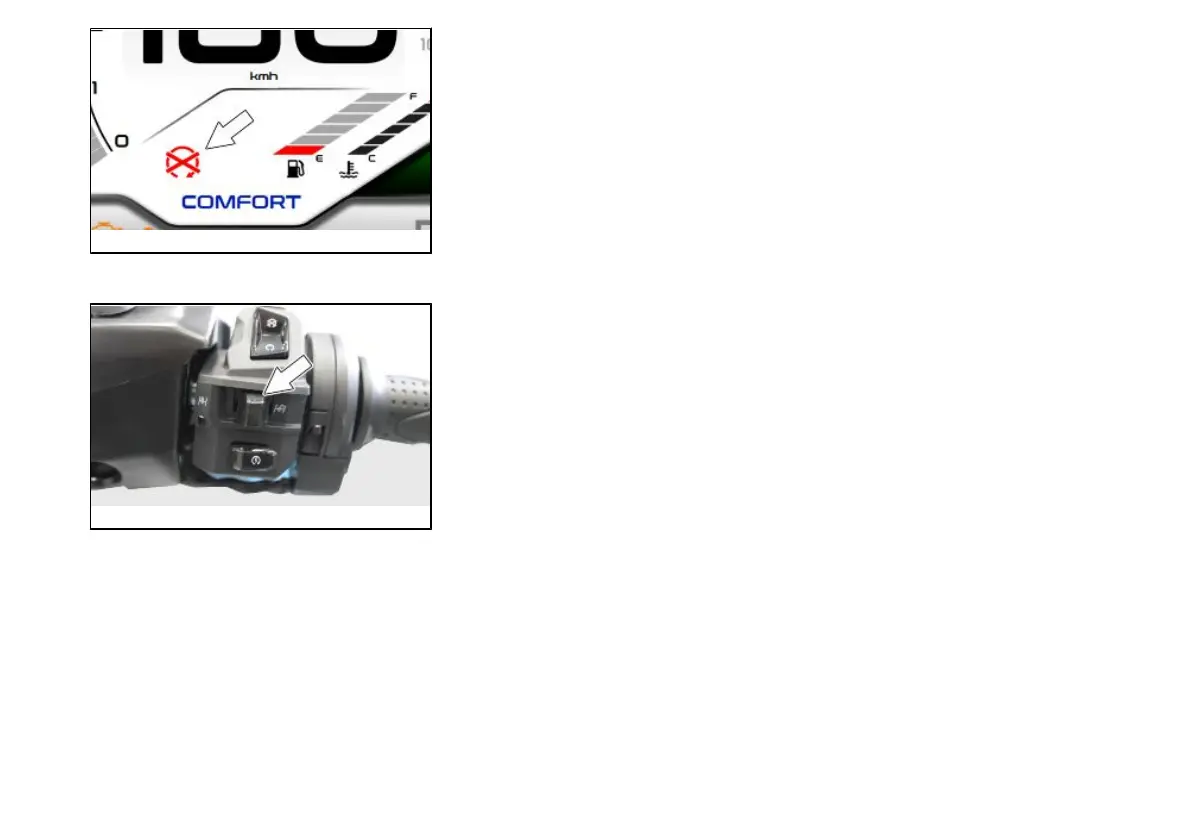

If starting is inhibited, the relative icon will also light up on the digital display.
02_95
Front suspension unlock-lock switch (02_95)
The switch activates and deactivates the lock of the front suspension.
As the topic is so complex, find the instructions for using this control in the "Use"
chapter.
62
2 Vehicle

PIAGGIO MP3 530 hpe Specifications

General

Displacement	530 cc
Fuel System	Electronic fuel injection
Transmission	CVT with torque server
Rear Brake	240 mm disc
ABS	Yes
Tire Size Front	110/70 - 13"
Tire Size Rear	140/70 - 14"
Width	800 mm
Seat Height	790 mm
Weight	280 kg
Engine Type	4-stroke, single-cylinder
Max Power	32.5 kW (44.2 HP) @ 7, 250 rpm
Max Torque	50 Nm at 5, 250 rpm
Cooling System	Liquid cooled
Front Suspension	Articulated quadrilateral
Front Brakes	Two 258 mm discs
Rear Suspension	Double shock absorber with adjustable preload
