PIAGGIO MP3 530 hpe User Manual

03_40

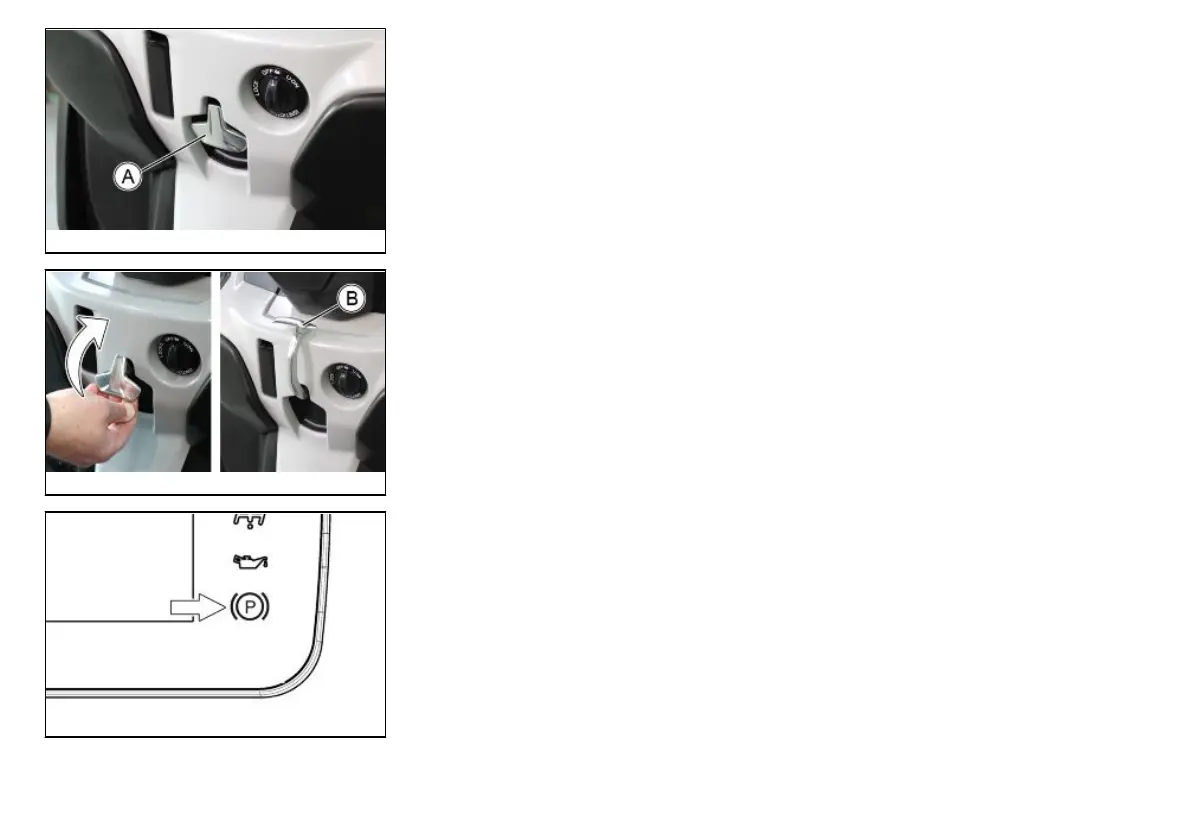

Parking brake (03_40, 03_41, 03_42, 03_43)
With the vehicle at a standstill and the suspension locking system engaged, it is pos-
sible to get off the vehicle without using the stand.
For safety, it is mandatory to engage the parking brake by acting on the lever
"A" shown in the figure.
03_41
To engage the parking brake, the lever must be lifted from position "A" to position
"B".
03_42
With the parking brake engaged, in position "B", the special warning light on the in-
strument cluster comes on.
119
3 Use

PIAGGIO MP3 530 hpe Specifications

General

Displacement	530 cc
Fuel System	Electronic fuel injection
Transmission	CVT with torque server
Rear Brake	240 mm disc
ABS	Yes
Tire Size Front	110/70 - 13"
Tire Size Rear	140/70 - 14"
Width	800 mm
Seat Height	790 mm
Weight	280 kg
Engine Type	4-stroke, single-cylinder
Max Power	32.5 kW (44.2 HP) @ 7, 250 rpm
Max Torque	50 Nm at 5, 250 rpm
Cooling System	Liquid cooled
Front Suspension	Articulated quadrilateral
Front Brakes	Two 258 mm discs
Rear Suspension	Double shock absorber with adjustable preload
