PIAGGIO MP3 530 hpe User Manual

04_22

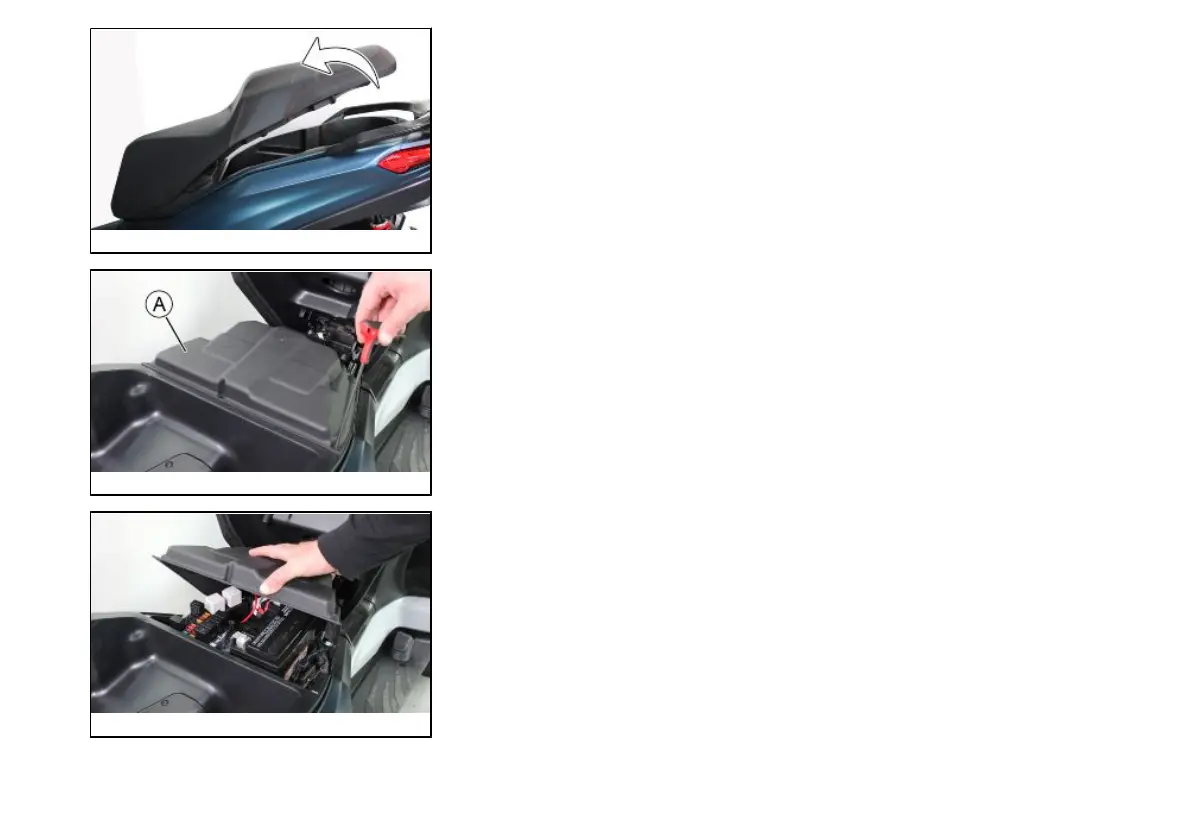

Battery (04_22, 04_23, 04_24, 04_25)
To access the battery, proceed as follows:
- place the vehicle on its centre stand and lift the saddle as indicated above;
04_23
- unscrew the battery cover's fastening screws "A";
04_24
- remove the battery cover paying attention to the front tabs.
136
4 Maintenance

PIAGGIO MP3 530 hpe Specifications

General

Displacement	530 cc
Fuel System	Electronic fuel injection
Transmission	CVT with torque server
Rear Brake	240 mm disc
ABS	Yes
Tire Size Front	110/70 - 13"
Tire Size Rear	140/70 - 14"
Width	800 mm
Seat Height	790 mm
Weight	280 kg
Engine Type	4-stroke, single-cylinder
Max Power	32.5 kW (44.2 HP) @ 7, 250 rpm
Max Torque	50 Nm at 5, 250 rpm
Cooling System	Liquid cooled
Front Suspension	Articulated quadrilateral
Front Brakes	Two 258 mm discs
Rear Suspension	Double shock absorber with adjustable preload
