PIAGGIO MP3 530 hpe User Manual

03_01
Checks (03_01)
To ensure the safety of the occupants of the vehicle and that the vehicle itself works
correctly, the customer is responsible for carrying out the following checks and tests
before each use of the vehicle:
1. The operation of the front and rear brakes;
2. The correct sliding of the accelerator lever during opening and release;
3. The fuel level in the tank; if necessary, refuel;
4. The brake fluid level;
5. The transmission oil level;
6. The engine oil level;
7. The coolant level (if available);
8. The pressure and wear of the tyres;
9. The operation of the electrical system (horn, position lights, headlamp light, turn
indicators, brake light, licence plate lighting);
10. The operation of the central and side stand (if available).
03_02

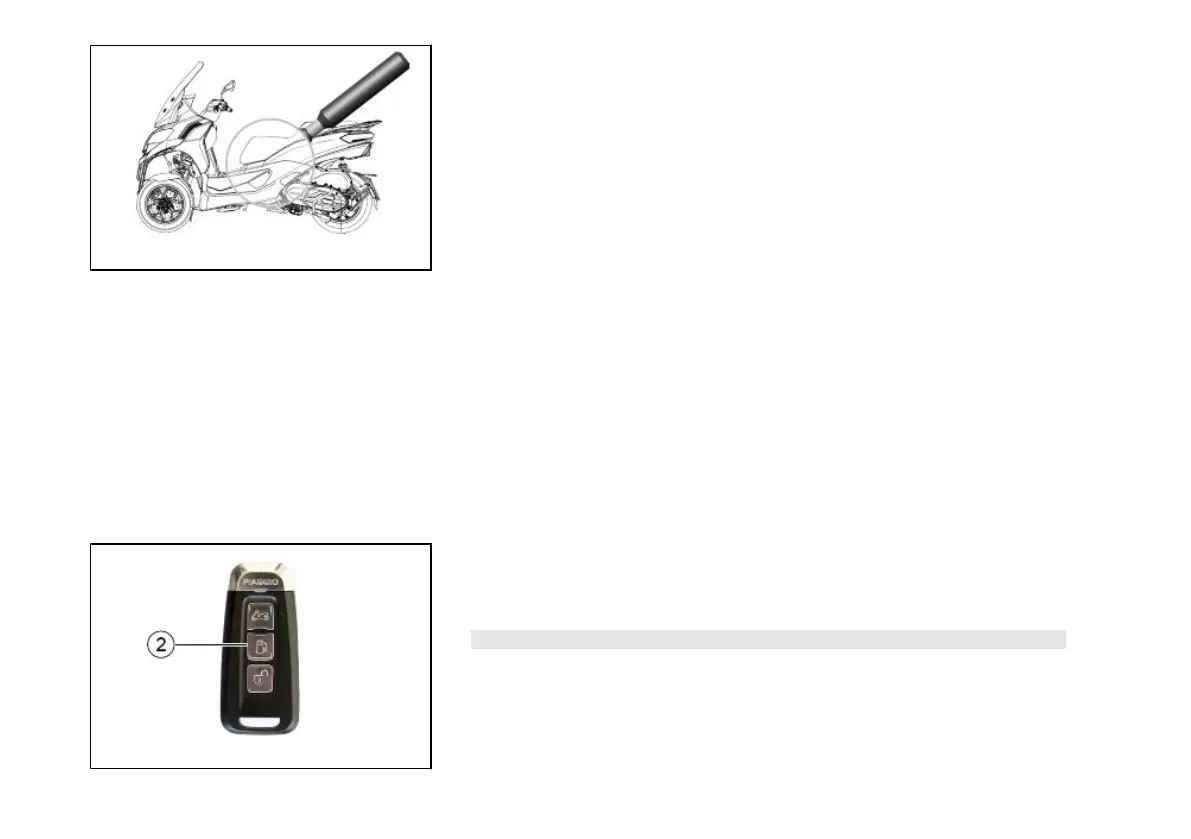

Refuelling (03_02, 03_03, 03_04, 03_05, 03_06, 03_07, 03_08)
Pressing the button "2" for more than 1.5 seconds with the ignition switch in "OFF" or
"LOCK" position, it is possible to open the fuel tank cap with the remote control.
N.B.
THE REMOTE CONTROL CAN BE USED AT A DISTANCE LESS THAN 50 ME-
TERS FROM THE VEHICLE.
92
3 Use

PIAGGIO MP3 530 hpe Specifications

General

Displacement	530 cc
Fuel System	Electronic fuel injection
Transmission	CVT with torque server
Rear Brake	240 mm disc
ABS	Yes
Tire Size Front	110/70 - 13"
Tire Size Rear	140/70 - 14"
Width	800 mm
Seat Height	790 mm
Weight	280 kg
Engine Type	4-stroke, single-cylinder
Max Power	32.5 kW (44.2 HP) @ 7, 250 rpm
Max Torque	50 Nm at 5, 250 rpm
Cooling System	Liquid cooled
Front Suspension	Articulated quadrilateral
Front Brakes	Two 258 mm discs
Rear Suspension	Double shock absorber with adjustable preload
