General rules (01_01)

The vehicle is equipped with the "Canister", main component of the system for the

control of evaporative emissions, compliant with the current standards.

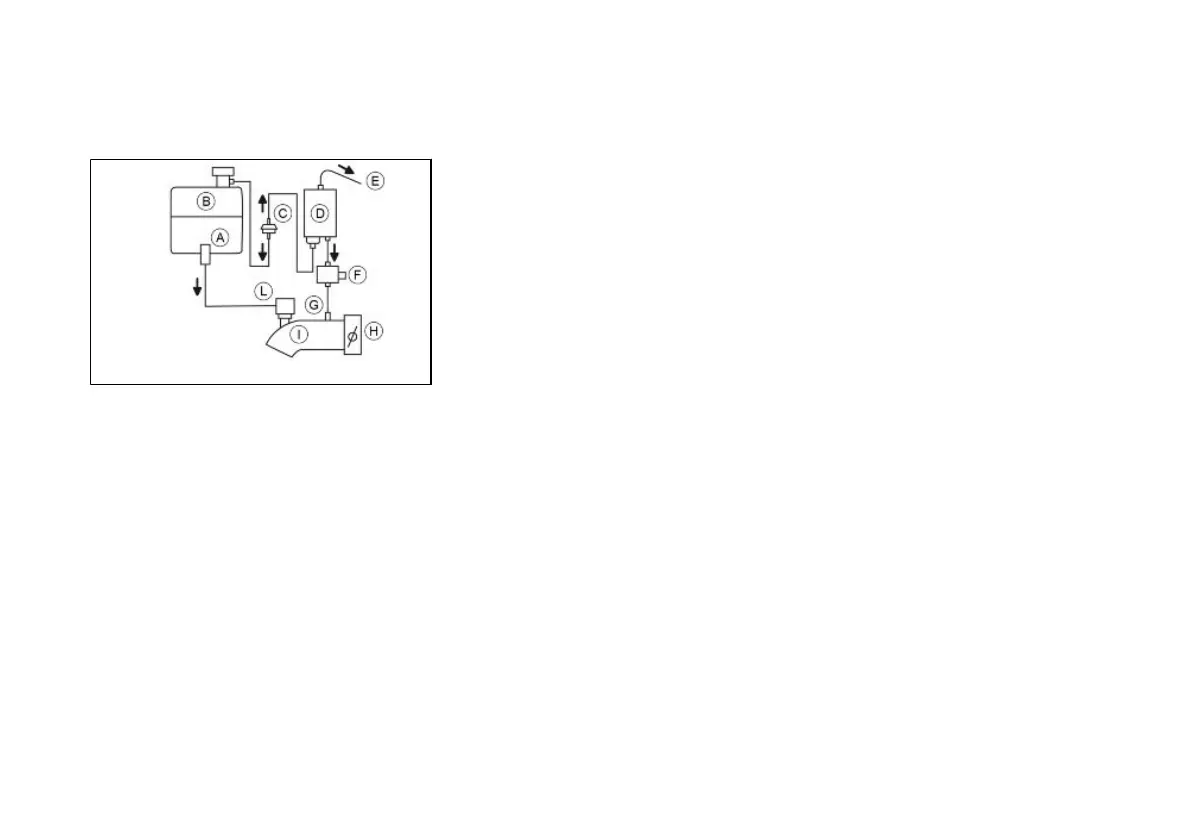

01_01

A. Fuel pump

B. Fuel tank

C. Two-way fuel vapour ventilation valve

D.Canister

E.Air purge pipe into atmosphere

F.One-way electronic fuel vapour purge control valve (controlled by ECU)

G. Vacuum fitting

H. Throttle body

I. Air induction fitting

L. Injector

1 General rules
