Fuses (04_31, 04_32, 04_33, 04_34, 04_35, 04_36, 04_37, 04_38)

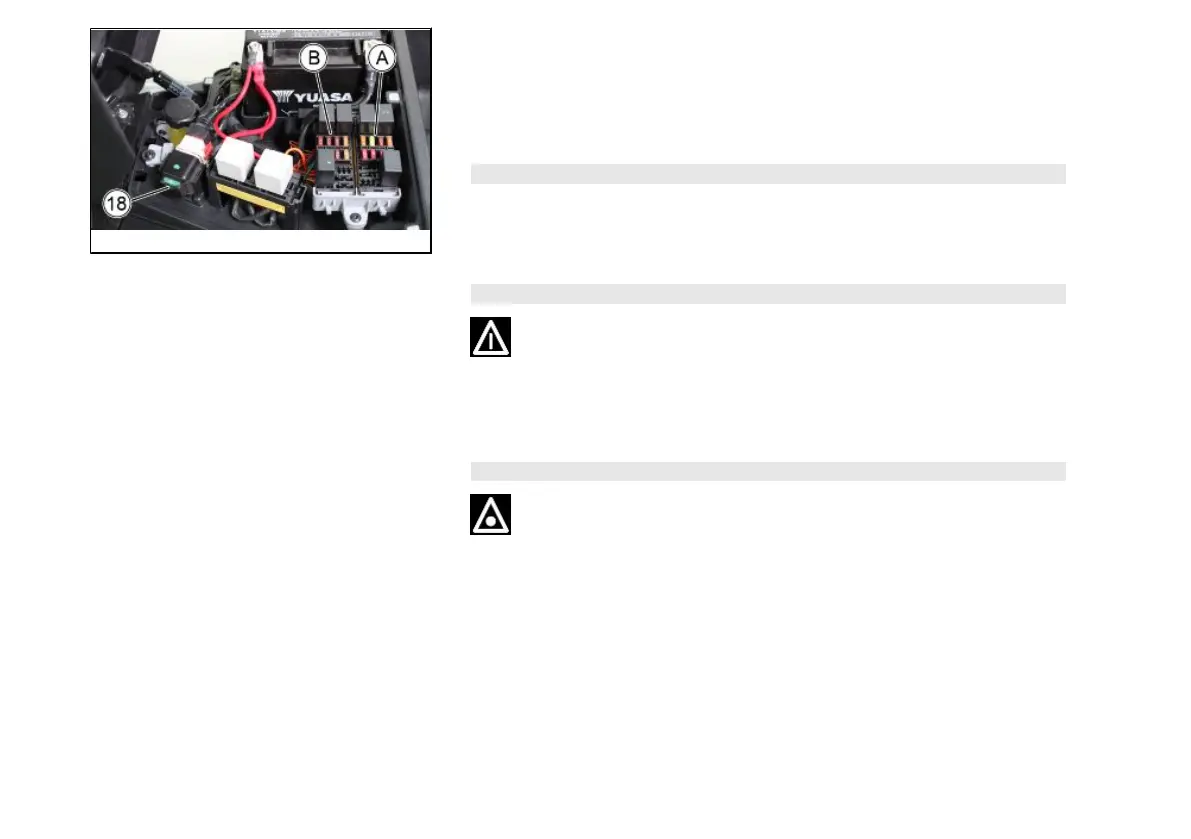

The electrical system is equipped with 16 main protection fuses, divided into two fuse
boxes "A" and "B", and with a general fuse "18", located near the battery.
To access the fuses, it is necessary to lift the saddle and remove the battery cover as
described in the section "Battery".
CAUTION
BEFORE REPLACING A BLOWN FUSE, FIND AND SOLVE THE FAILURE THAT
CAUSED IT TO BLOW. NEVER TRY TO REPLACE A BLOWN FUSE WITH A FUSE
OF A DIFFERENT RATING THAN THAT SPECIFIED OR USING OTHER MATERI-
AL (FOR EXAMPLE, A PIECE OF ELECTRICAL WIRE).
CAUTION
MODIFICATIONS OR REPAIRS TO THE ELECTRICAL SYSTEM, PERFORMED
INCORRECTLY OR WITHOUT STRICT ATTENTION TO THE TECHNICAL SPEC-
IFICATIONS OF THE SYSTEM CAN CAUSE MALFUNCTIONING AND RISK OF
FIRE.
WARNING
IN ORDER TO AVOID DAMAGING THE ELECTRICAL SYSTEM, NEVER DISCON-
NECT THE BATTERY CABLE WHILE THE ENGINE IS RUNNING.
140
4 Maintenance

PIAGGIO MP3 530 hpe Specifications

General

Displacement	530 cc
Fuel System	Electronic fuel injection
Transmission	CVT with torque server
Rear Brake	240 mm disc
ABS	Yes
Tire Size Front	110/70 - 13"
Tire Size Rear	140/70 - 14"
Width	800 mm
Seat Height	790 mm
Weight	280 kg
Engine Type	4-stroke, single-cylinder
Max Power	32.5 kW (44.2 HP) @ 7, 250 rpm
Max Torque	50 Nm at 5, 250 rpm
Cooling System	Liquid cooled
Front Suspension	Articulated quadrilateral
Front Brakes	Two 258 mm discs
Rear Suspension	Double shock absorber with adjustable preload
