PIAGGIO MP3 530 hpe User Manual

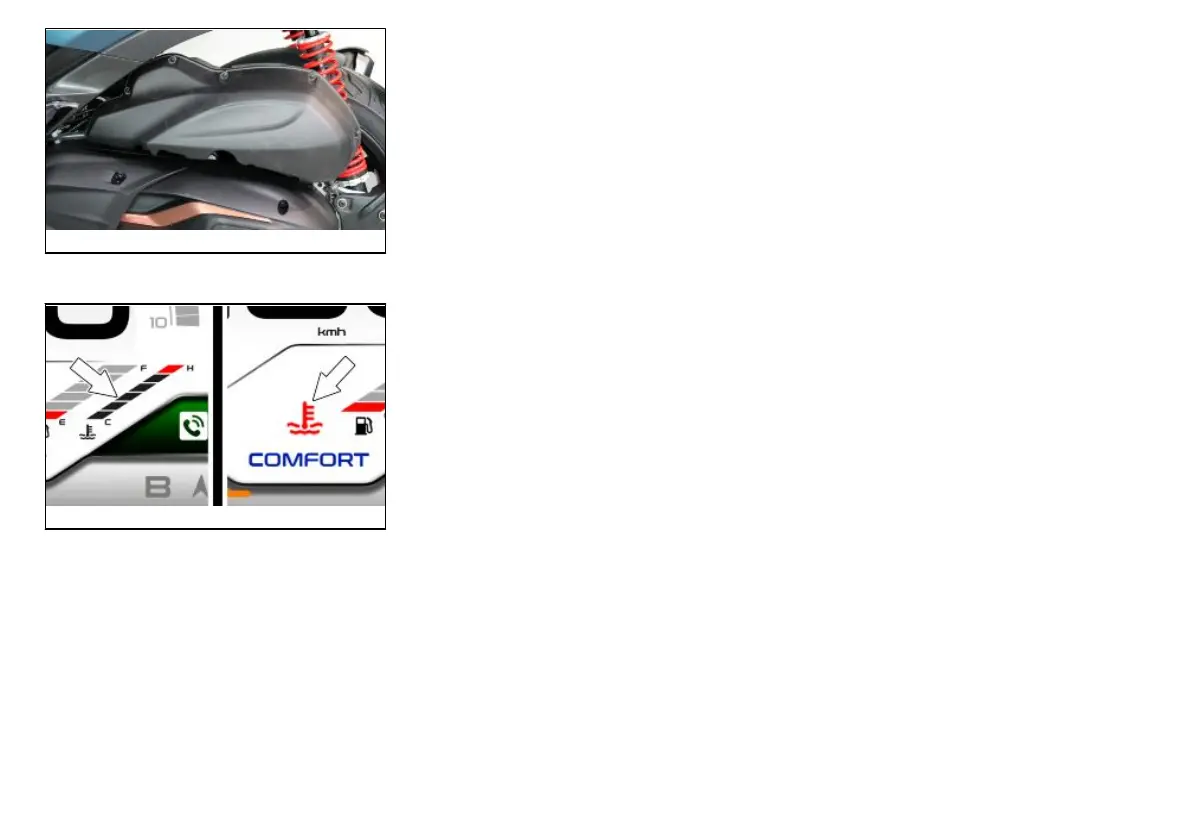

04_12
Removing the air filter (04_12)
To remove and clean the air filter, observe the instructions in the scheduled mainte-
nance table, contact an Authorised Service Centre.
04_13
Cooling fluid level (04_13, 04_14, 04_15, 04_16)
Engine cooling is forced liquid circulation. The coolant is composed of a mix of 50%
de-mineralised water and an ethylene glycol-based antifreeze with corrosion preven-
tion components. The coolant included with the scooter is already mixed and ready
for use.
For proper functioning of the engine, ensure that the temperature of the coolant is
maintained at about 90°C.
If the coolant temperature icon lights up on the digital display, stop the engine imme-
diately, allow it to cool and check the coolant level; If it is as it should be contact an
Authorised Service Centre.
Check the fluid with cold engine according to the scheduled maintenance table, in the
way shown below.
131
4 Maintenance

PIAGGIO MP3 530 hpe Specifications

General

Displacement	530 cc
Fuel System	Electronic fuel injection
Transmission	CVT with torque server
Rear Brake	240 mm disc
ABS	Yes
Tire Size Front	110/70 - 13"
Tire Size Rear	140/70 - 14"
Width	800 mm
Seat Height	790 mm
Weight	280 kg
Engine Type	4-stroke, single-cylinder
Max Power	32.5 kW (44.2 HP) @ 7, 250 rpm
Max Torque	50 Nm at 5, 250 rpm
Cooling System	Liquid cooled
Front Suspension	Articulated quadrilateral
Front Brakes	Two 258 mm discs
Rear Suspension	Double shock absorber with adjustable preload
