Pima Captain 8 Installation Guide

Hunter-Pro Series Captain 8 - Installation Guide
14
Examples for expanders and zone numbering
Expander
+ EXP-PRO UNIV
W/O EXP-PRO UNIV
I/O-8N (8 z.)
Zones #17-24
Zones #9-16
Two I/O-8N (16 z.)
Zones #17-32
Zones #9-24
Two I/O-16 (32 z.)
Zones #17-48
Zones #9-40

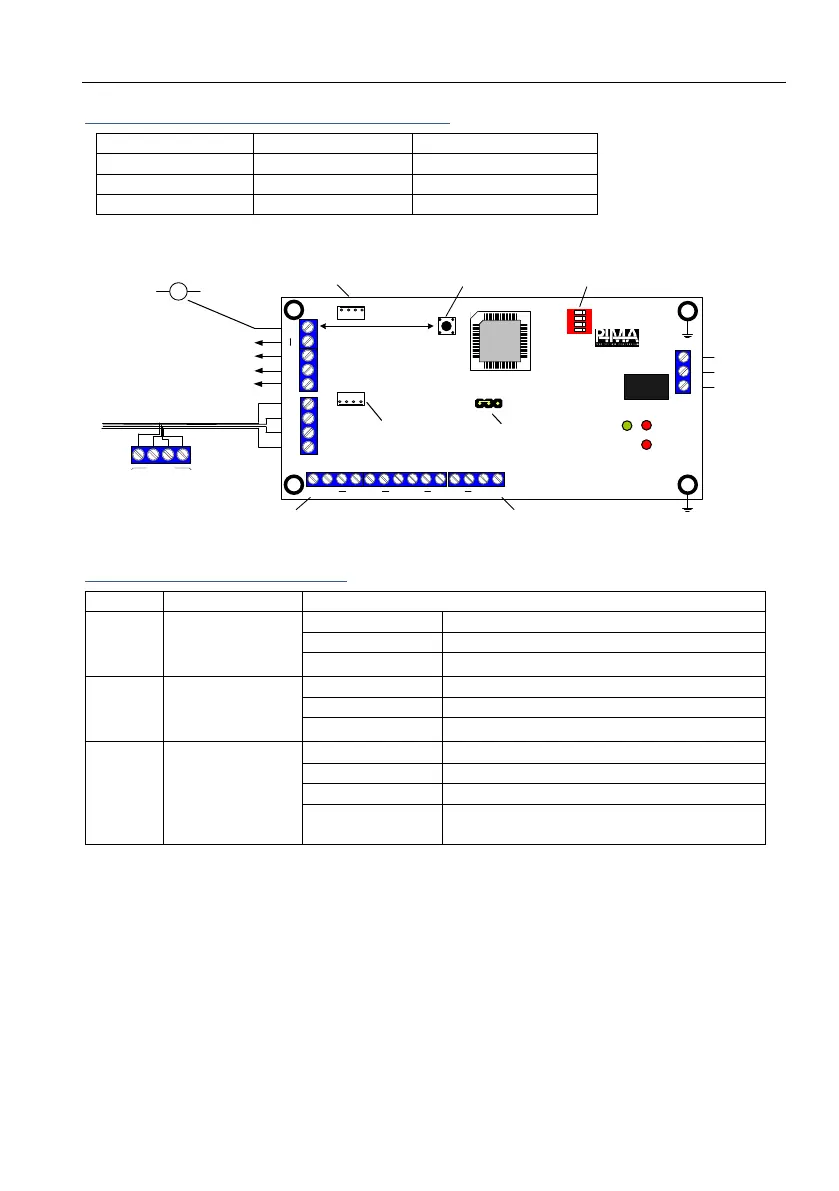

1.5.6. I/O-8N remote 8 zone expander
Diagram 6. I/O-8N zone expander
I/O-8N & I/O-16 LED indications
LED
Indication
Status
RUN
(Green)
Operation and
voltage supply
On
OK
Off
Voltage supply fault
Flashing
Card voltage fault
MASTER
DATA
(Red)
Communication
On
Communication fault
Off
Communication wires short
Flashing
OK
FAIL
(Red)
The control panel
Single flashes
No valid frame was received from the panel
2 long flashes
ACK is not received from the panel
3 long flashes
The expander is not programmed
4 long flashes
General/Fatal error. Occurs when no
transmission is received for one minute
EOL loops jumper
Parallel connection
Zones & GND (-)
Relay
terminals
ID setting dip-switch
To additional
expanders
Tamper switch
PS-2 Power supply
Tamper switch
+12V
BUS
Control panel
RUN
MASTER
DATA
FAIL
1 2 3 4 5 6 7 8 +
NC C NO
+
TMP
(-) (+) (IN)(OUT)
1 2 3 4
POWER SUPPLY
TECH KEYPAD
S C
JP1
I/O-8N
Technician
keypad
BUFFER
IN
ON
1 2 3 4
KEYPAD
-
+ IN OUT
1 2 3 4
+12V
3 (OUT)
4 (IN)
2 (+)
1 (-)
