2.3.1. Zone wiring
Captain 8 wiring is similar to that of the Hunter-Pro, See 1.4, starting page 11.
Key zones and key fobs

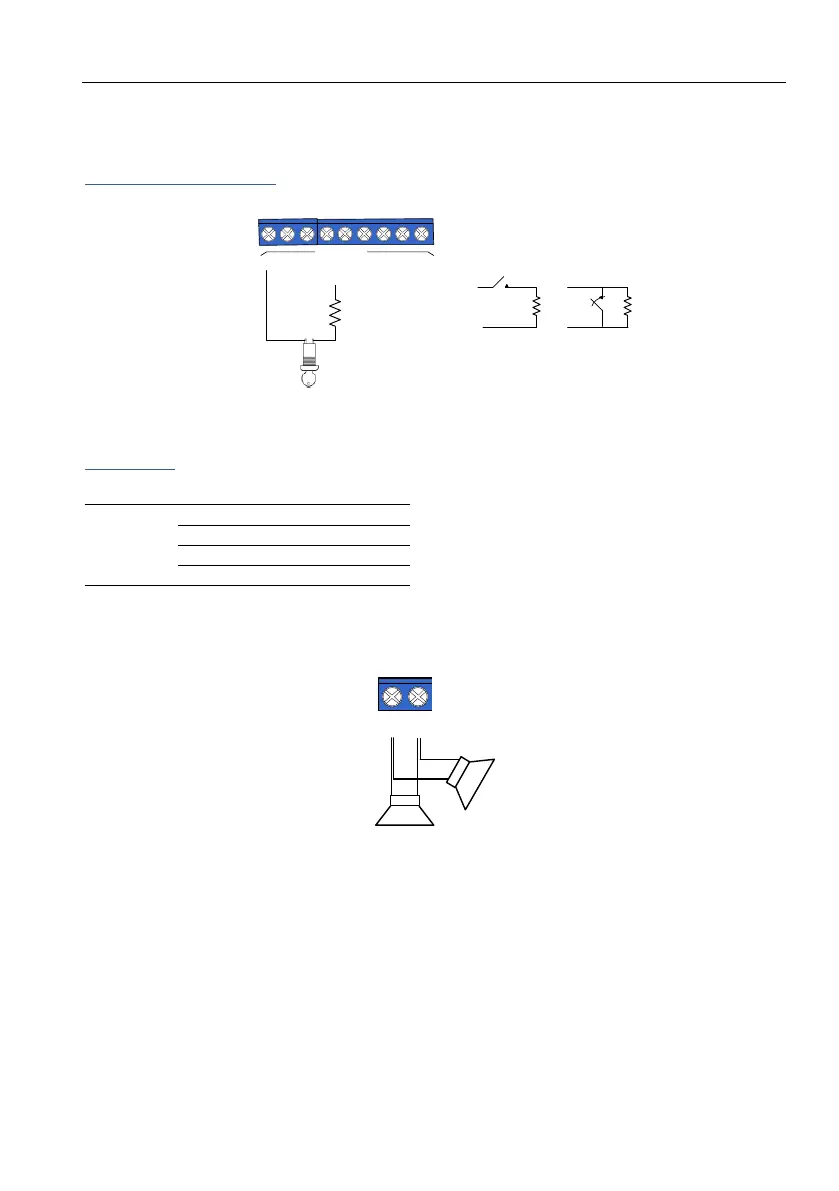

Diagram 35. Key switch wiring diagram
See section 1.5.12, on page 19 for details.
JP3 jumper
The JP3 jumper is set according to the EOL resistor loops, as seen in the next table.
2.3.2. Sirens wiring
Connect the sirens between the SRN (-) and (+) terminals, as seen in the next diagram.
Diagram 36. Siren wiring diagram
2.3.3. Keypad wiring and ID
See section 1.5.16, starting page 22.
2.3.4. Telephone LINE/SET wiring
1. Connect the telephone line to the LINE terminals.
2. Connect telephone set/fax machine/answering machine to the SET terminals.
