Key #7: Outputs Configuration
67
10.3. Output’s partitions
Allocate this output to partition/s, i.e., set which partitions would be enabled to trigger this
output. There are 16 available partitions in HUNTER-PRO Series and 4 in Captain 8.
10.4. Polarity and activation while disarmed
Set the output’s polarity and its active mode while the panel is disarmed.
When set to “+” the output will be…
(+): constantly tripped and disconnected when triggered
(-): tripped when and for as long as it is triggered
(+): activated while the panel is disarmed (Day)
(-): deactivated while the panel is disarmed can be used to
prevent the external siren from sounding, for example.
10.5. The "Ext. Siren" and "Int. Siren" outputs (Hunter-Pro
only)
There is only one SIREN output in Captain 8
The external and internal onboard siren outputs supply high current and can trigger bells & horns.
The “Ext. Siren” output cannot be triggered separately from the “Int. Siren” output. As a result,
the sirens can be activated in one of two options:
Triggering both the internal and the external sirens
Triggering the internal siren only
It is recommended to use the “External Siren” output type to trigger the “Ext. Siren”
output and the “Internal Siren” output type to trigger the “Int. Siren” output.
10.6. Expanders’ outputs
Configure the outputs on the OUT-1000
, I/O-R and I/O-8N expansion cards.
10.6.1. Examples

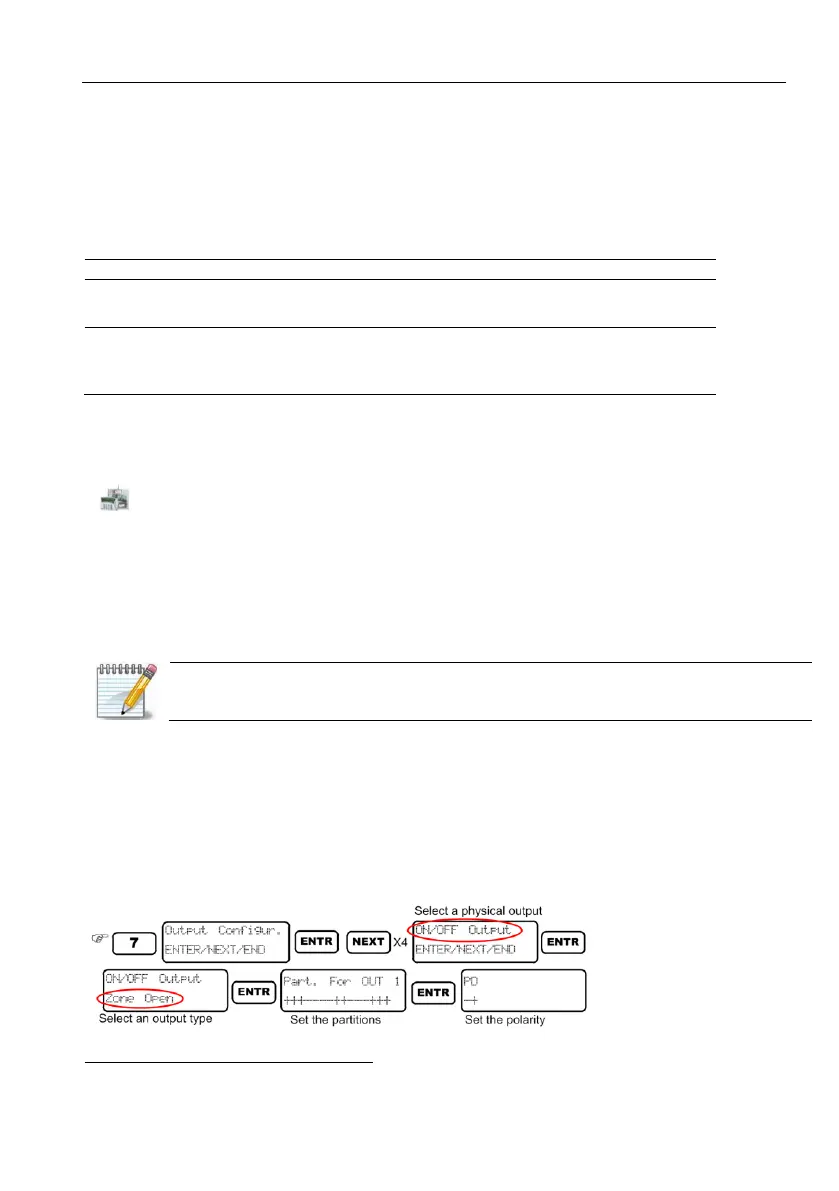

1. ON/OFF output (only in Hunter-Pro Series):
Set the ON/OFF output to be triggered every time a zone is opened, by using the "Open Zone"
output type.
