Pima Captain 8 Installation Guide

Captain 8
33
2 Captain 8
Captain 8 is a new 8-16 zone improved model of PIMA Captain 6 intruder alarm system.
Captain 8 User and Installer menus were adopted from PIMA successful Hunter-Pro Series systems.

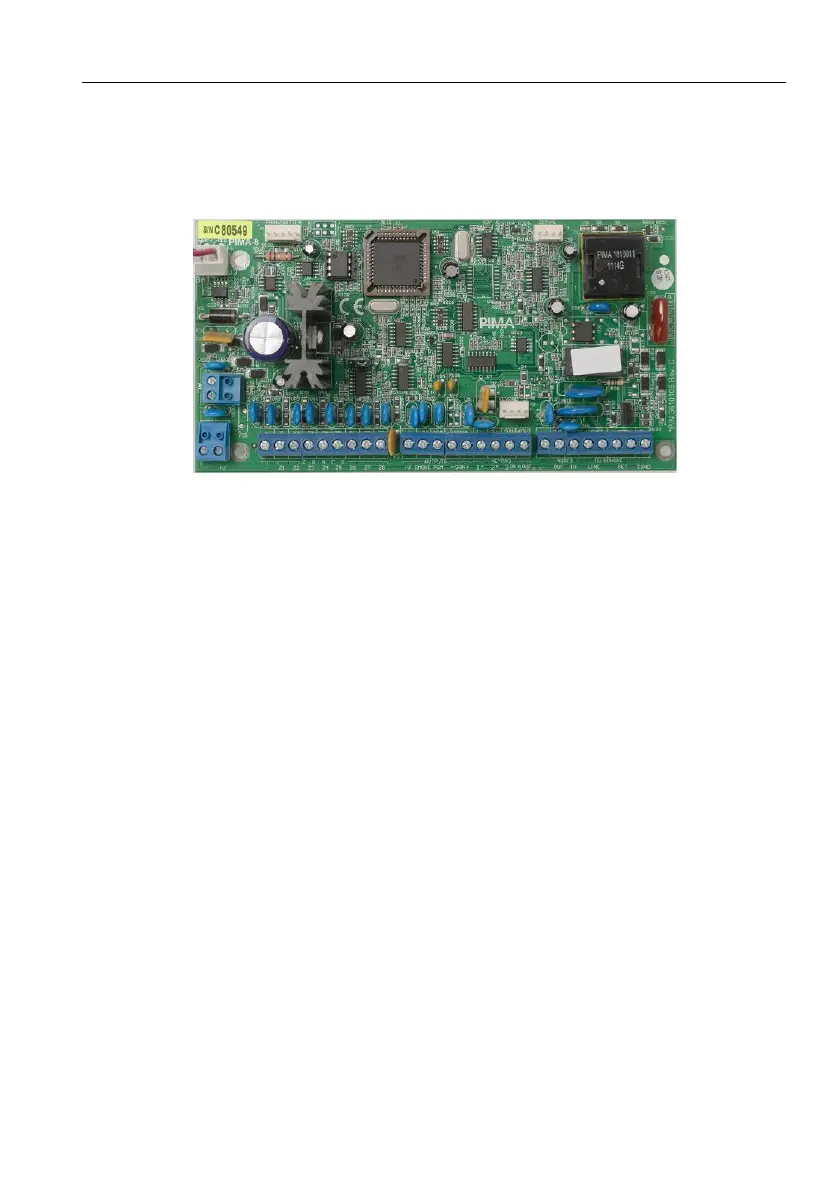

Figure 3. Captain 8 PCB (PIMA-8)
2.1. Main features
 Hybrid system – hardwired and wireless expander (I/O-WN) zones
 The 8 onboard zones can be expanded to 16 by either:
 Zone doubling
 Adding the I/O-WN
 Adding the I/O-8N 8 zone remote expander
 Users: up to 30
 Partitions: up to 4
 Addressable keypads: up 8
 RS-232 channel
 PSTN DC monitoring
 Available extensions:
 SMS-100 communicator
 net4pro network module
 RFID tags (via the RD-200)
 I/O-R relay expander

Pima Captain 8 Specifications

General

Brand	Pima
Model	Captain 8
Category	Security System
Language	English
