Pima Captain 8 Installation Guide

Hunter-Pro Series
19

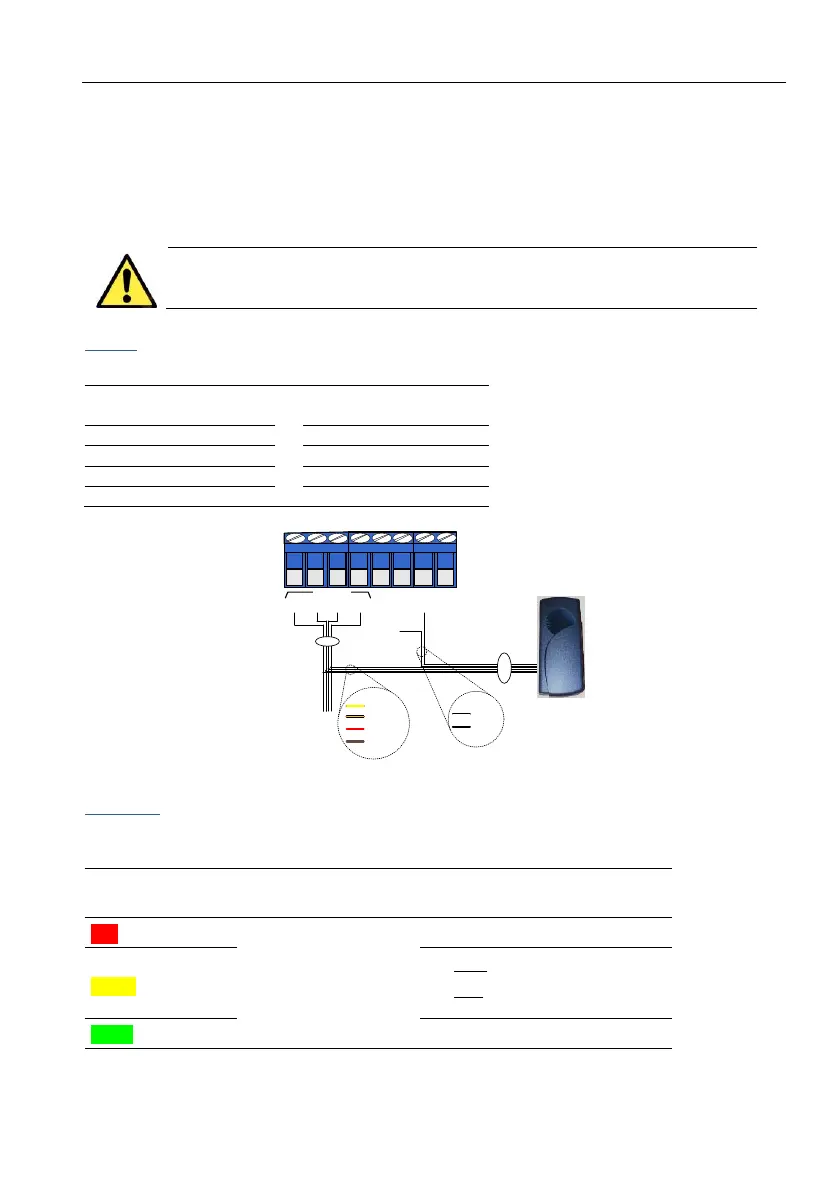

1.5.12. RD-200 RFID reader
RD-200 is a standalone RFID (Radio Frequency Identification) proximity reader that can be
connected to the Hunter-Pro Series systems and be used to arm the control panels to all arming
modes, and disarm it.
The reader interfaces the control panel over the BUS.
The RD-200 cannot be used with partitions, because its ID is zero!
Wiring
Connect the RD-200 to the control panel as described in the next table and diagram.
“KEYPAD”
terminals
RD-200
Tamper switch
1 -
Brown
PCB
RD-200
2 +
Red
TMPR1
White
3 IN
Orange
GND (-)
Black
4 OUT
Yellow
Diagram 14. RD-200 wiring
The LEDs
The RD-200 has three LEDs, Red, Yellow & Green, each gives indications on a different arming
mode see the next table for their behavior:
LED
Arming
mode
Illuminates when…
Flashes when…
Red
Full
The system is armed
Exit delay in progress
Yellow
Home 1
 Slow: exit delay in progress
 Fast: one or more zones are
open (the panel is disarmed)
Green
Home 2
Exit delay in progress
TMPR2
TMPR1
ON
/
OFF
ALRM
KEYPAD
-
+
IN OUT
1 2 3 4
BUS
(-)
Control panel
Yellow
Orange
Red
Brown
White
Black
RD-200
