1.5.9. The BUS
PIMA's remote expanders have two terminal blocks for connecting to the BUS braid: "lower" and
"upper", front look. Both have four terminals, numbered 1-4. When the BUS overall length is up to
500m, the connection is done via the "lower" terminals see the next diagrams.
To extend the BUS over 500m, connect the first peripheral to the "upper" terminals to serve as a
buffer, and enable to extend the BUS.

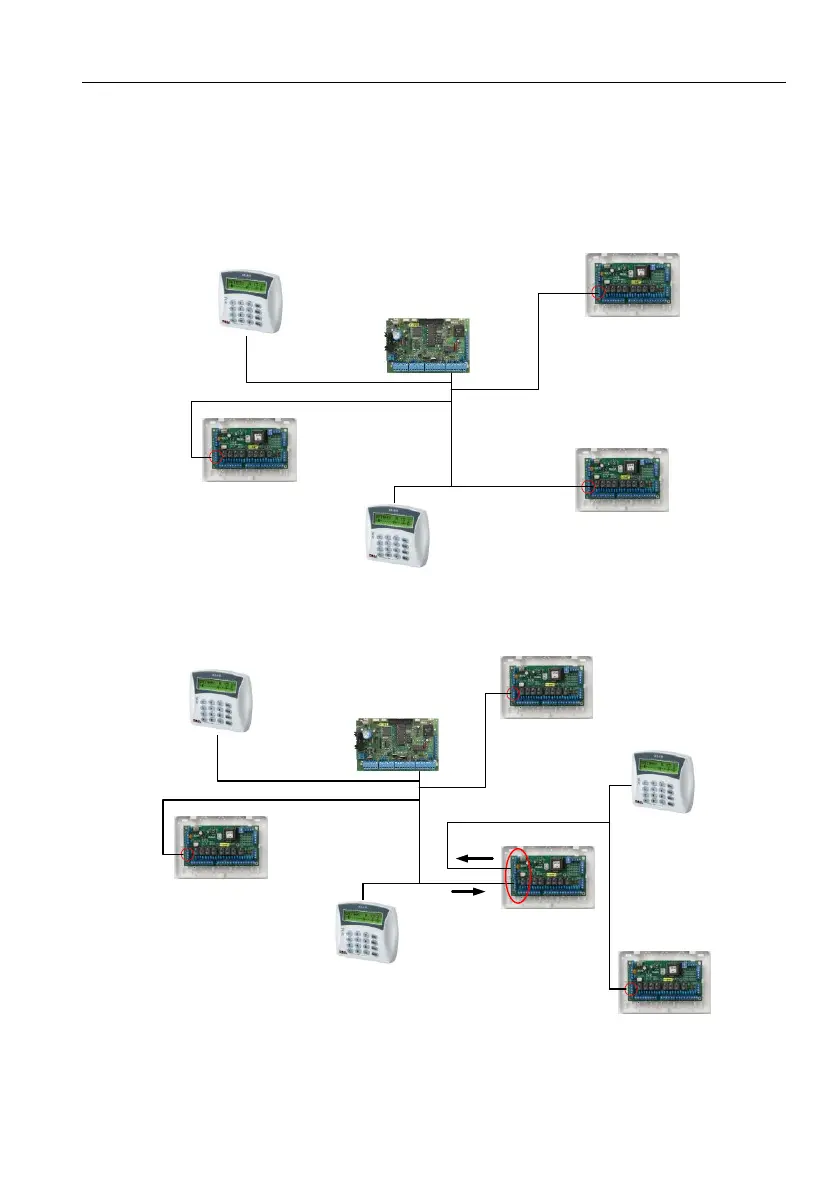

Diagram 10. Up to 500m long BUS
Diagram 11. Extending the BUS over 500m
Expander
Expander
Expander
Control panel
Keypad
BUS
Keypad
Expander
Expander
Expander
Control panel
Keypad
BUS
Keypad
Expander
Keypad
Extension
