2.54
9930588 R02 - 2017-2020 RZR 900 900/S 900/S4 1000/S 1000/S4 Service Manual
© Copyright Polaris Industries Inc.

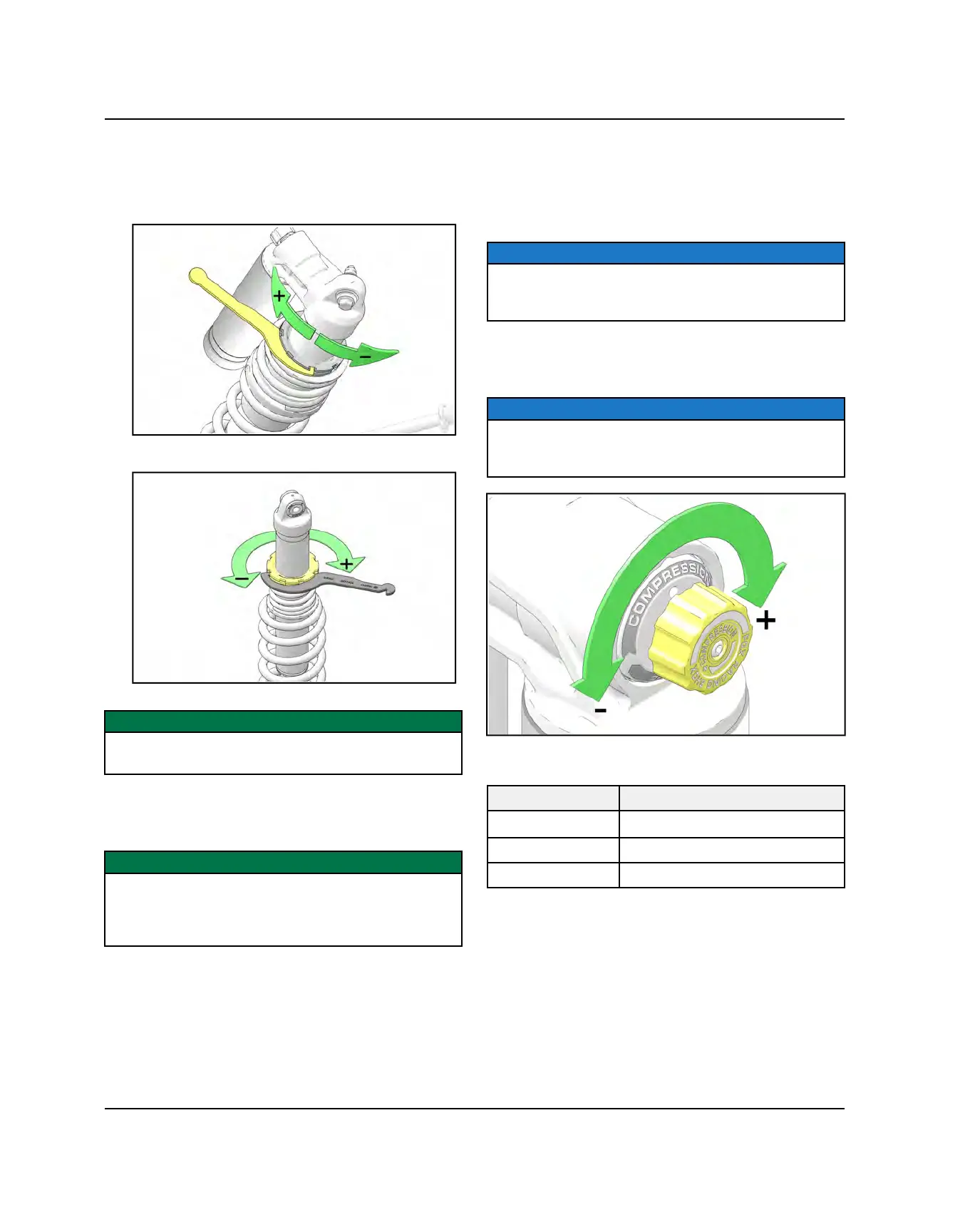

3. Turn the lower adjustment ring clockwise (+) to
increase ride height or counter-clockwise (-) to
decrease ride height.
Piggyback Shock
Mono Shock
IMPORTANT
DO NOT increase the spring adjustment by more than
one inch (25.4 mm) over the factory setting.
4. Once you have obtained the correct ride height, hold
the lower adjustment ring while tightening the upper
adjustment ring to lock them in place.
IMPORTANT
Always return the spring to the factory setting after the
load is removed from the vehicle. The increased
suspension height will negatively impact vehicle
stability when operating without a load.
SHOCK COMPRESSION ADJUSTMENT
(FOX)
The compression damping adjustment is located on the
shock ‘Piggyback’ reservoir of each shock. Damping
adjustments can be made without using any tools.
NOTICE
When the adjuster knob is turned counter-clockwise
until it stops, the damping is in the fully open position
(softest).
Turn the adjuster knob clockwise to increase
compression damping. Turn the adjuster knob counter-
clockwise to decrease compression damping.
NOTICE
The recommended factory setting for the front and rear
shocks are provided in the following compression
adjustment tables.
COMPRESSION ADJUSTMENT TABLE
SETTING COMPRESSION DAMPING
Softest
Full counter-clockwise position
FACTORY 12 clicks from closed
Firmest 2 clicks from closed
MAINTENANCE
