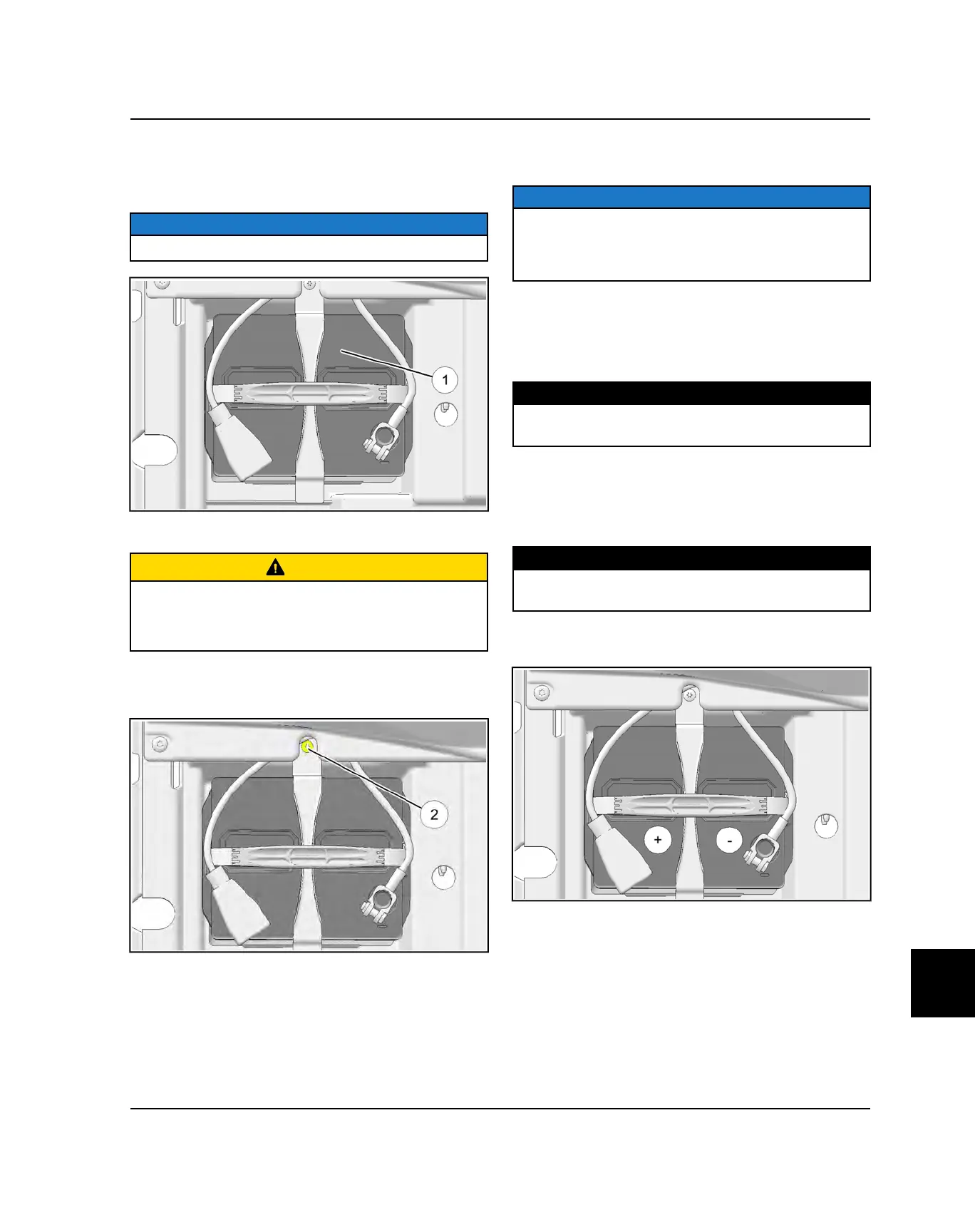

BATTERY
BATTERY REMOVAL
1. Remove the driver’s seat to access the battery
q
.
NOTICE
Battery is located under left rear seat on RZR 4 900.
2. Disconnect the black (negative) battery cable.
CAUTION
To reduce the chance of sparks: Whenever removing
the battery, disconnect the black (negative) cable first.
When reinstalling the battery, install the black (negative)
cable last.
3. Disconnect the red (positive) battery cable.
4. Remove the battery hold-down bracket
w
.
5. Lift the battery out of the vehicle.
BATTERY INSTALLATION
NOTICE
Using a new battery that has not been fully charged can
damage the battery and result in a shorter life. It can
also hinder vehicle performance. Refer to Battery
Charging page 2.58 before installing the battery.
1. Ensure the battery is fully charged.
2. Place the battery in the battery holder and secure
with hold-down bracket. Torque bracket fastener to
specification.
TORQUE
Battery Hold-Down Bracket:
8 ft-lb (11 Nm)
3. Coat the terminals with dielectric grease or petroleum
jelly.
4. Connect and tighten the red (positive) cable(s) first.
Torque fasteners to specification.
TORQUE
Battery Terminal Fasteners:
60 in-lb (7 Nm)
5. Connect and tighten the black (negative) cable(s)
last.
6. Verify that cables are properly routed and reinstall the
driver’s seat.
