9.16
9930588 R02 - 2017-2020 RZR 900 900/S 900/S4 1000/S 1000/S4 Service Manual
© Copyright Polaris Industries Inc.
FRONT SUSPENSION

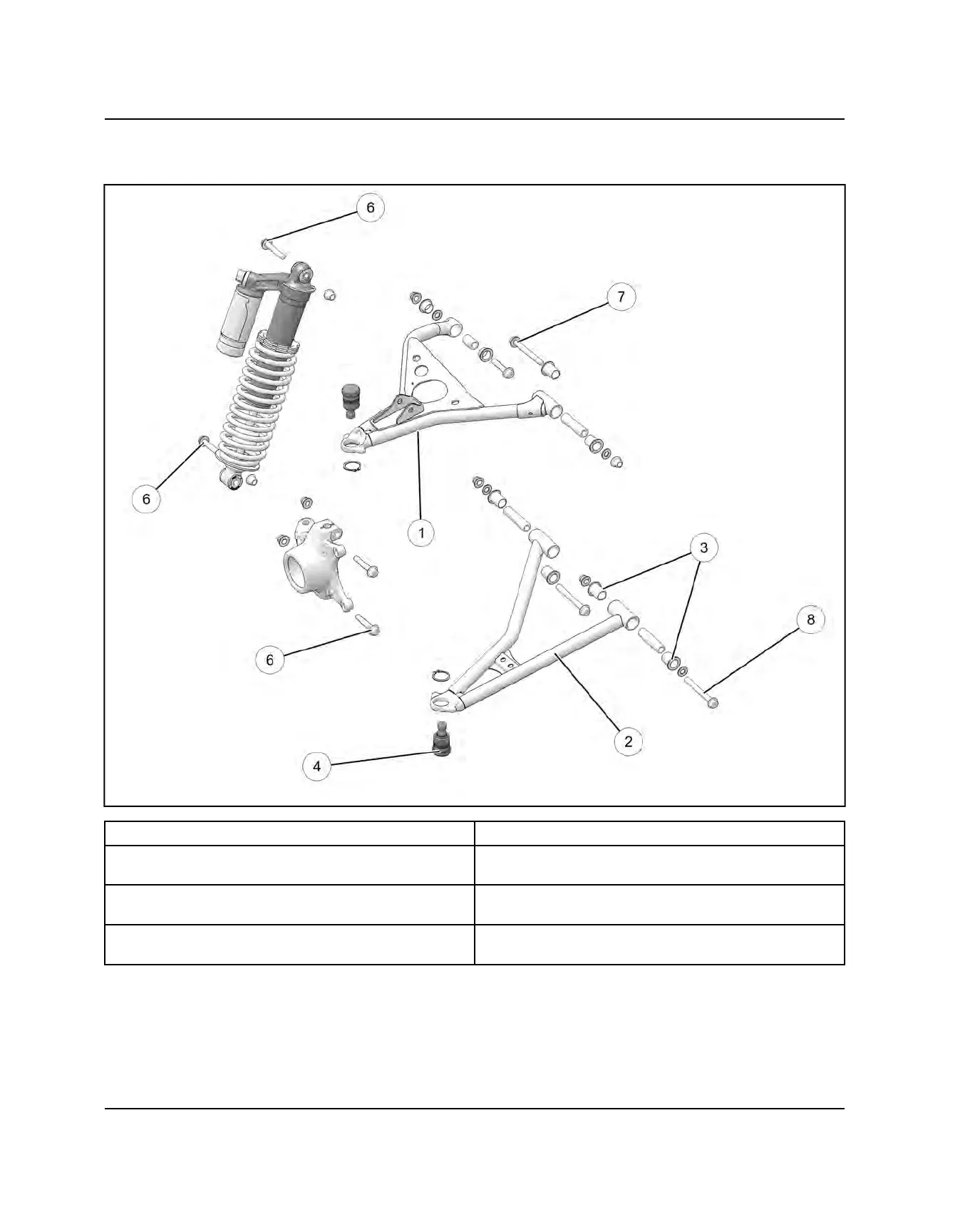

FRONT SUSPENSION ASSEMBLY VIEW
q
Upper A-arm
t
Shock Assembly
w
Lower A-arm
y
Shock Fasteners
42 ft-lb (57 Nm)
e
Bushings
u
Ball Joint Fasteners
42 ft-lb (57 Nm)
r
Ball Joint
i
Control Arm Bolt
42 ft-lb (57 Nm)
STEERING / SUSPENSION
