9930588 R02 - 2017-2020 RZR 900 900/S 900/S4 1000/S 1000/S4 Service Manual
© Copyright Polaris Industries Inc.
6.19
MOVEABLE SHEAVE BUSHING
INSPECTION

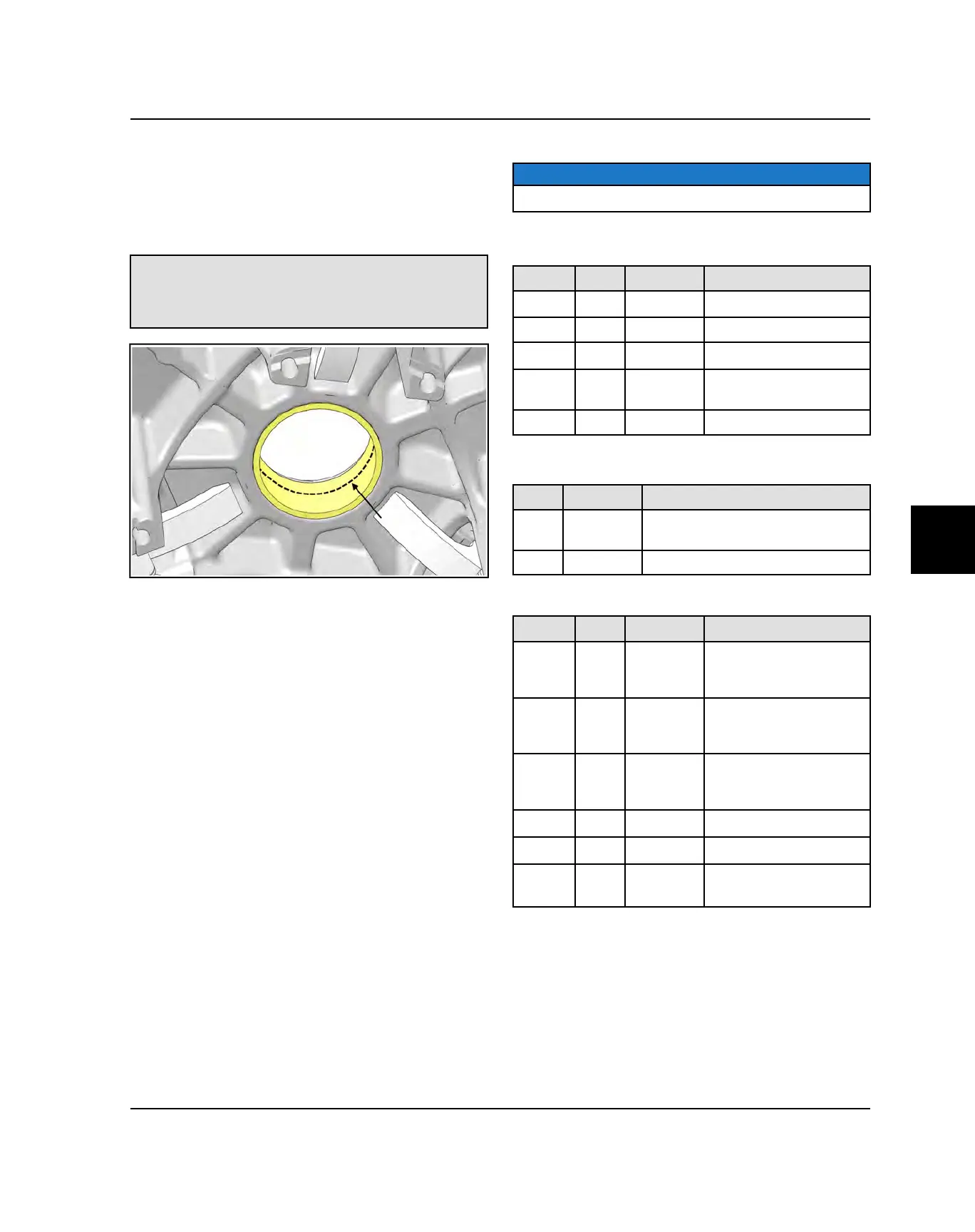

Inspect the Teflon™ coating (arrow) on the moveable
sheave bushing. Inspect both sheaves for signs of wear,
grooving or cracking. De-glaze sheave surfaces with a
3M™ Scotch-Brite Pad if needed.
Moveable Sheave Bushing Inspection:
Replace the cover bushing if more brass than Teflon™
is visible on the bushing. Refer to bushing replacement
in this chapter.
BUSHING SERVICE
NOTICE
Special Tools Required
EBS CLUTCH BUSHING TOOL KIT - 2201379
ITEM
QTY.
PART # TOOL DESCRIPTION
A, B
1 5132027 EBS Puller Tool
C 1 5132501 EBS Puller Nut
D 1 5132029
EBS Main Adapter
E 1 5132028
EBS Bushing Removal
Tool Instructions
–
1 9915111 Instructions
ADDITIONAL SPECIAL TOOLS
QTY.
PART # TOOL DESCRIPTION
1
2871226
Clutch Bushing Replacement Tool
Kit
1 2870386 Piston Pin Puller
*Clutch Bushing Replacement Tool Kit (PN 2871226)
ITEM
QTY.
PART # TOOL DESCRIPTION
#2 1 5020628
P-90 Drive/Driven
Clutch Bushing Install
Tool
#3 1 5020629
Drive Clutch Cover
Bushing Removal
/Installation Tool
#5 1 5020631
P-90 Driven Clutch
Cover Bushing
Removal Tool
#8 1 5020632
Main Puller Adapter
#9 1 5010279
Adapter Reducer
#10 1 5020633
Number Two Puller
Adapter
PVT SYSTEM
