Polaris RZR S 1000 2019 User Manual

10
9930588 R02 - 2017-2020 RZR 900 900/S 900/S4 1000/S 1000/S4 Service Manual
© Copyright Polaris Industries Inc.
10.5
RZR 900 / 1000
q

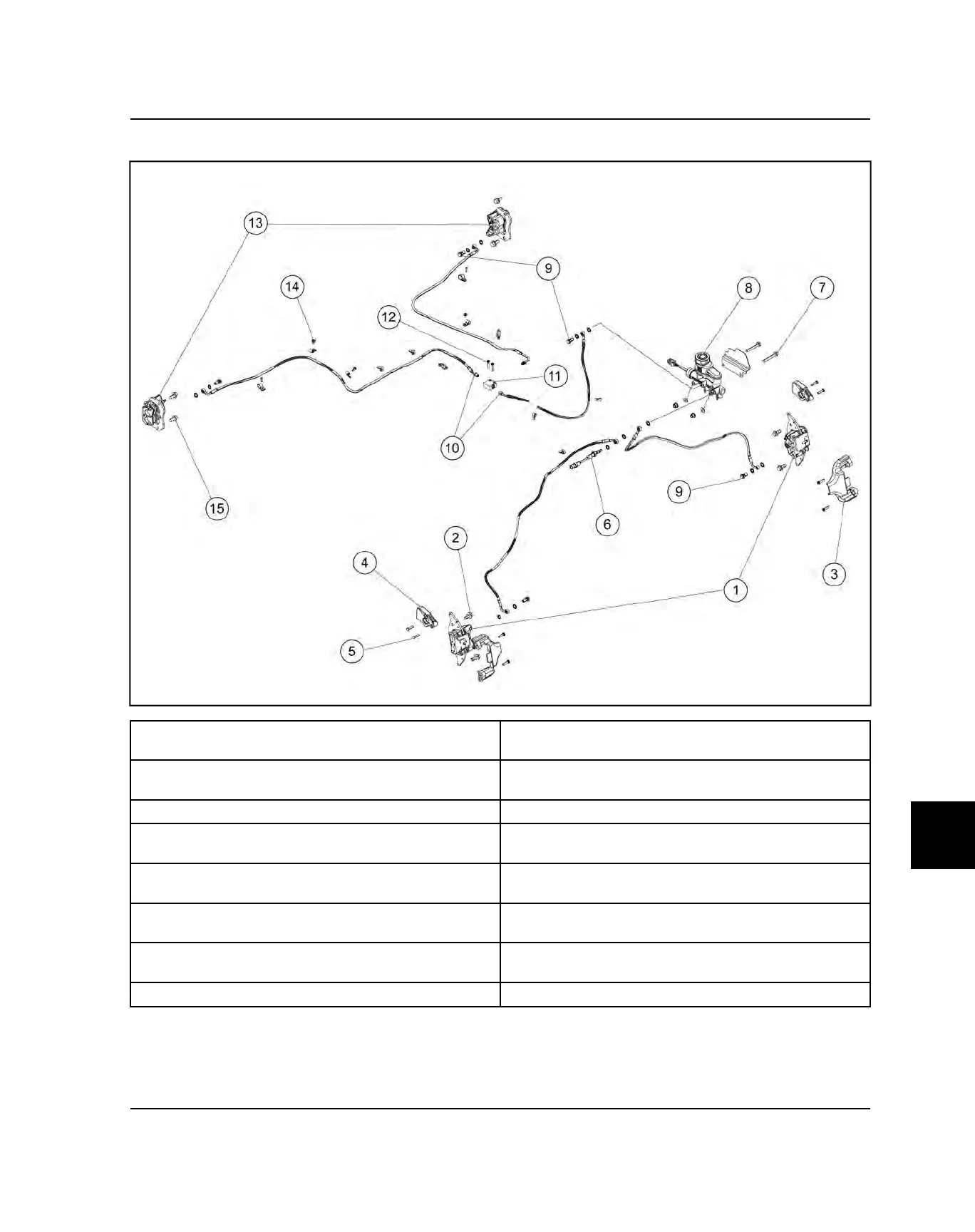

Front Caliper
o
Banjo Bolt
15 ft-lb (20 Nm)
w
Front Caliper Bolts
30 ft-lb (42 Nm)
a
Brake Fittings
15 ft-lb (20 Nm)
e
Caliper Mount / CV Shield
s
Junction Block
r
Brake Disc Scraper
d
Junction Block Bolts
35 in-lb (4 Nm)
t
Scraper Bolts
7 ft-lb (11 Nm)
f
Rear Caliper
y
Brake Switch
15 ft-lb (20 Nm)
g
Brake Line Retainers
35 in-lb (4 Nm)
u
Master Cylinder Mounting Fasteners
23 ft-lbs (31 Nm)
h
Rear Caliper Bolts
46 ft-lb (62 Nm)
i
Master Cylinder
BRAKE SYSTEM
