9930588 R02 - 2017-2020 RZR 900 900/S 900/S4 1000/S 1000/S4 Service Manual
© Copyright Polaris Industries Inc.
4.11

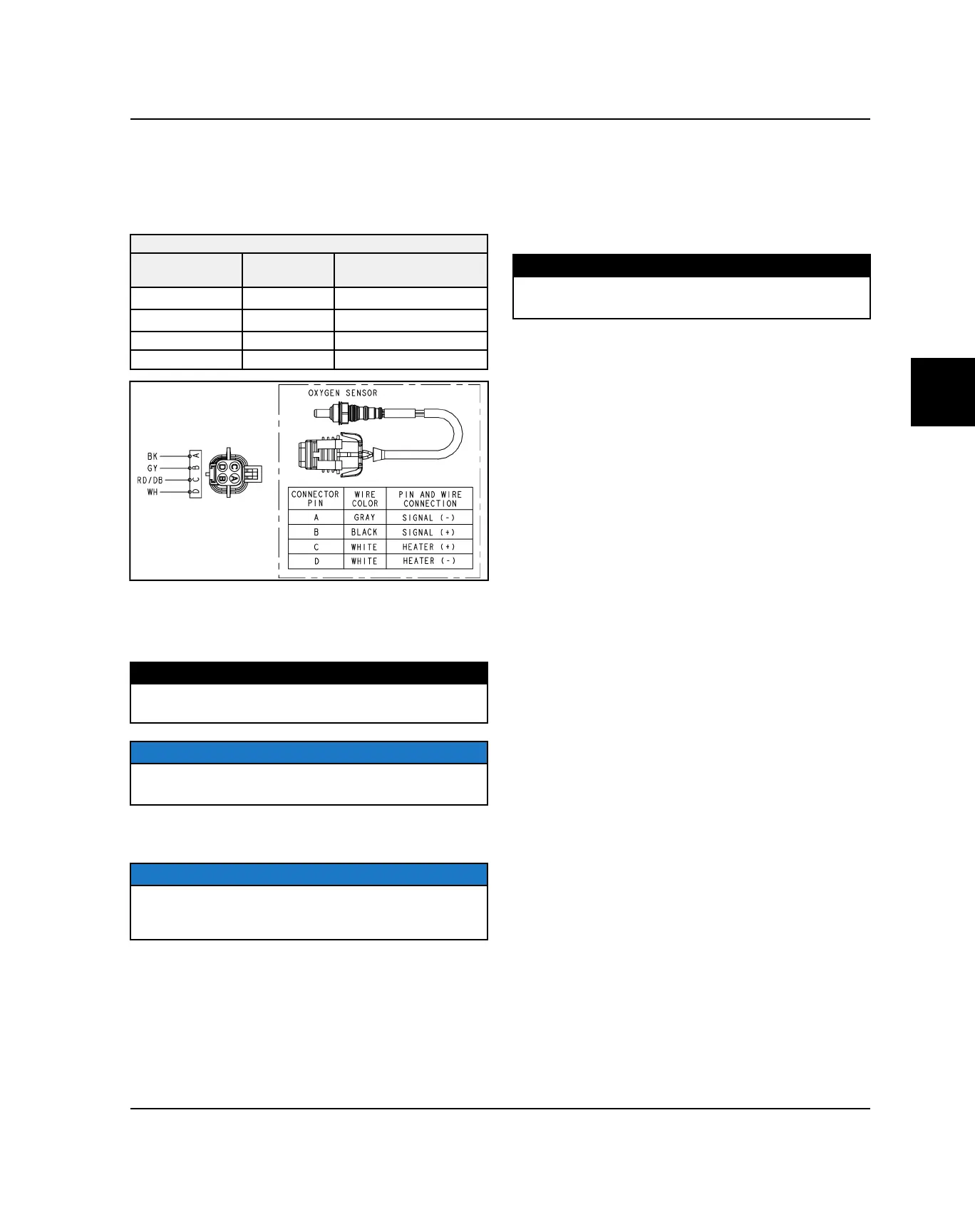

OXYGEN SENSOR (RZR S 1000)
OXYGEN SENSOR INFORMATION
The oxygen sensor, located on the exhaust pipe before
the muffler, uses a 4 wire heated element.
2017+
CONNECTOR
PIN
WIRE
COLOR
PIN AND WIRE
CONNECTION
A
Gray
Sensor Ground
B Black
Sensor Output
C White Heater Power
D White Heater Ground
The sensor element in the oxygen sensor cannot be
tested effectively with static tests. The heater circuit
element in the sensor however, can be tested with an
ohmmeter.
MEASUREMENT
Oxygen Sensor Heater Element Resistance
15.8–18.6 Ohms
NOTICE
This test MUST be performed with the sensor at room
temperature.
First, verify if there are any stored codes for the oxygen
sensor.
NOTICE
The ECU must first run though the O2 sensor time
delay before a trouble code will be set. This may take
several minutes at idle to occur.
Short drive cycles and cold temperatures will both affect
the delay time of the O2 sensor (increases the delay).
The delay time ensures the oxygen sensor heater has
run long enough to provide accurate data.
OXYGEN SENSOR REPLACEMENT
1. Disconnect the harness going to the oxygen sensor.
2. Remove the oxygen sensor from the exhaust pipe.
3. Install new oxygen sensor. Torque sensor to
specification.
TORQUE
Oxygen Sensor:
13 ft-lb (18 Nm)
4. Connect the harness going to the oxygen sensor.
ENGINE ELECTRICAL
