9930588 R02 - 2017-2020 RZR 900 900/S 900/S4 1000/S 1000/S4 Service Manual
© Copyright Polaris Industries Inc.
11.21
ROCKER PANELS / REAR CONSOLE /
FLOOR - 4 900

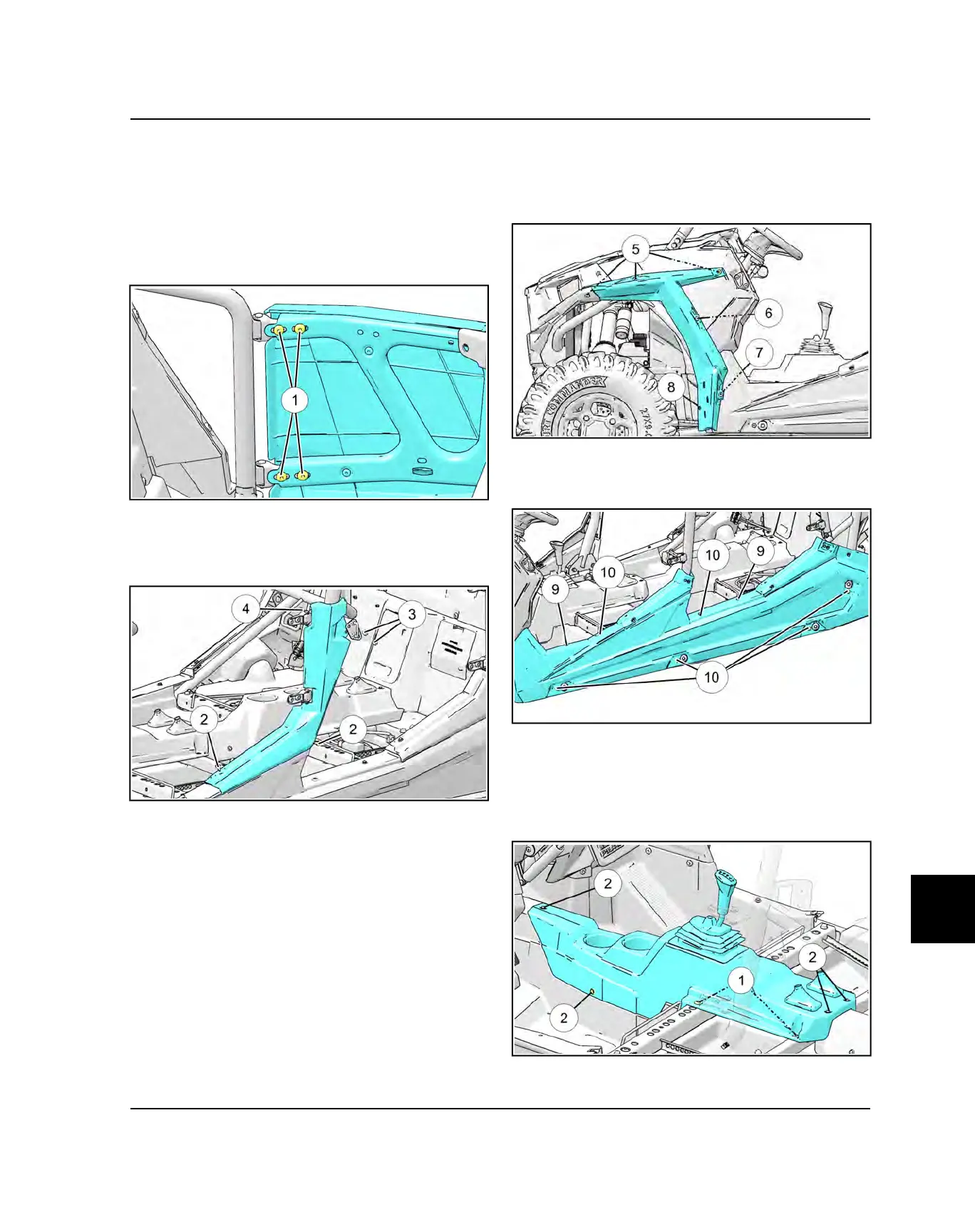

Rocker Panel Removal
1. Remove rear fender flare and rear fender. (Refer to
Rear Fender / Fender Flair Removal page 11.19).
2. Remove the four Torx T40 rear door mounting
fasteners
q
and remove door.
3. Remove two push rivets
w
on the b-pillar. Remove
two Torx T40 door striker fasteners
e
and remove
striker. Remove one Torx T27 fastener
r
retaining
the b-pillar cover and remove cover.
4. Remove three Torx T40 fasteners
t
from top of front
fender flare. Remove two torx T40 fasteners
y
&
u
.
Note length and location of fasteners. Remove push
rivet
i
from front of front fender flare. Remove fender
flare.
5. Remove two push rivets
o
and six Torx T40
fasteners
o
retaining the rocker panel. Remove
rocker panel from the vehicle.
Console and Lower Floor Removal
1. Remove seats and rocker panels (Refer to Rocker
Panel / Console / Floor page 11.20).
2. Remove four Torx T40 screws
q
and five push rivets
w
retaining the front console to the floor.
BODY / FRAME
