6.14
9930588 R02 - 2017-2020 RZR 900 900/S 900/S4 1000/S 1000/S4 Service Manual
© Copyright Polaris Industries Inc.

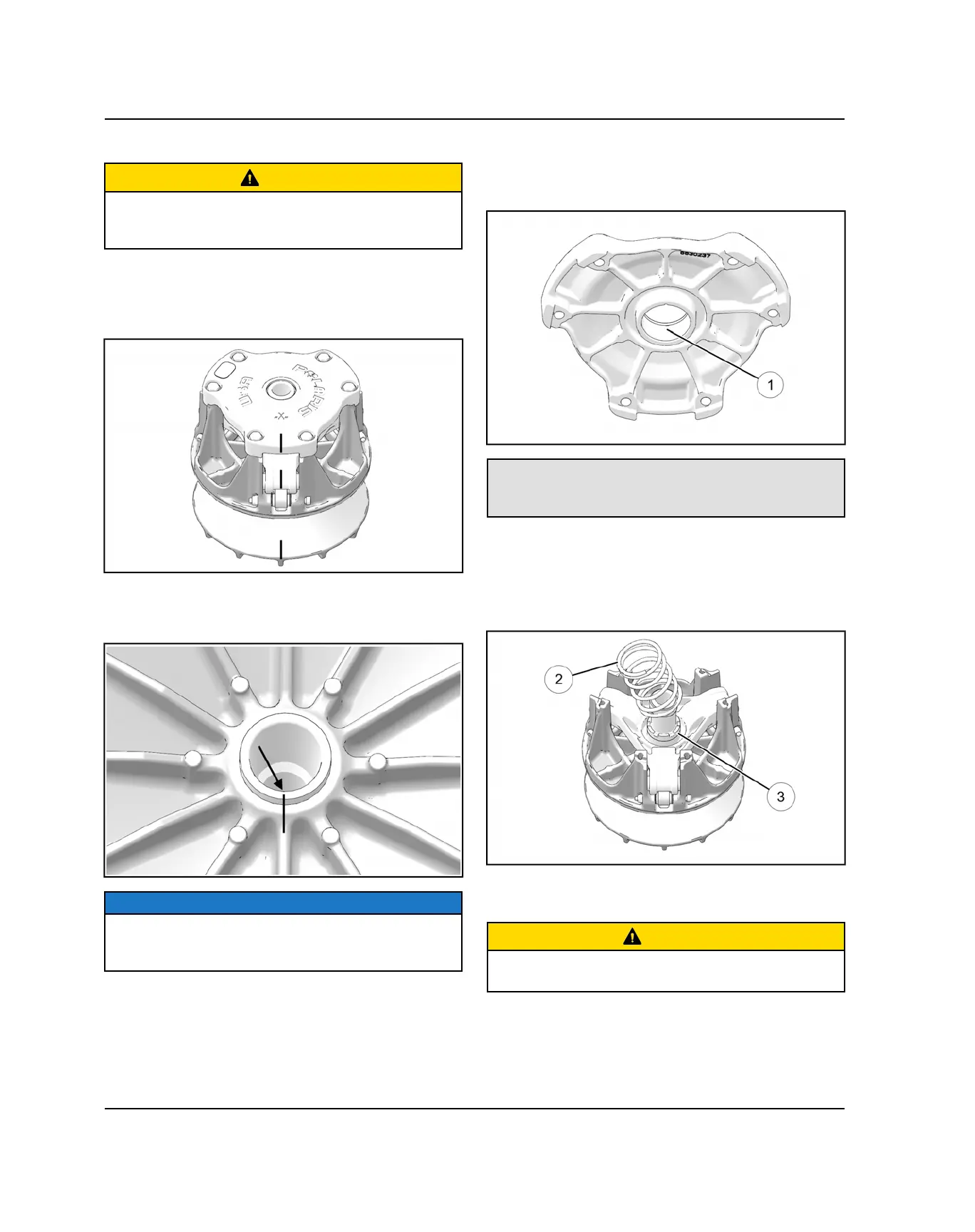

DRIVE CLUTCH DISASSEMBLY
CAUTION
The clutch assembly is a precisely balanced unit. Never
replace parts with used parts from another clutch
assembly!
1. Using a permanent marker, mark the cover, spider,
moveable and stationary sheaves for reference, as
the cast in X's may not have been in alignment before
disassembly.
2. Mark the stationary sheave and clutch shaft to verify
the shaft has not rotated in the sheave after
tightening the spider during clutch assembly.
NOTICE
Upon reassembly, if the reference marks created in
step 2 are not in alignment, the clutch will not be in
balance and the assembly MUST be replaced.
3. Remove cover bolts evenly in a cross pattern and
remove cover plate.
4. Inspect cover bushing
q
. The outer cover bushing is
manufactured with a Teflon™ coating. Wear is
determined by the amount of Teflon™ remaining on
the bushing.
Cover Bushing Inspection:Replace the cover bushing if
more brass than Teflon™ is visible on the bushing.
Refer to bushing replacement in this chapter.
5. Inspect area on shaft where bushing rides for wear,
galling, nicks, or scratches. Replace clutch assembly
if worn or damaged.
6. Remove and inspect the clutch spring
w
. Refer to
“Drive Clutch Spring Inspection”.
7. Remove and inspect limiter spacer(s)
e
. Replace if
necessary.
CAUTION
DO NOT reassemble the drive clutch without the limiter
spacer. Belt life will be greatly reduced.
PVT SYSTEM
