8.20
9930588 R02 - 2017-2020 RZR 900 900/S 900/S4 1000/S 1000/S4 Service Manual
© Copyright Polaris Industries Inc.

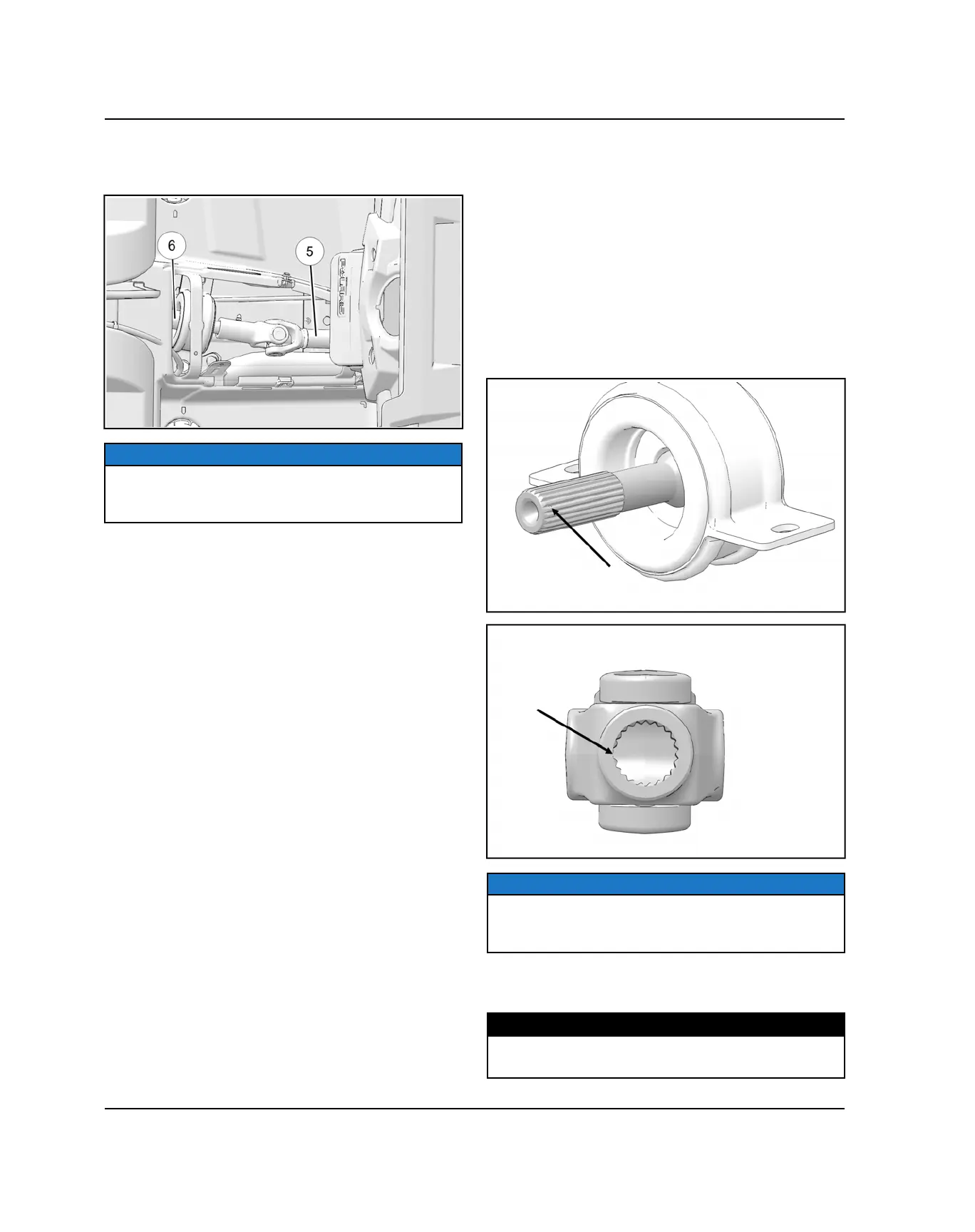

8. While moving the prop shaft support bearing
assembly rearward, slide the front prop shaft
t
off
the rear prop shaft
y
and remove it from the vehicle.
NOTICE
If difficulty is encountered removing the front prop shaft,
first remove the front prop shaft off the splines of the
front gearcase.
9. Remove the support bearing rubber bushing by
pulling it off the rear prop shaft bearing.
10.Pull the rear prop shaft towards the front of the
vehicle to disengage it from the splines on the
transmission snorkel shaft.
11. Remove the rear prop shaft out the left rear of the
vehicle.
PROP SHAFT INSTALLATION
1. Lubricate the transmission snorkel shaft splines with
Polaris All Purpose Grease.
2. Install the rear prop shaft through the left rear of the
vehicle and install the shaft onto the snorkel shaft
splines.
3. Lubricate the front and rear prop shaft mid joint with
Polaris All Purpose Grease.
4. Install the support bushing on the rear prop shaft
bearing.
5. Align the keyways on the front and rear prop shafts as
shown and slide them together.
NOTICE
Paint marks are applied to the front and rear prop shafts
to aid in shaft alignment and installation. Reference
these marks during installation.
6. Install and torque the support bearing fasteners to
specification.
TORQUE
Prop Shaft Support Bearing Fasteners:
33 ft-lb (45 Nm)
FINAL DRIVE
