5
9930588 R02 - 2017-2020 RZR 900 900/S 900/S4 1000/S 1000/S4 Service Manual
© Copyright Polaris Industries Inc.
5.11

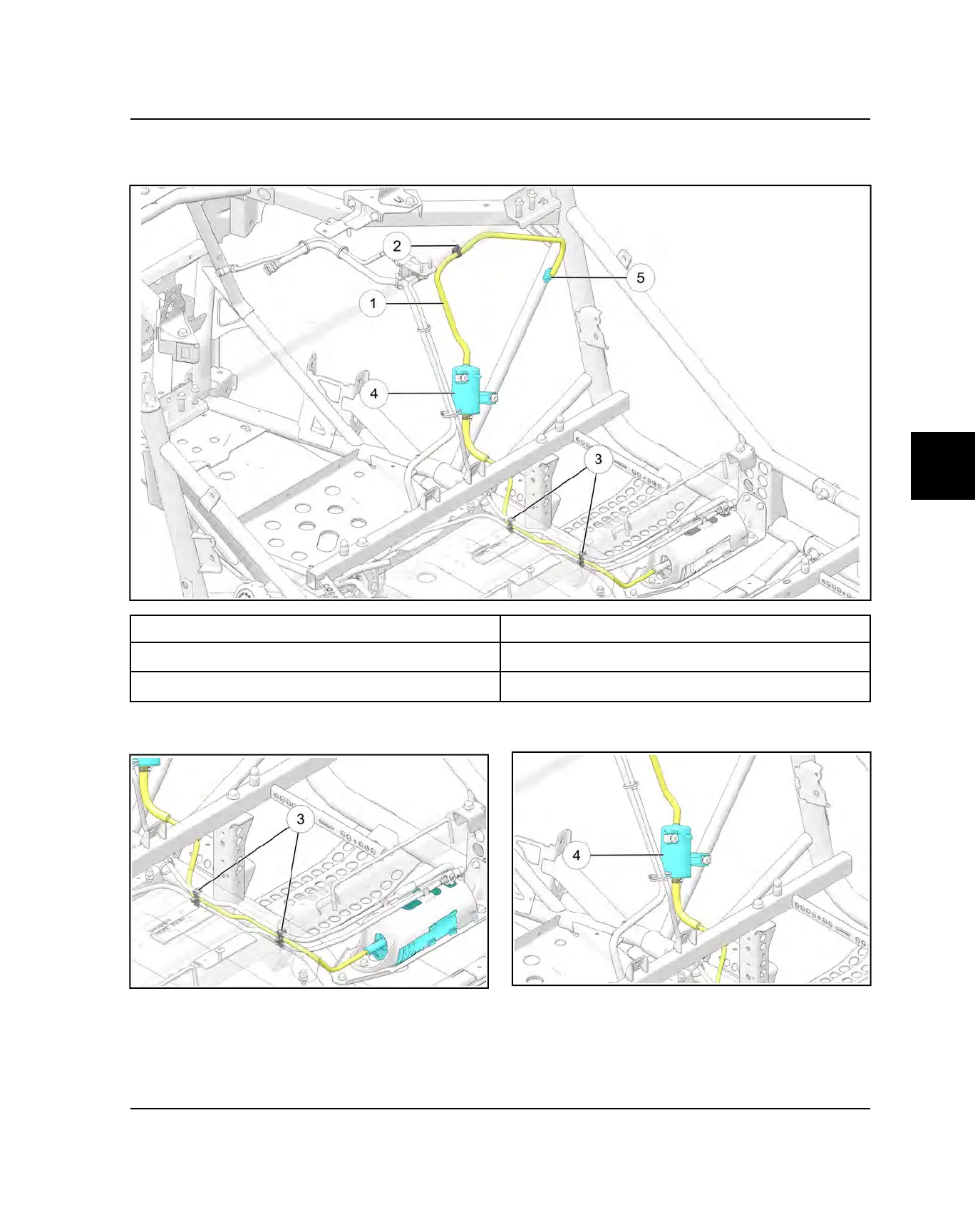

FUEL VENT LINE ROUTING (EVAP
MODELS)
q
Fuel Vent Line
r
Filter Canister
w
Hinge Clip
t
Termination Fitting
e
Triple Clip
1. Secure vent line to carbon canister and attach to two
triple clips on the side of the fuel tank.
2. Route vent line under the seat frame and up to the
filter canister. Secure vent line to bottom of canister.
3. Secure vent line to top of canister. Route vent line up
to the horizontal frame rail and secure with a hinge
clip.
FUEL SYSTEM
To Next Page
