8
9930588 R02 - 2017-2020 RZR 900 900/S 900/S4 1000/S 1000/S4 Service Manual
© Copyright Polaris Industries Inc.
8.25
FRONT GEARCASE / CENTRALIZED HILLIARD

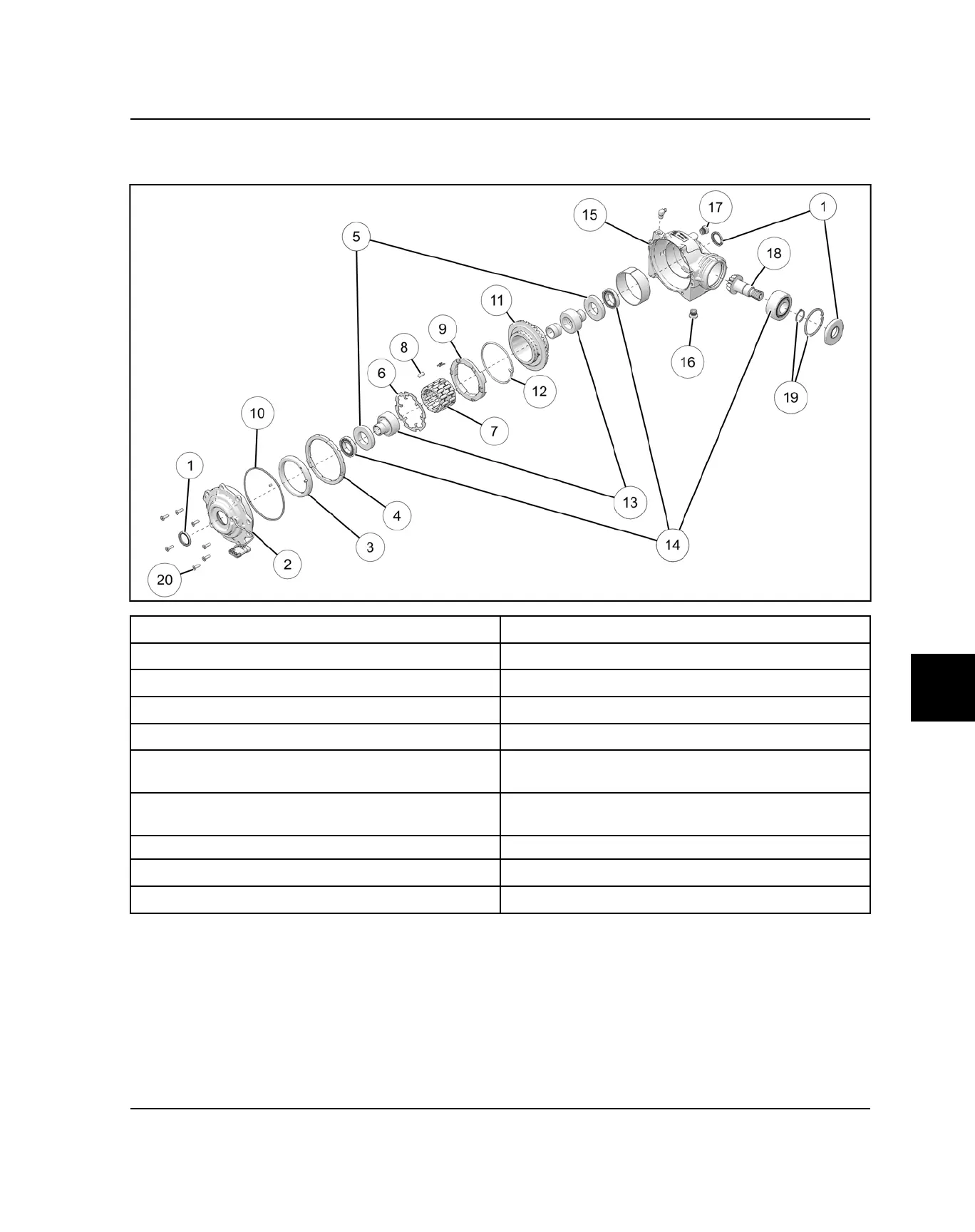

FRONT GEARCASE ASSEMBLY VIEW
q
Seal s
Ring Gear
w
Cover Plate
d
Spring
e
AWD Coil
f
Output Hub
r
Backlash Spacer
g
Bearing
t
Nylon Spacer
h
Gearcase Housing
y
Armature Plate
j
Drain Plug
10 ft-lbs (14 N·m)
u
Roller Cage
k
Fill / Check Plug
10 ft-lbs (14 N·m)
i
Roller
l
Pinion Gear
o
Spring Retainer
1(
Snap Ring
a
O-ring
2)
Cover Plate Screws
FINAL DRIVE
