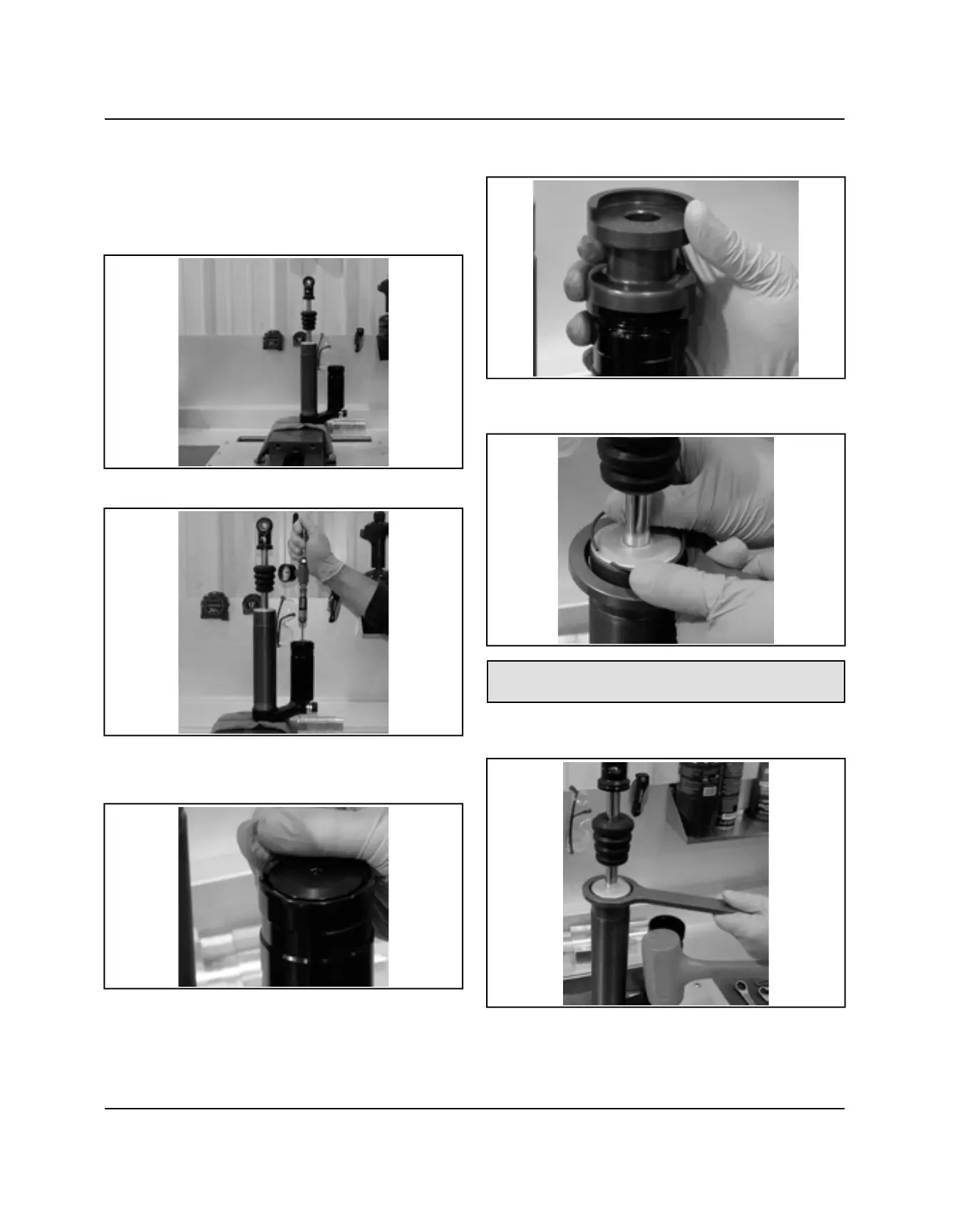

FOX SHOCK DISASSEMBLY
1. Clamp the shock body cap securely in clamp blocks,
shaft side up. Be sure to use SOFT JAWS to prevent
damage to the shock body cap. (Alternately, a clean
towel can be used in the vice jaws to protect the body
cap.)
2. Discharge nitrogen pressure from reservoir chamber.
3. Once nitrogen pressure has been released, depress
reservoir cap and remove retaining ring. Typically a
valve shim can be used.
4. Remove the end cap using the appropriate extractor
tool.
5. Place a bearing cap removal tool around the body
and install retaining ring.
Bearing Cap Removal Tool:
commercially available
6. Tap bearing cap removal tool up with dead blow
hammer.
