9930588 R02 - 2017-2020 RZR 900 900/S 900/S4 1000/S 1000/S4 Service Manual
© Copyright Polaris Industries Inc.
9.9
STEERING ASSEMBLY (EPS)

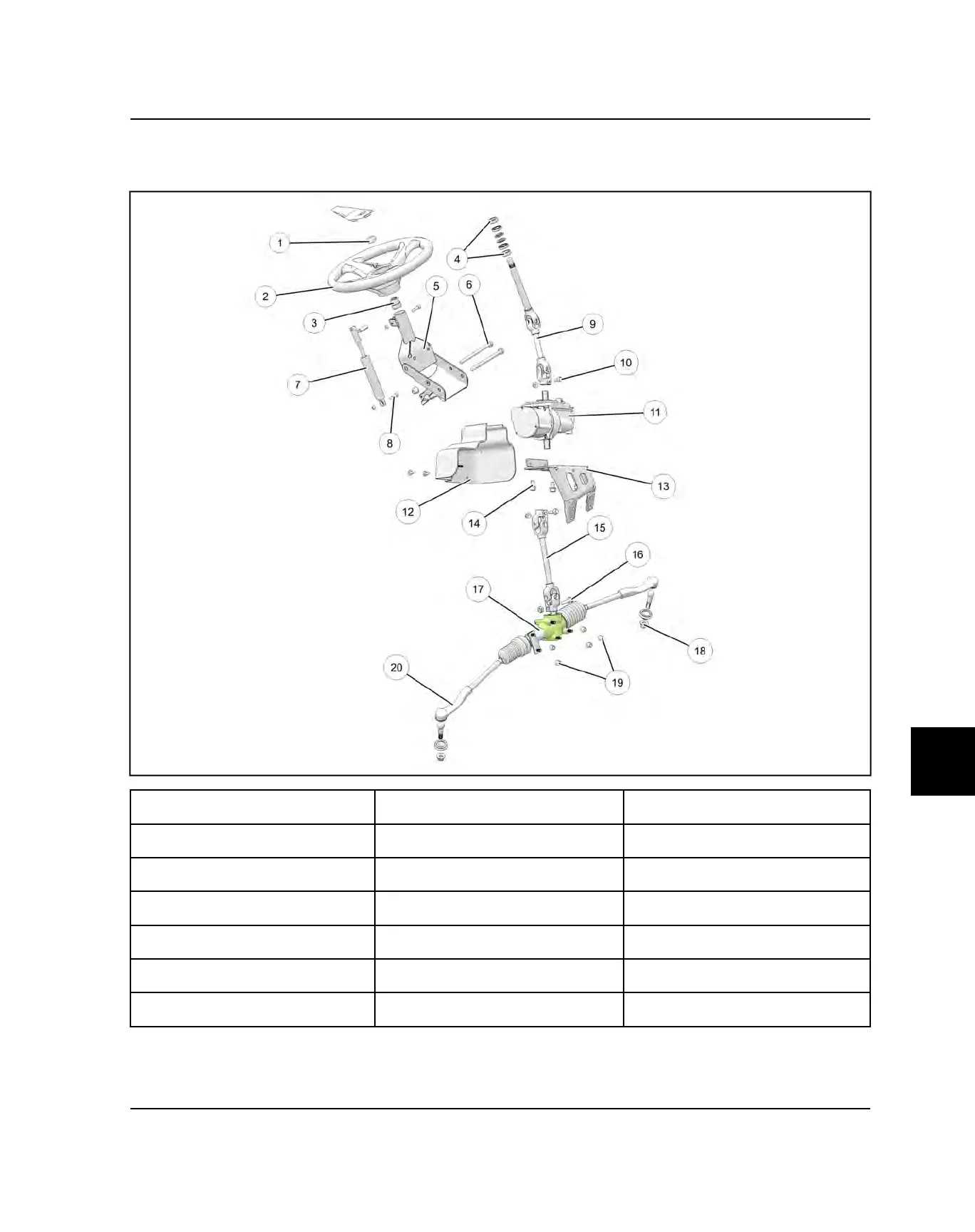

STEERING ASSEMBLY VIEW (EPS)
q
Steering Wheel Nut
i
Shock Fasteners
7 ft-lb (10 Nm)
h
Lower Steering Shaft
w
Steering Wheel
o
Upper Steering Shaft
j
Shaft to Rack Fastener
48 ft-lb (65 Nm)
e
Bushing
a
Shaft to EPS Fasteners
15 ft-lbs (20 Nm)
k
Steering Rack
r
Bearing
s
EPS
l
Tie Rod End Nut
30 ft-lbs (41 Nm) + 90°
t
Steering Pivot
d
EPS Cover
1(
Rack Mounting Fasteners
16 ft-lbs (22 Nm)
y
Pivot Fasteners
40 ft-lb (54 Nm)
f
EPS Mounting Bracket
2)
Tie Rod End
u
Tilt Locking Shock
g
Bracket Fasteners
30 ft-lb (41 Nm)
STEERING / SUSPENSION
