9930588 R02 - 2017-2020 RZR 900 900/S 900/S4 1000/S 1000/S4 Service Manual
© Copyright Polaris Industries Inc.
9.13

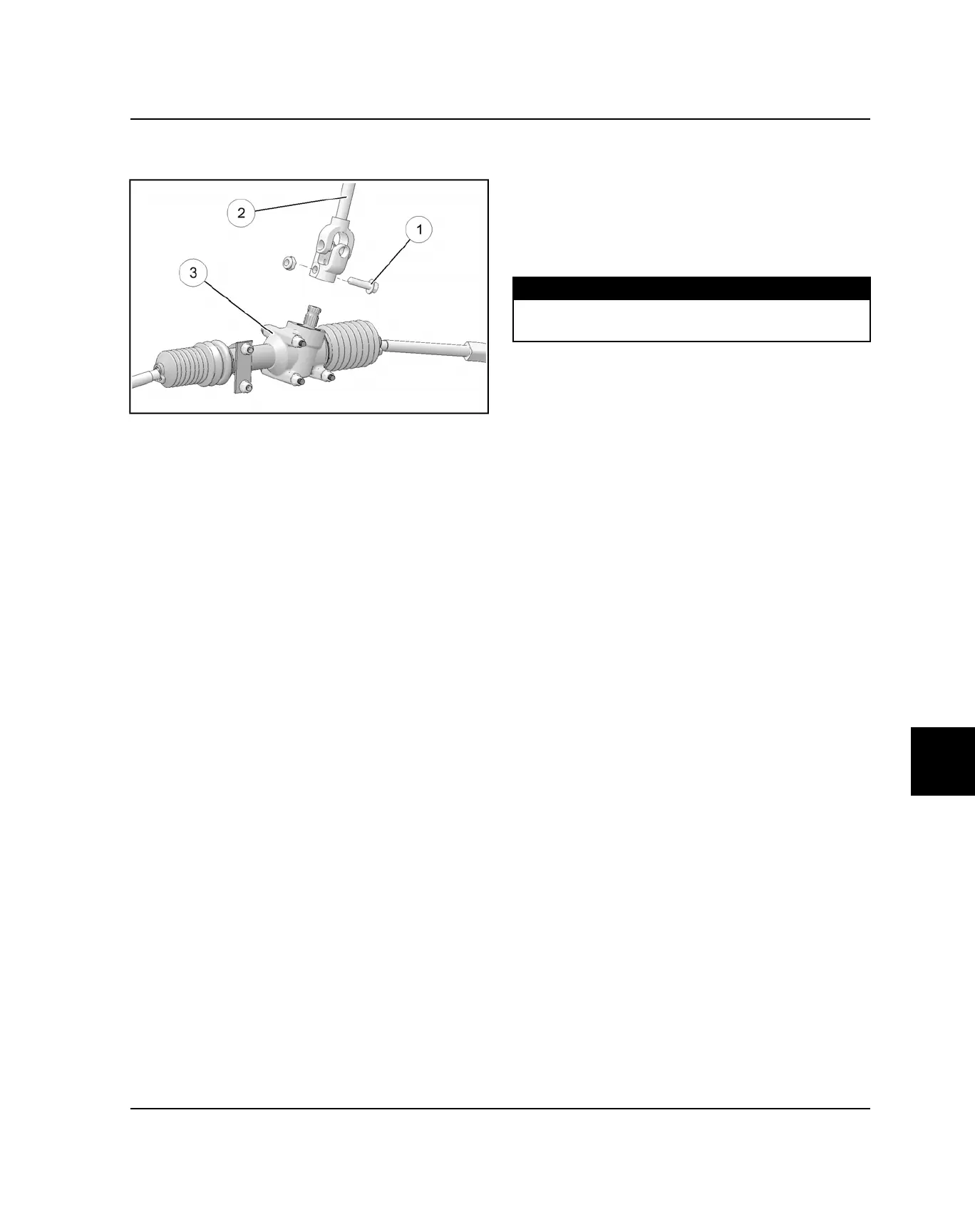

4. Remove the pinch bolt
q
retaining the lower steering
shaft
w
to the steering gear box assembly
e
.
5. Lift up on the shaft and remove it through the floor
panel.
LOWER STEERING SHAFT INSTALLATION
1. Install the lower steering shaft onto the gear box and
align the marks made during step 2 of the “Lower
Steering Shaft Removal (EPS Models)” procedure.
2. Install the pinch bolt that retains the lower steering
shaft to the steering rack assembly and torque to
specification.
TORQUE
Lower Steering Shaft Pinch Bolt:
48 ft-lb (65 Nm)
3. Install the power steering unit and reassemble the
vehicle (see Chapter 8 – Power Steering Unit
Installation page 9.14).
STEERING / SUSPENSION
