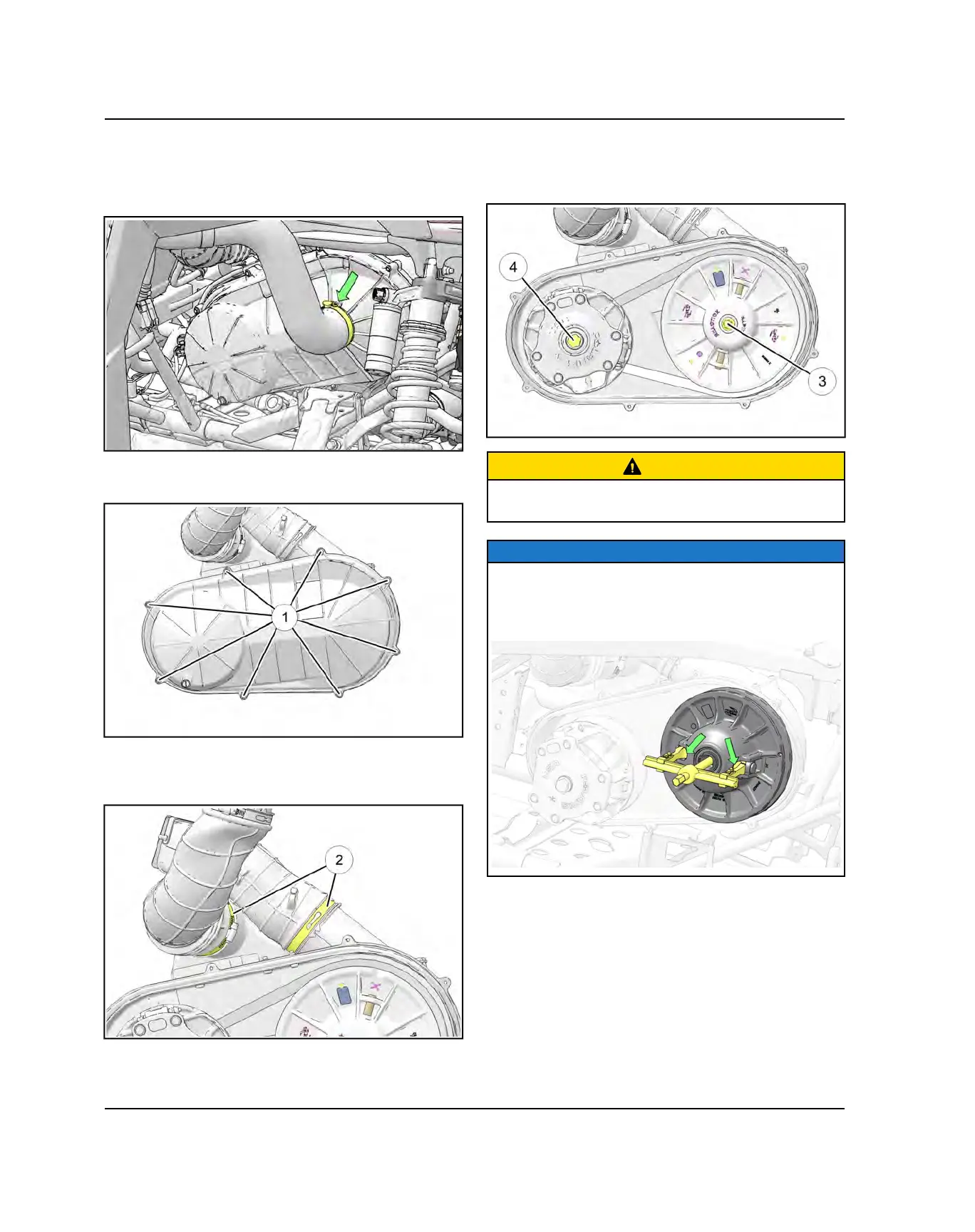

PVT DISASSEMBLY
1. RZR S 1000 / RZR 4 900 ONLY: Loosen the outer
cover intake hose clamp and remove hose from PVT
cover.
2. Remove the eight screws
q
retaining the outer clutch
cover.
3. Remove the PVT intake and exhaust ducts by
loosening the clamps
w
retaining the ducts to the
inner clutch cover.
4. Remove the drive belt. (see Chapter 5 – Belt
Removal (EBS) page 6.10)
5. Remove the Driven Clutch retaining bolt
e
.
CAUTION
Do not strike the driven clutch to free it from the
transmission input shaft. This will damage the clutch.
NOTICE
For MY16 EBS models, if the driven clutch will not
disengage, a commercially found 2–Jaw puller may be
used. Only pull from inside the slider pockets. Pulling
on the sheaves may cause damage to the clutch.
6. Remove the Drive Clutch retaining bolt
r
.
7. Remove the seven fasteners retaining the inner
clutch cover to the engine and transmission.
8. Remove the inner clutch cover from the vehicle.
