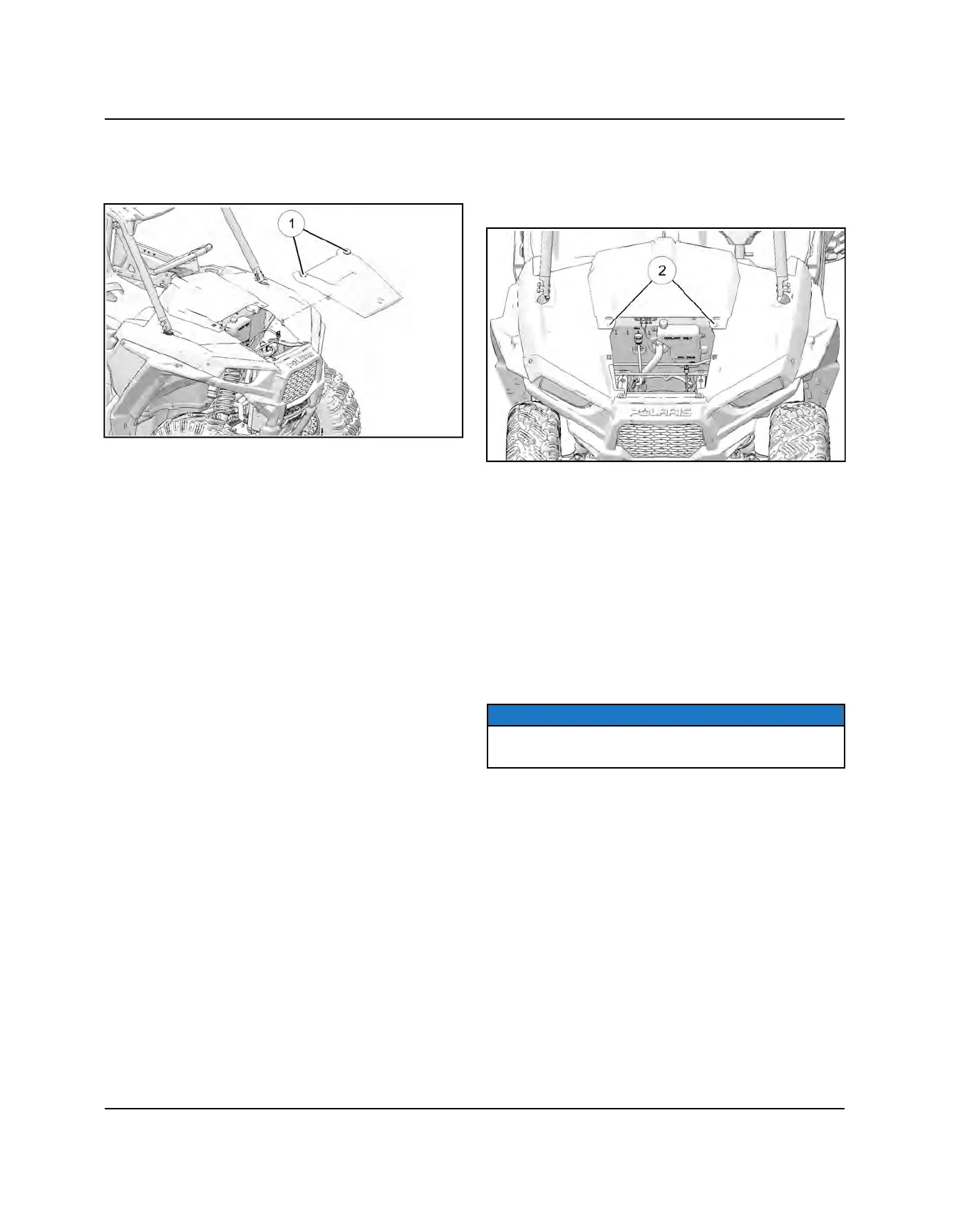

HOOD REMOVAL
1. To remove the hood, turn both 1/4 turn latches
q
to
disengage the rear portion of the hood.
2. Lift rear of hood and slide forward to disengage the
front tabs and remove the hood from the vehicle.
UPPER DASH REMOVAL
1. Remove the hood as previously described.
2. Remove the two T-40 Torx screws retaining the
Upper Dash cover between the front fenders
w
.
3. Disconnect the instrument cluster, AWD switch,
headlight switch, and ignition switch. Note their
location and wire routing. Remove the upper dash.
LOWER DASH REMOVAL
1. Remove the Upper Dash (see Chapter 10 – Upper
Dash Removal page 11.18
2. Remove the two T-40 Torx screws retaining the dash
and the one T-40 retaining the back of the dash to the
bracket.
3. Remove the dash assembly from the vehicle.
NOTICE
The lower dash is also held by clips. Pull the dash
straight out to disengage the clips..
