Testing

1. Disconnect the harness from the hazard switch.

2. Test outputs in both the ON and OFF positions. If any

of the tests fail, replace the switch.

• Move switch to ON. There should be continuity

between switch pins 2 and 3.

• Move the switch to OFF. There should be no continuity

between any switch pins.

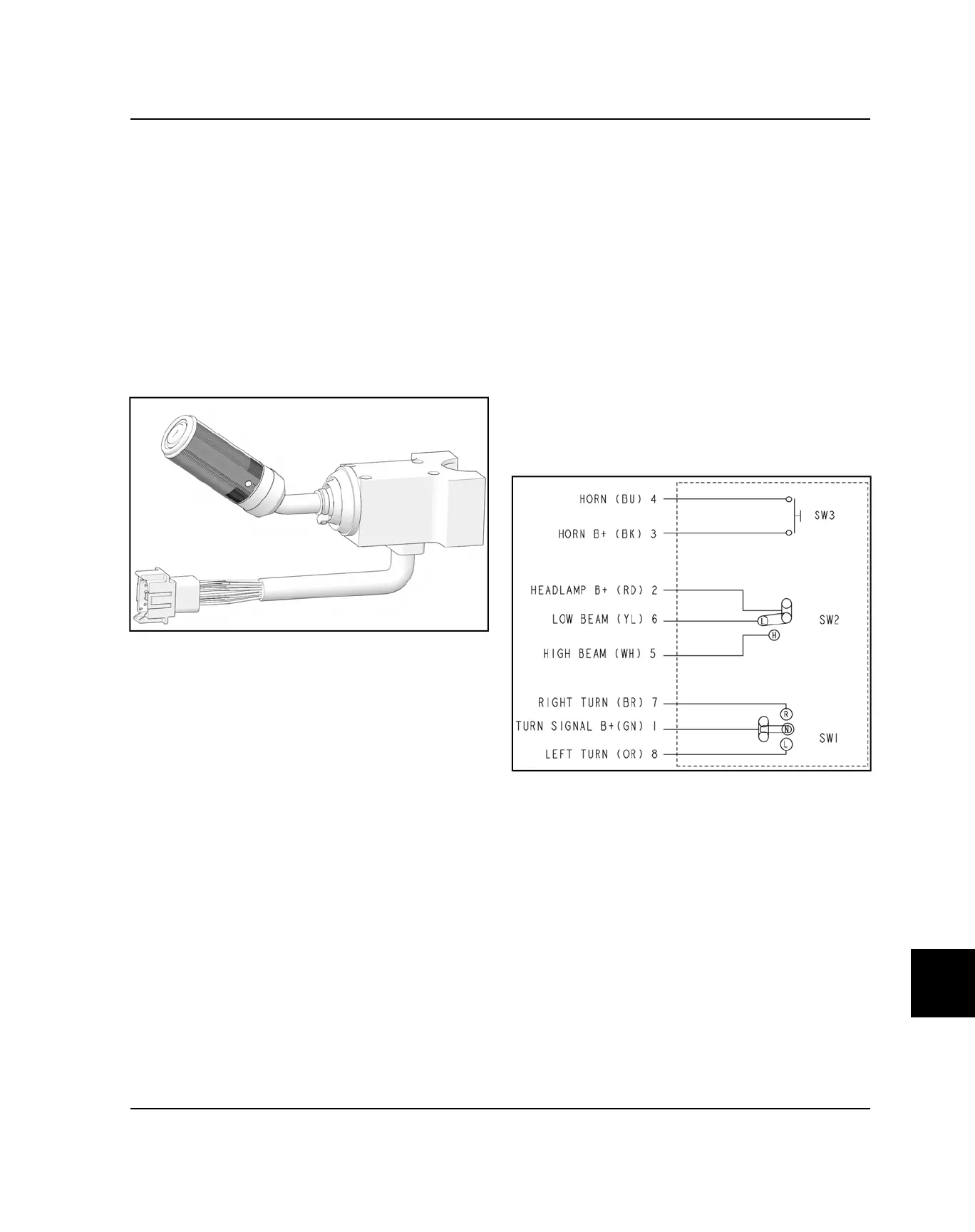

TURN/LIGHTS/HORN SWITCH (INT'L/

TRACTOR)

Testing

1. Disconnect the Turn/Lights/Horn switch by

depressing the connector locks and pulling on the

connector. Do NOT pull on the wiring.

2. Test between the sets of outputs. If any of the tests

fail, replace the switch assembly.

• Turn on the High Beam. There should be continuity

between switch pins 2 and 5.

• Turn on the Low Beam. There should be continuity

between switch pins 2 and 6.

• Turn on the Left Turn Signal. There should be

continuity between switch pins 1 and 8.

• Turn on the Right Turn Signal. There should be

continuity between switch pins 1 and 7.

• Depress the Horn. There should be continuity between

switch pins 3 and 4.
