9930588 R02 - 2017-2020 RZR 900 900/S 900/S4 1000/S 1000/S4 Service Manual

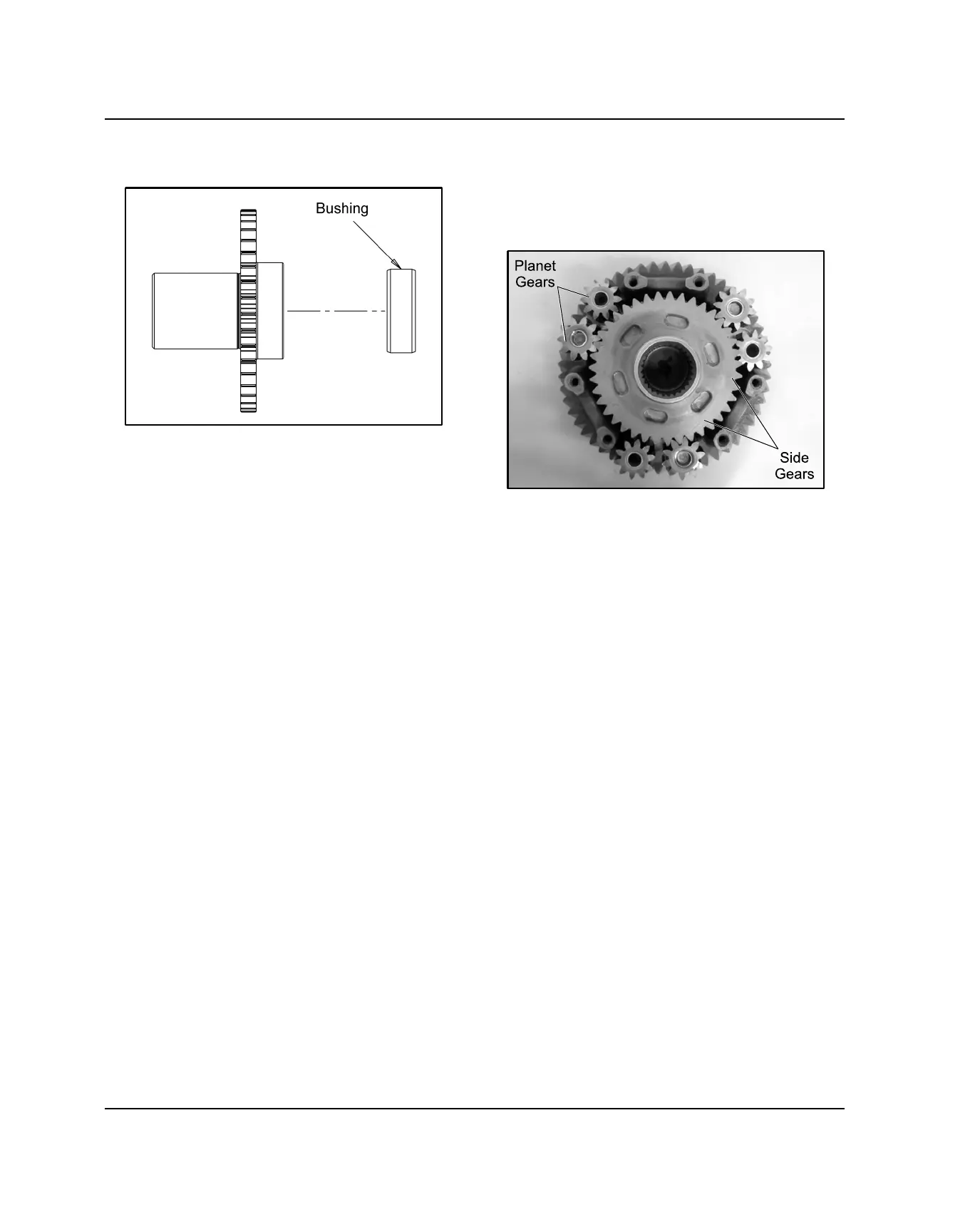

14. Press the new bushing into the side gear until it

bottoms out.

PLANETARY DIFFERENTIAL ASSEMBLY

(TURF MODE MODELS ONLY)

1. Thoroughly clean the differential components.

2. Assemble the side gears and place them onto the

ring gear along with the six planet gears.

3. Align and install the differential cover using the

previously made scribe marks.

4. Apply Loctite® 2760™ to cover screws.

TRANSMISSION
