Chapter 9: Installing, Removing, and Replacing Components
Replacing the Chassis
262 Quantum Scalar i40 and Scalar i80 User’s Guide
Do NOT remove the eight rubber “feet” installed on the bottom
of the library (you will remove them later, in
Step c, Sub-Step c
on page 263, once the library is set on its side).
9 Remove the Y
-tray restraint from the replacement chassis. The
restraint consists of four (4) thumbscrews, a plastic sheet, a small
metal clip, and underneath the plastic sheet, an orange restraint tab
(see Figure
61) located on the top cover of the library.
a Unscrew and re
move the four thumbscrews from the top cover.
Save the thumbscrews for use in restraining the Y-tray in the
chassis you are returning.
b Remove the plastic
sheet and metal clip and discard. You will
not need to use them again.

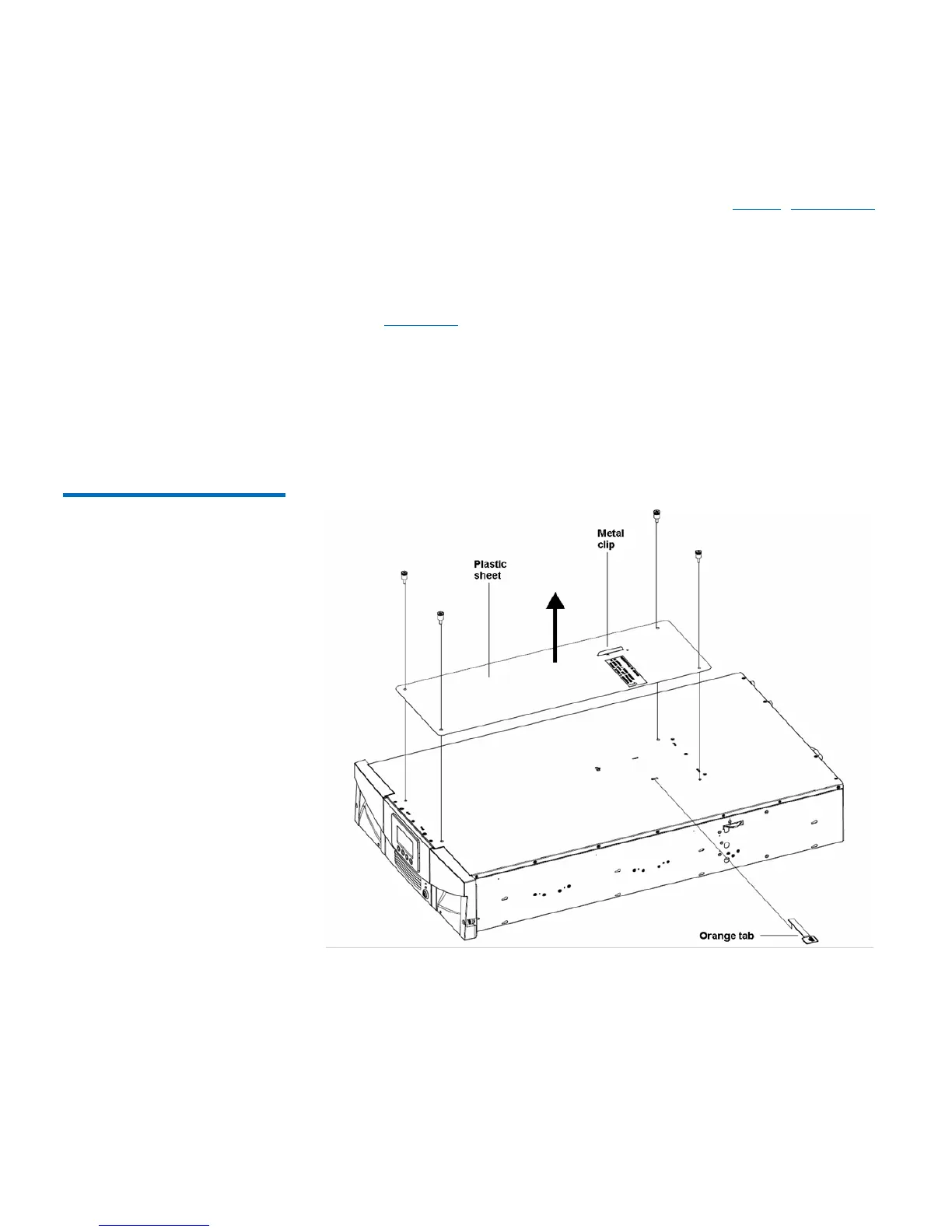

Figure 61 Removing the Y-tray
Restraints
c Remove the orange shipping restraint tab and discard. You will
not need to use it again.

Quantum Scalar i80 Specifications

General

Power supply type	AC
Power requirements	100 – 240V, 50/60Hz
Power consumption (typical)	200 W
Dimensions (WxDxH)	445 x 793 x 264 mm
Media types supported	2x LTO-4
Maximum supported storage capacity	128 TB
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Media type	Tape Cartridge
Form factor	6U
Product type	Storage auto loader & library
Certification	IEC 60950, Class A / FCC part 15, ICES-003, CISPR 22, EN55022 Class A, VCCI, CNS 13438, KN22, AS/NZS CISPR 22, EN61000-3-2, EN61000-3-3 EN55024, KN24 CE, VCCI, GS, FCC, ICES, NRTL, GOST, BSMI, KCC
Product color	Black
Standard interfaces	Fiber Channel

Weight and Dimensions

Weight	23800 g
